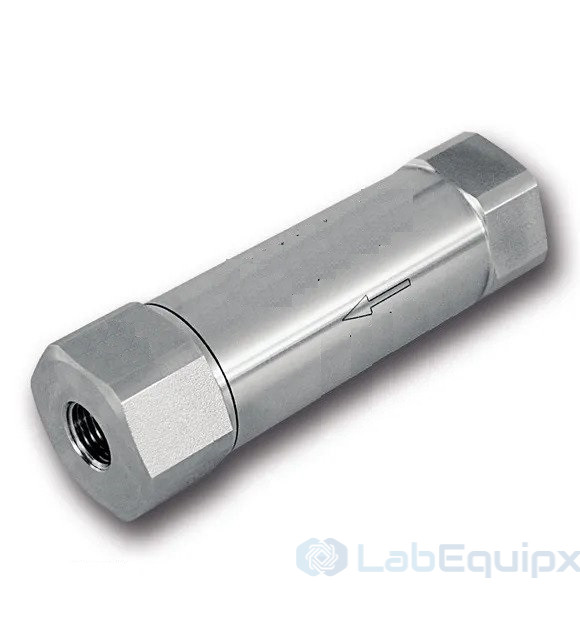

    • Medium/High Pressure Fittings Line Filters SPLF Series

    • Medium Pressure Fittings (20,000 psig /1378 bar)/High Pressure Fittings (60,000 psig /4134 bar) Line Filters SPLF Series.

      Technical Data:

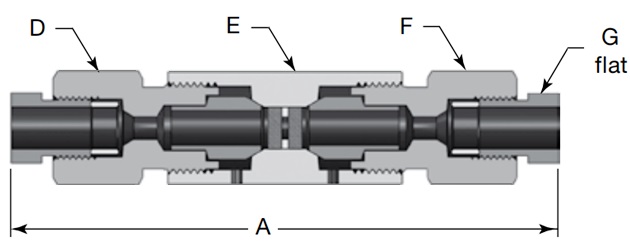

      Tube OD In. Part NO. Dimensions in.(mm)
      A D E F G
      20,000 psig (1378 bar)
      1/4 -SPLF-T4-20K 4.96 (126) 7/8 1 7/8 5/8
      3/8 -SPLF-T6-20K 5.15 (131) 7/8 1 7/8 5/8
      9/16 -SPLF-T9-20K 5.22 (133) 11/8 11/8 11/8 7/8
      3/4 -SPLF-T12-20K 7.84 (199) 13/8 13/8 13/8 13/16
      1 -SPLF-T16-20K 9.14 (232) 13/4 13/4 13/4 13/8
      Tube OD In. Part NO. Dimensions in.(mm)
      A D E F G
      60,000 psig (4134 bar)
      1/4 -SPLF-T4-60K 5.22 (133) 7/8 1 3/8 7/8 5/8
      3/8 -SPLF-T6-60K 5.97 (152) 1 1 3/8 1 13/16
      9/16 -SPLF-T9-60K 7.97 (202) 13/8 11/2 13/8 13/16
      • Medium/High Pressure Fittings Line Filters SPLF Series
    • Medium/High Pressure Fittings Line Filters SPLF Series
      ModelSPLF
      BrandLabEquipx
