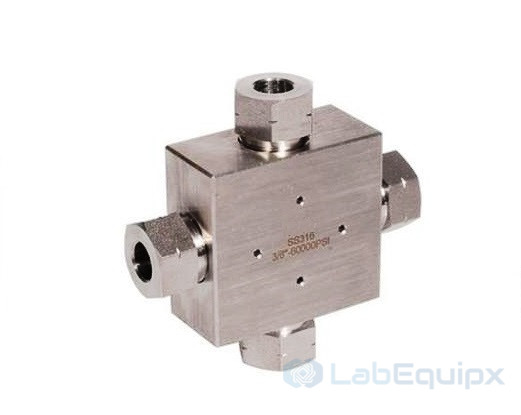

    • Medium/High Pressure Fittings Crosses SPCR Series

    • Medium Pressure Fittings (20,000 psig /1378 bar)/High Pressure Fittings (60,000 psig /4134 bar) Crosses SPCR Series.

      Technical Data:

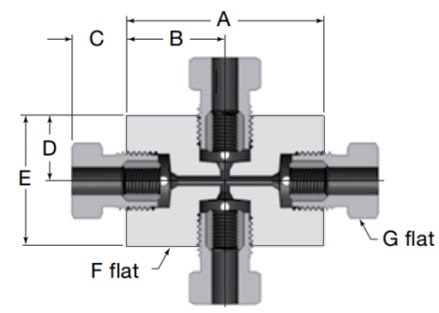

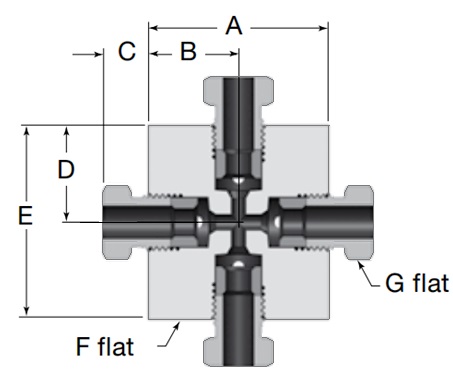

      Tube OD In. Ordering NO. Dimensions in.(mm)
      A B C D E F G
      20,000 psig (1378 bar
      1/4 -SPCR-T4-20K 1.50 (38.1) 0.75 (19.1) 0.38 (9.7) 0.75 (19.1) 1.50 (38.1) 5/8 1/2
      3/8 -SPCR-T6-20K 2.00 (50.8) 1.00 (25.4) 0.48 (12.2) 1.00 (25.4) 2.00 (50.8) 3/4 5/8
      9/16 -SPCR-T9-20K 2.50 (63.5) 1.25 (31.8) 0.68 (17.3) 1.25 (31.8) 2.50 (63.5) 1 7/8
      3/4 -SPCR-T12-20K 3.00 (76.2) 1.50 (38.1) 0.59 (15.0) 1.50 (38.1) 3.00 (76.2) 13/8 13/16
      1 -SPCR-T16-20K 4.12 (105) 2.06 (52.3) 0.74 (18.8) 2.06 (52.3) 4.12 (105) 13/4 13/8
      Tube OD In. Ordering NO. Dimensions in.(mm)
      A B C D E F G
      60,000 psig (4134 bar
      1/4 -SPCR-T4-60K 2.00 (50.8) 1.00 (25.4) 0.59 (15.0) 0.63 (16.0) 1.25 (31.8) 1 5/8
      3/8 -SPCR-T6-60K 2.00 (50.8) 1.00 (25.4) 0.72 (18.3) 1.06 (27.0) 2.12 (53.8) 1 13/16
      9/16 -SPCR-T9-60K 2.62 (66.5) 1.31 (33.3) 1.00 (25.4) 1.38 (34.9) 2.75 (69.8) 1 1/2 1 3/16
      • Medium/High Pressure Fittings Crosses SPCR Series
    • Medium/High Pressure Fittings Crosses SPCR Series
      ModelSPCR
      BrandLabEquipx
