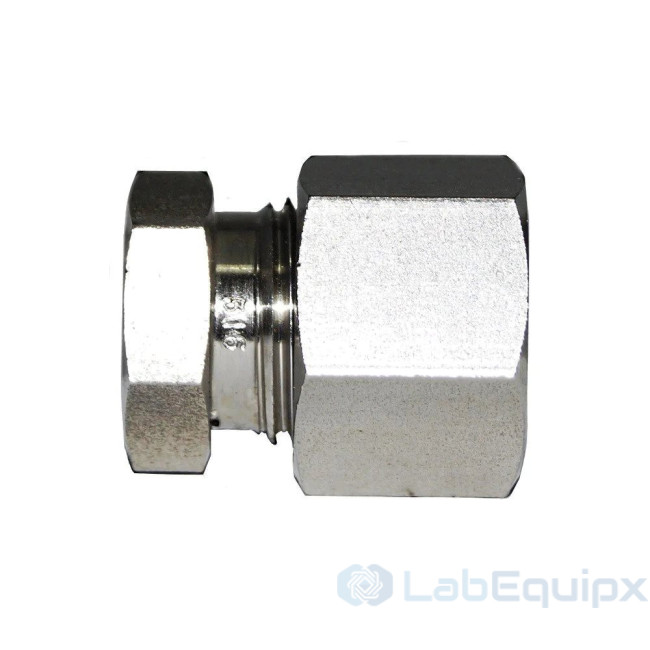

    • Medium/High Pressure Fittings Caps SPCP Series

    • Medium Pressure Fittings (20,000 psig /1378 bar)/High Pressure Fittings (60,000 psig /4134 bar) Caps SPCP Series.

      Technical Data:

      Tube OD In. Ordering NO. Dimensions in.(mm)


      		A C F G

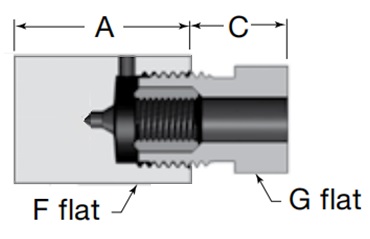

      20,000 psig (1378 bar)
      1/4 -SPCP-T4-20K 1.00 (25.4) 0.38 (9.7) 3/4 1/2
      3/8 -SPCP-T6-20K 1.25 (31.8) 0.48 (12.2) 3/4 5/8
      9/16 -SPCP-T9-20K 1.50 (38.1) 0.68 (17.3) 1 7/8
      3/4 -SPCP-T12-20K 1.75 (44.5) 0.59 (15.0) 13/8 13/16
      1 -SPCP-T16-20K 2.25 (53.8) 0.74 (18.8) 13/4 13/8
      Tube OD In. Ordering NO. Dimensions in.(mm)

      		A C F G

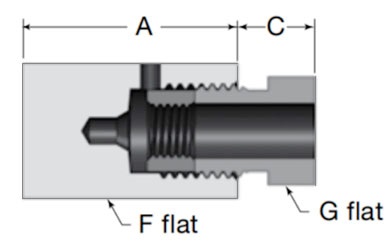

      60,000 psig (4134 bar)
      1/4 -SPCP-T4-60K 1.06 (27.0) 0.59 (15.0) 3/4 5/8
      3/8 -SPCP-T6-60K 1.25 (31.8) 0.72 (18.3) 1 13/16
      9/16 -SPCP-T9-60K 1.62 (41.2) 1.00 (25.4) 13/8 13/16
      • Medium/High Pressure Fittings Caps SPCP Series
    • Medium/High Pressure Fittings Caps SPCP Series
      ModelSPCP
      BrandLabEquipx
