Medium and High Pressure Fittings & Needle Valves

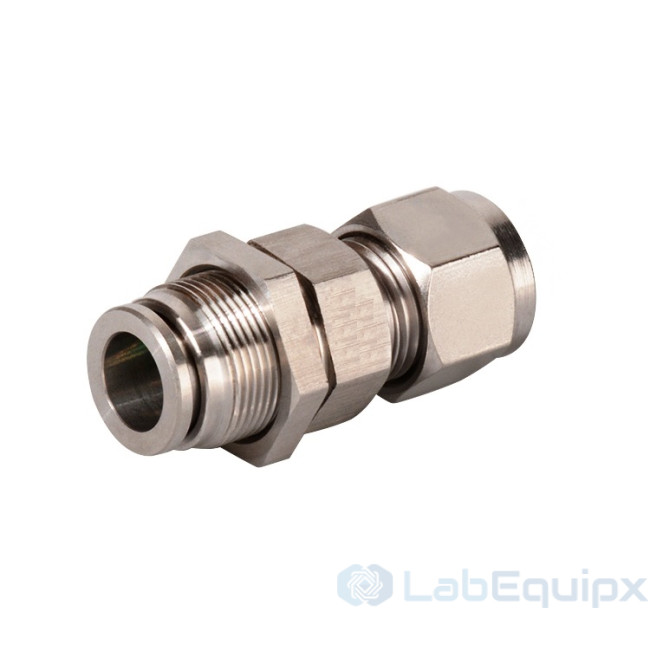

Medium Pressure Fittings (20,000 psig /1378 bar)/High Pressure Fittings (60,000 psig /4134 bar) Bulkheads SPB Series.

Technical Data:

Tube OD In.	Ordering NO.	Dimensions in.(mm)

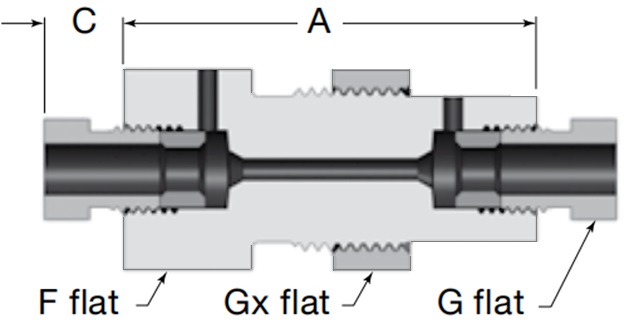

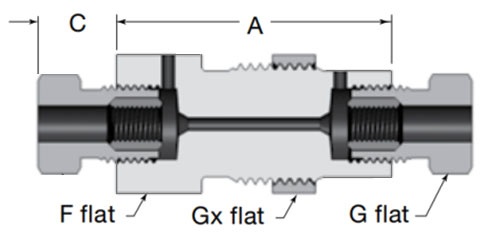

		A	C	F	G	Gx	Panel Hole Size	Panel Thk.
20,000 psig (4134 bar)
1/4	-SPB-T4-20K	2.00 (50.8)	0.38 (9.7)	1	1/2	1	0.88 (22.4)	0.38 (9.7)
3/8	-SPB-T6-20K	2.00 (50.8)	0.48 (12.2)	1	5/8	1	0.94 (23.9)	0.38 (9.7)
9/16	-SPB-T9-20K	2.62 (66.5)	0.68 (17.3)	1 3/8	7/8	13/8	1.25 (31.8)	0.50 (12.7)
3/4	-SPB-T12-20K	2.62 (66.5)	0.59 (15.0)	1 7/8	13/16	17/8	1.69 (42.9)	0.38 (9.7)
9/16	-SPB-T16-20K	2.62 (66.5)	0.74 (18.8)	2 1/8	13/8	21/8	2.00 (50.8)	0.50 (12.7)

Tube OD In.	Ordering NO.	Dimensions in.(mm)
		A	C	F	G	Gx	Panel Hole Size	Panel Thk.
60,000 psig (4134 bar)
1/4	-SPB-T4-60K	2.00 (50.8)	0.59 (15.0)	1	5/8	1	0.94 (23.9)	0.50 (12.7)
3/8	-SPB-T6-60K	2.38 (60.5)	0.72 (18.3)	1 3/8	13/16	13/8	1.12 (28.4)	0.38 (9.7)
9/16	-SPB-T9-60K	2.75 (69.9)	1.00 (25.4)	1 7/8	13/16	17/8	1.75 (44.5)	0.62 (15.7)

Model	SPB
Brand	LabEquipx
