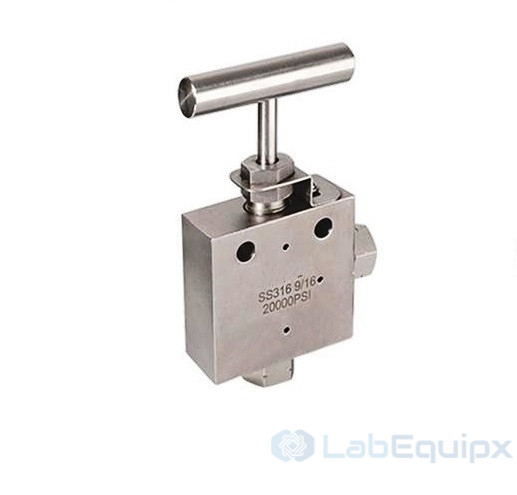

    • Medium Pressure Needle Valves Tubing Connection 2-Way MPN Series 20,000 psig

    • Technical Data:

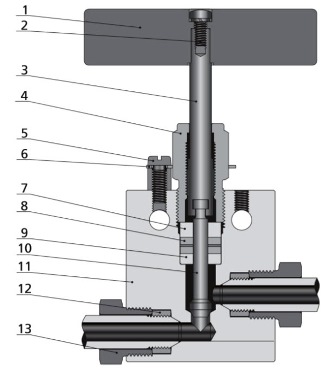

      Standard Materials of Construction

      Item Component Material
      1 Handle SS or Aluminum
      2 Handel Screw Stainless Steel
      3 Upper Stem SS316/A479
      4 Packing Gland C63000/B150
      5 Locking Screw Stainless Steel
      6 Locking Plate SS304/A240
      7 Packing Ring C63000/B150
      8 Packing PTFE/RPTFE glass/Graphite/Extended stuffing box with Graphite
      9 Packing Washer 17-4PH SS/A564
      10 Lower Stem 17-4PH SS/A564
      11 Body SS316/A479
      12 Collar SS316/A479

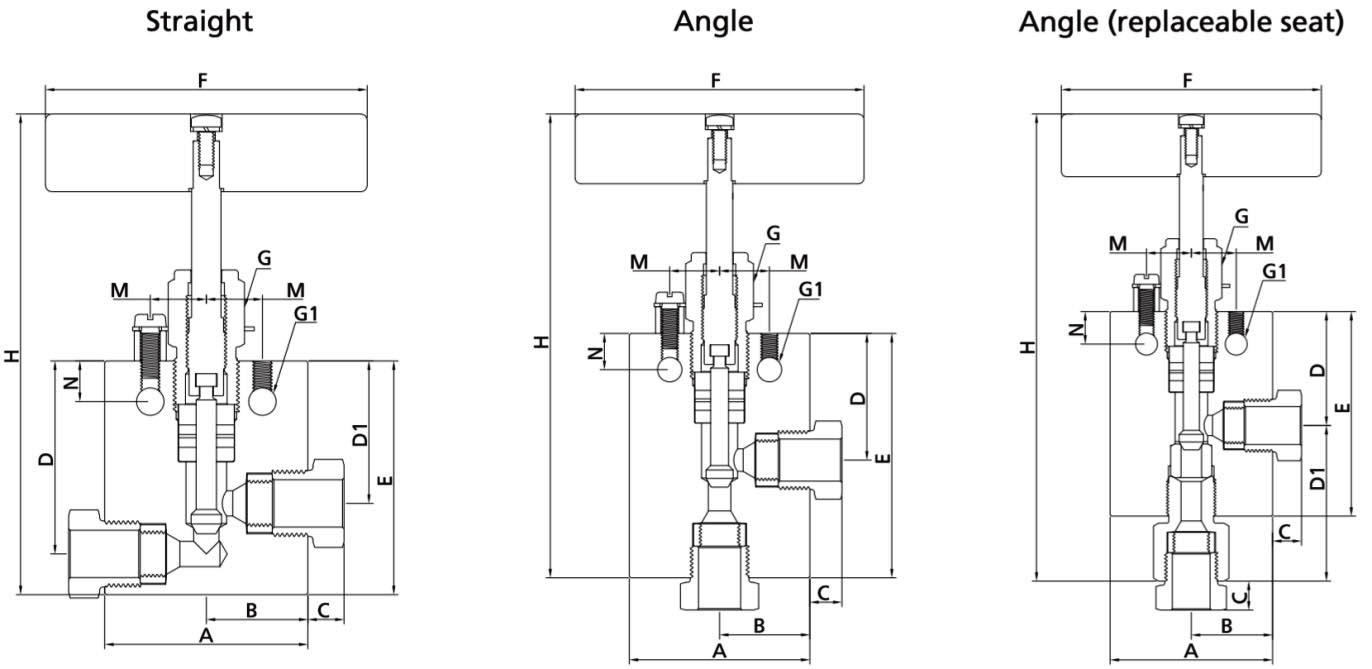

      Ordering Information and Dimensions (Tubing Connection, 2-Way)

      Straight
      Part NO.Tube SizeOrifice In.(mm)Dimension in.(mm)
      A B C D D1 E F G G1 H M N ThK
      SS-MPN-4FT 1/4 0.125 (3.2) 2.00 (50.8) 1.00 (25.4) 1.62 (41.2) 1.62 (41.2) 1.19 (30.2) 2.00 (50.8) 3.00 (762) 0.75 (19.1) 0.22 (5.6) 4.85 (123) 0.62 (15.8) 0.38 (9.7) 0.75 (19.1)
      SS-MPN-6FT 3/8 0.204 (5.2) 2.00 (50.8) 1.00 (25.4) 0.44 (11.2) 1.62 (41.2) 1.19 (30.2) 2.00 (50.8) 3.00 (762) 0.750 (19.1) 0.22 (5.6) 4.89 (124) 0.62 (15.8) 0.38 (9.7) 0.750 (19.1)
      SS-MPN-9FT 9/16 0.312 (7.9) 2.50 (63.5) 1.25 (31.8) 0.55 (14.0) 2.37 (60.3) 1.75 (44.5) 2.88 (73.2) 4.00 (102) 1.00 (25.4) 0.34 (8.6) 6.18 (157) 0.69 (17.5) 0.50 (12.7) 1.00 (25.4)
      SS-MPN-12FT 3/4 0.438 (11.1) 3.00 (76.2) 1.50 (38.1) 1.60 (15.2) 3.00 (762) 2.25 (57.2) 3.75 (95.3) 10.25 (260) 1.19 (30.2) 0.44 (11.2) 7.37 (187) 0.88 (22.4) 0.63 (16.0) 1.38 (35.1)
      SS-MPN-16FT 1 0.562 (14.3) 4.13 (105) 2.06 (52.3) 0.74 (18.7) 3.75 (95.3) 2.81 (71.4) 4.64 (118) 10.25 (260) 1.62 (41.2) 0.56 (14.2) 9.45 (240) 1.25 (31.8) 1.13 (28.7) 1.75 (44.5)
      Angle
      Part NO.Tube SizeOrifice In.(mm)Dimension in.(mm)
      A B C D D1 E F G G1 H M N ThK
      SSMIPN4FT-2 1/4 0.125 (3.2) 2.00 (50.8) 1.00 (25.4) 1.62 (41.2) 1.19 (30.2) / 2.44 (61.9) 3.00 (762) 0.75 (19.1) 0.22 (5.6) 5.28 (134) 0.62 (15.8) 0.38 (9.7) 0.75 (19.1)
      SSMIPN6FT-2 3/8 0.204 (5.2) 2.00 (50.8) 1.00 (25.4) 0.44 (11.2) 1.19 (30.2) / 2.44 (61.9) 3.00 (762) 0.750 (19.1) 0.22 (5.6) 5.33 (135) 0.62 (15.8) 0.38 (9.7) 0.750 (19.1)
      SSUPN9FT-2 9/16 0.312 (7.9) 2.50 (63.5) 1.25 (31.8) 0.55 (14.0) 1.75 (44.5) / 3.38 (85.9) 4.00 (102) 1.00 (25.4) 0.34 (8.6) 6.69 (170) 0.69 (17.5) 0.50 (12.7) 1.00 (25.4)
      SSMIPN-12FT-2 3/4 0.438 (11.1) 3.00 (76.2) 1.50 (38.1) 1.60 (15.2) 2.25 (57.2) / 4.25 (108) 10.25 (260) 1.19 (30.2) 0.44 (11.2) 7.87 (200) 0.88 (22.4) 0.63 (16.0) 1.38 (35.1)
      SSMIPN-16FT-2 1 0.562 (14.3) 4.13 (105) 2.06 (52.3) 0.74 (18.7) 2.81 (71.4) / 5.12 (130) 10.25 (260) 1.62 (41.2) 0.56 (14.2) 9.94 (253) 1.25 (31.8) 1.13 (28.7) 1.75 (44.5)
      Angle (Replace Seat)
      Part NO.Tube SizeOrifice In.(mm)Dimension in.(mm)
      A B C D D1 E F G G1 H M N ThK
      SS-MPN4FT-3 1/4 0.125 (3.2) 2.00 (50.8) 1.00 (25.4) 1.62 (41.2) 1.19 (30.2) 2.13 (54.0) 2.25 (57.2) 3.00 (762) 0.75 (19.1) 0.22 (5.6) 6.10 (155) 0.62 (15.8) 0.38 (9.7) 0.75 (19.1)
      SSMIPN6FT-3 3/8 0.204 (5.2) 2.00 (50.8) 1.00 (25.4) 0.44 (11.2) 1.19 (30.2) 2.13 (54.0) 2.25 (57.2) 3.00 (762) 0.750 (19.1) 0.22 (5.6) 6.16 (156) 0.62 (15.8) 0.38 (9.7) 0.750 (19.1)
      SSMIPN9FT-3 9/16 0.312 (7.9) 2.50 (63.5) 1.25 (31.8) 0.55 (14.0) 1.75 (44.5) 2.50 (63.5) 3.13 (79.4) 4.00 (102) 1.00 (25.4) 0.34 (8.6) 7.58 (192) 0.69 (17.5) 0.50 (12.7) 1.00 (25.4)
      SSMIPN-12FT-3 3/4 0.438 (11.1) 3.00 (76.2) 1.50 (38.1) 1.60 (15.2) 2.25 (57.2) 3.44 (87.4) 4.25 (108) 10.25 (260) 1.19 (30.2) 0.44 (11.2) 9.30 (236) 0.88 (22.4) 0.63 (16.0) 1.38 (35.1)
      SSMIPN-16FT-3 1 0.562 (14.3) 4.13 (105) 2.06 (52.3) 0.74 (18.7) 2.81 (71.4) 4.22 (107) 5.25 (133) 10.25 (260) 1.62 (41.2) 0.56 (14.2) 11.86 (301) 1.25 (31.8) 1.13 (28.7) 1.75 (44.5)
      • Working Pressure: 20,000 psig (1379 bar)
      • Working Temperature Range: -100°F~600°F (-73°C~316°C)
      • Tubing sizes: 1/4", 3/8", 9/16", 3/4" and 1"
      • High tensile 316 Stainless Steel for valve body and 17-4PH Stainless Steel for lower stem
      • Selected materials of packing gland and upper stem for optimum thread cycle life and reduced handle torque
      • Metal-to-metal seating achieves ideal shutoff, longer stem/seat service lifetime for abrasive flow, excellent corrosion resistance and greater durability for repeated on/off cycles
      • Non-rotating stem and bar stock body design
      • Easy to assemble and replace packing
      • Packing located under stem threads
      • Reliable locking device for packing gland
      • Options for Vee or Regulating stem tips

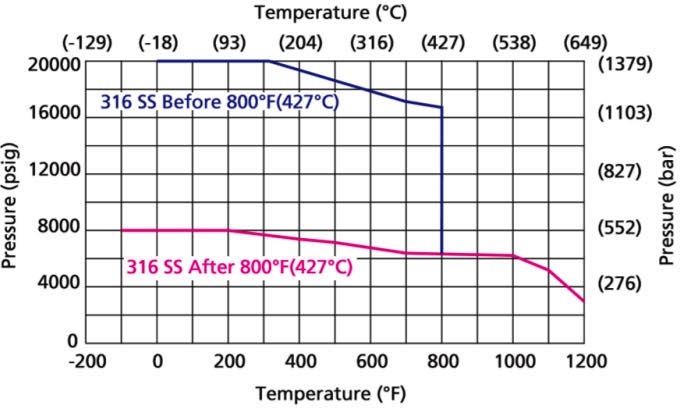

      Flow Data at 100℉（38℃） Pressure vs. Temperature Curve Data
