MPH

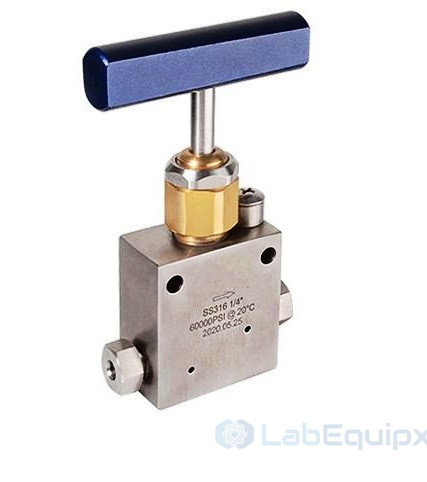

Medium Pressure Needle Valves Tubing Connection 2-Way MPH Series 30,000 psig
Technical Data:

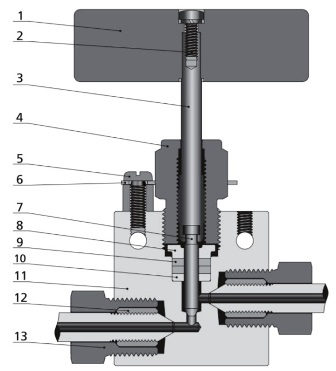

Standard Materials of Construction
Item Component Material 1 Handle SS or Aluminum 2 Handel Screw Stainless Steel 3 Upper Stem SS316/A479 4 Packing Gland C63000/B150 5 Locking Screw Stainless Steel 6 Locking Plate SS04/A240 7 Lower Stem 17-4PH SS/A564 8 Packing Ring C63000/B150 9 Packing PTFE/RPTFE 10 Packing Washer 17-4PH SS/A564 11 Body SS316/A479 12 Collar SS316/A479 13 Gland SS316/A479 Ordering Information and Dimensions (Tubing Connection, 2-Way)

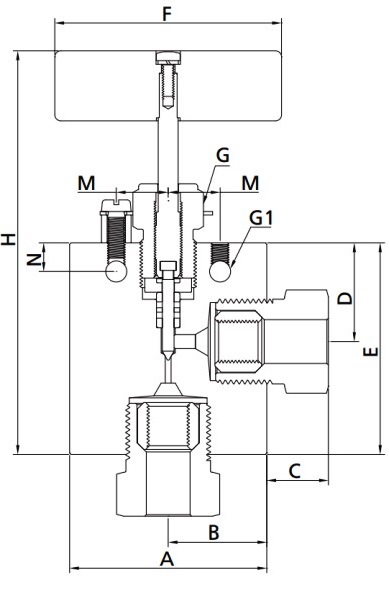

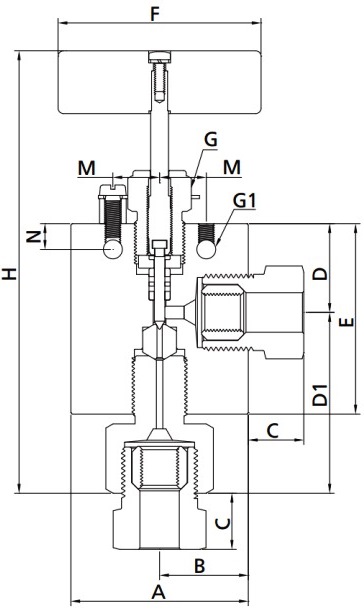

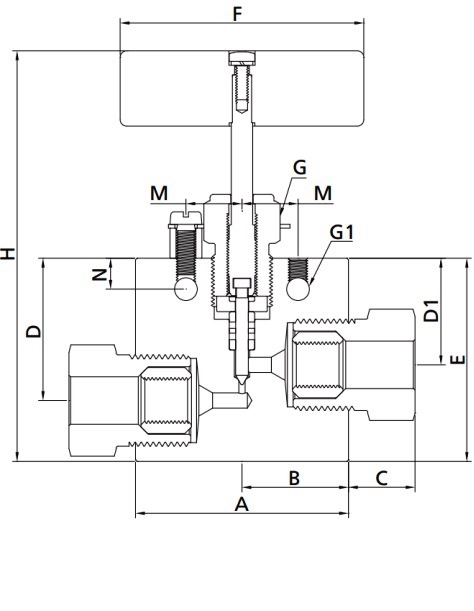

Straight Angle Angle (replaceable seat)
Straight Part NO. Tube Size Orifice In.(mm) Dimension in.(mm) A B C D D1 E F G G1 H M N ThK SS-UPN-4FT 1/4 0.063 (1.59) 2.00 (50.8) 1.00 (25.4) 0.47 (11.9) 1.50 (38.1) 1.12 (28.5) 2.00 (50.8) 3.00 (76.2) 1.00 (25.4) 0.22 (5.6) 4.69 (119) 0.69 (17.5) 0.38 (9.7) 1.00 (25.4) SS-UPN-6FT 3/8 0.063 (1.59) 2.00 (50.8) 1.00 (25.4) 0.61 (15.6) 1.50 (38.1) 1.12 (28.5) 2.00 (50.8) 3.00 (76.2) 1.00 (25.4) 0.22 (5.6) 4.69 (119) 0.69 (17.5) 0.38 (9.7) 1.00 (25.4) SS-UPN-9FT 9/16 0.078 (1.98) 2.62 (66.6) 1.31 (33.3) 0.95 (24.1) 1.56 (39.6) 1.12 (28.5) 2.44 (62.0) 3.00 (76.2) 1.00 (25.4) 0.28 (7.1) 5.13 (130) 0.69 (17.5) 0.38 (9.7) 1.50 (38.1) Angle Part NO. Tube Size Orifice In.(mm) Dimension in.(mm) A B C D D1 E F G G1 H M N ThK SS-UPN-4FT-2 1/4 0.063 (1.59) 2.00 (50.8) 1.00 (25.4) 0.47 (11.9) 1.12 (28.5) / 2.00 (50.8) 3.00 (76.2) 1.00 (25.4) 0.22 (5.6) 4.69 (119) 0.69 (17.5) 0.38 (9.7) 1.00 (25.4) SS-UPN-6FT-2 3/8 0.063 (1.59) 2.00 (50.8) 1.00 (25.4) 0.61 (15.6) 1.12 (28.5) / 2.25 (57.2) 3.00 (76.2) 1.00 (25.4) 0.22 (5.6) 4.69 (119) 0.69 (17.5) 0.38 (9.7) 1.00 (25.4) SS-UPN-9FT-2 9/16 0.078 (1.98) 2.62 (66.6) 1.31 (33.3) 0.95 (24.1) 1.12 (28.5) / 2.44 (62.0) 3.00 (76.2) 1.00 (25.4) 0.28 (7.1) 5.13 (130) 0.69 (17.5) 0.38 (9.7) 1.50 (38.1) Angle (Replace Seat) Part NO. Tube Size Orifice In.(mm) Dimension in.(mm) A B C D D1 E F G G1 H M N ThK SS-UPN-4FT-3 1/4 0.063 (1.59) 2.00 (50.8) 1.00 (25.4) 0.47 (11.9) 1.12 (28.5) 2.06 (52.3) 2.38 (60.5) 3.00 (76.2) 1.00 (25.4) 0.22 (5.6) 5.88 (149) 0.69 (17.5) 0.38 (9.7) 1.00 (25.4) SS-UPN-6FT-3 3/8 0.063 (1.59) 2.00 (50.8) 1.00 (25.4) 0.61 (15.6) 1.12 (28.5) 2.31 (58.6) 2.38 (60.5) 3.00 (76.2) 1.00 (25.4) 0.22 (5.6) 6.12 (155) 0.69 (17.5) 0.38 (9.7) 1.00 (25.4) SS-UPN-9FT-3 9/16 0.078 (1.98) 2.62 (66.6) 1.31 (33.3) 0.95 (24.1) 1.12 (28.5) 2.55 (65.0) 2.44 (62.0) 3.00 (76.2) 1.00 (25.4) 0.28 (7.1) 6.39 (162) 0.69 (17.5) 0.38 (9.7) 1.50 (38.1) Note:
- G is the drill dimension of packing gland mounting hole
- G1 is the dimension of bracket mounting hole.
- Panel mounting drill size: 0.25" all valves.
- H is the dimension of stem in closed position.
- All dimensions for reference only and subject to change.
- Working Pressure: 30,000 psig (2068 bar)
- Working Temperature Range: -100°F~600°F (-73°C~316°C)
- Tubing sizes: 1/4”, 3/8” and 9/16”
- High tensile 316 Stainless Steel for valve body and 17-4PH Stainless Steel for lower stem
- Selected materials of packing gland and upper stem for optimum thread cycle life and reduced handle torque
- Metal-to-metal seating achieves ideal shutoff, longer stem/seat service lifetime for abrasive flow, excellent corrosion resistance and greater durability for repeated on/off cycles
- Non-rotating stem and bar stock body design
- Easy to assemble and replace packing
- Packing located under stem threads
- Reliable locking device for packing gland
- Options for Vee or Regulating stem tips

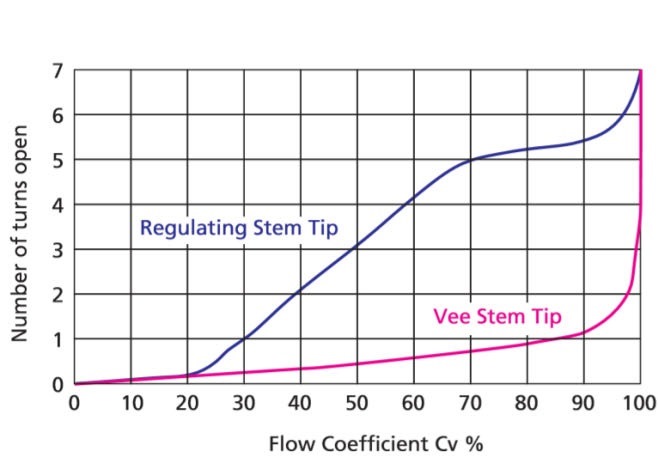

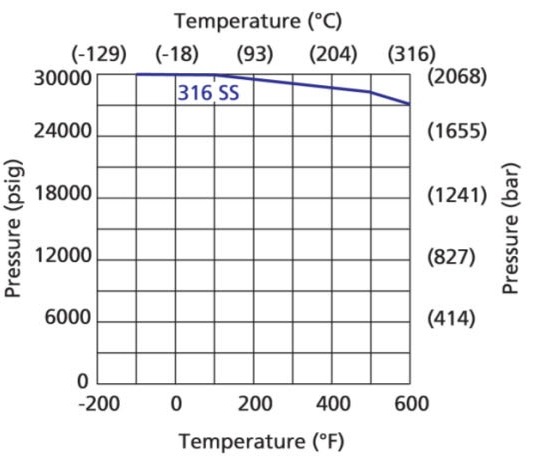

Flow Data at 100℉（38℃） Pressure vs. Temperature Curve Data
