3 Way Double Ferrules Integral Forged Needle Valves 6000PSI

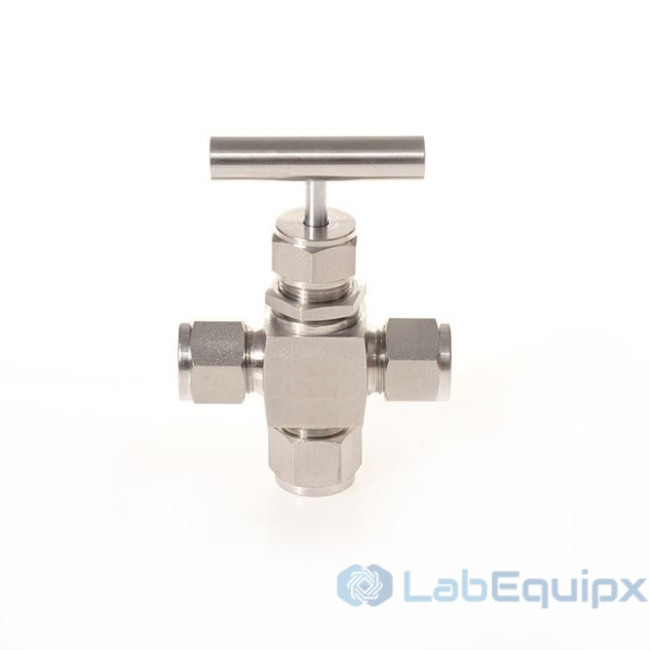

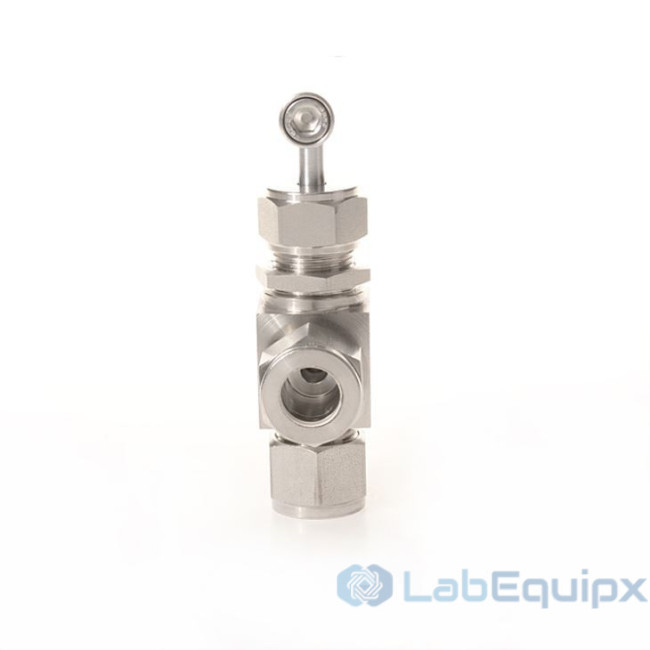

The 3-Way Double Ferrule Integral Forged Needle Valve, model SS-FN-FT-3W, is a manual stainless steel valve rated 6000 psi with three double ferrule tube connections formed in a single forged body. It provides metering and isolation in high pressure instrument lines carrying water, oil, gas, and alkaline or acidic liquids, at media temperatures of -65 to 450 °F (-54 to 230 °C).

How it works

Turning the handle drives the needle stem toward its seat to throttle or shut off flow between the three ports. Each port is a double ferrule compression end: as the nut is tightened, the front ferrule seals on the body and the back ferrule grips the tube. Because the connections are forged integral with the body, there are fewer joints and fewer potential leak paths than with a valve fitted with separate adapters. Tube sizes are 1/8 to 1 in or 3 to 25 mm.

What is included

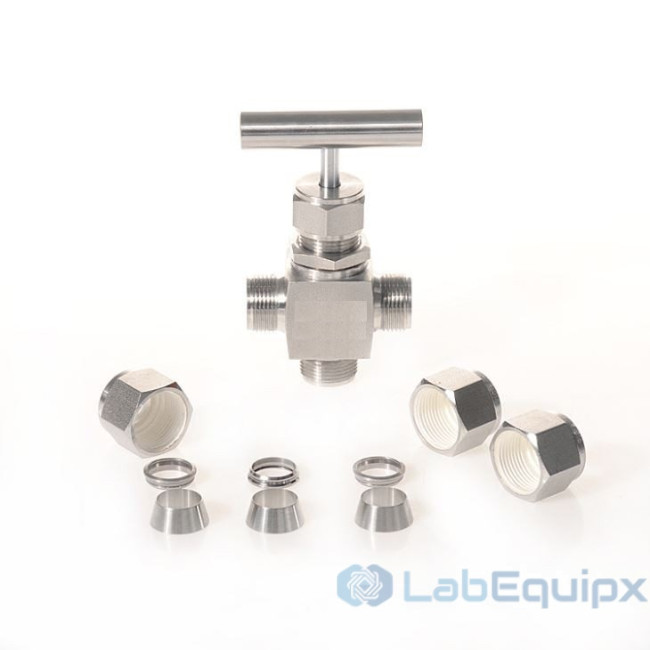

• Three-way needle valve with integral double ferrule ends, nuts and ferrules, in the specified tube size

Specify for your project

• Tube outside diameter, inch or metric
• Flow pattern required between the three ports
• Media, working pressure and temperature
• Quantity

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Product Details

• Power: Manual
• Connection Mode: Cutting Ferrule
• Material: Stainless Steel
• Pressure: 6000psi
• Standard: Standard
• Media: Water, Oil, Gas and Alkaline or Acidic Liquid
• Model NO.: SS-FN-FT-3W
• Media Temperature: -65 to 450 F(-54 to 230 C)
• Specification: 1/8 to 1 inch or 3mm to 25mm
