Integral Bonnet Double Ferrules Needle Valves

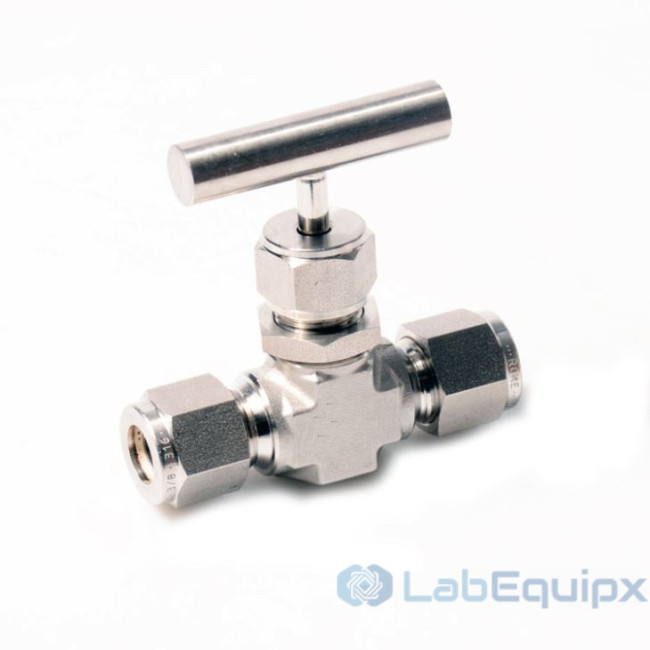

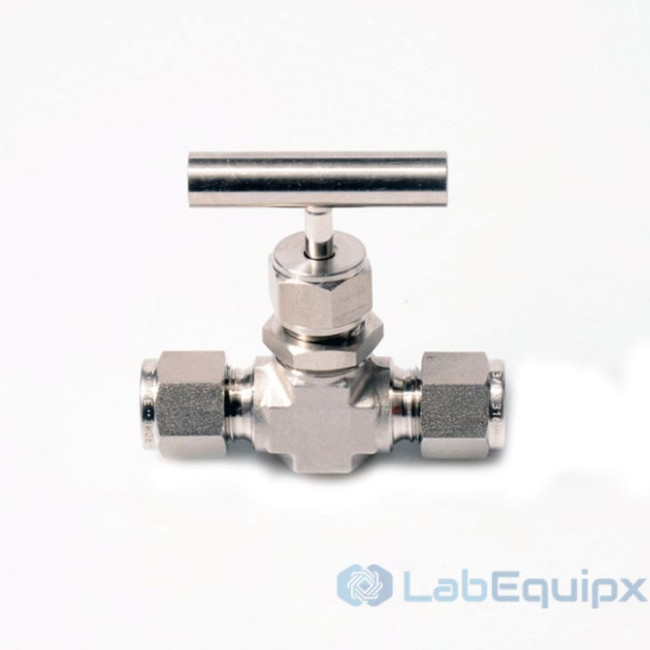

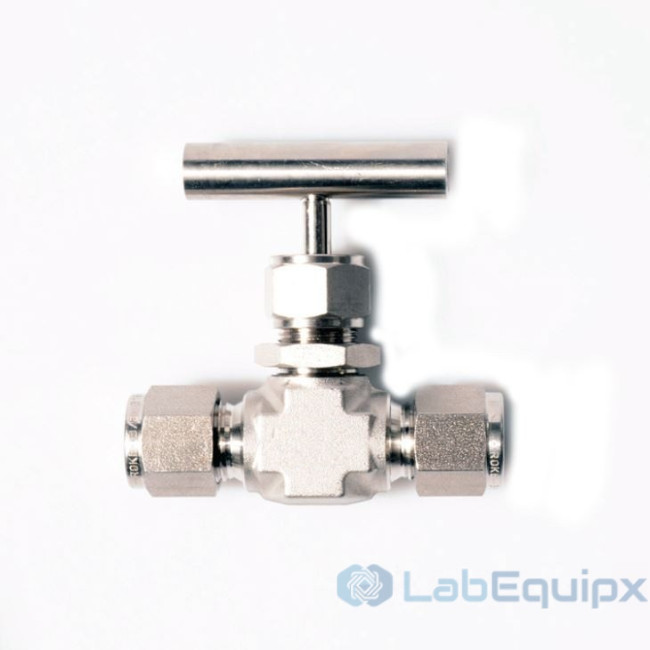

Stainless Steel Integral Bonnet Twin Ferrules Needle Valve.

Technical Data
Product Details
- Application: General
- Material: SS316, SS304, SS316Ti, F51, F53, Inconel, Monel, Hastelloy, etc.
- Port Size: 3-20mm
- Certificate: ISO9001and CE
- Temperature of Media: -54 to 230℃
- Pressure: 3000Psi
- Power: Manual
- Connection: Double Ferrules
- Media: Water, Oil, Gas and Alkaline or Acidic Liquid
- Model Number: BN Series
- MOQ: 10pcs
- Structure: Shut off
- Standard or Nonstandard: Standard

Model	BN Series
Brand	LabEquipx
Material	SS316, SS304, SS316Ti, F51, F53, Inconel, Monel, Hastelloy, etc.
Port Size	3-20mm
Application	General
