BN Series
Integral Bonnet Angle Double Ferrules Needle Valves

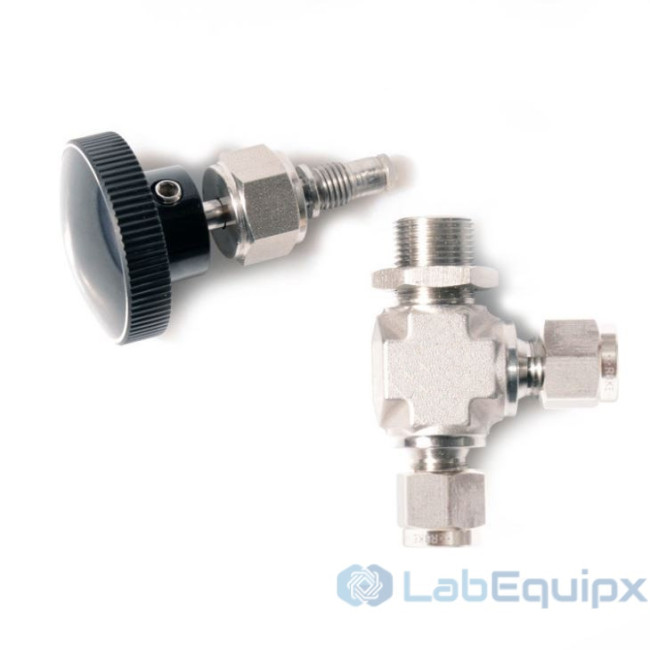

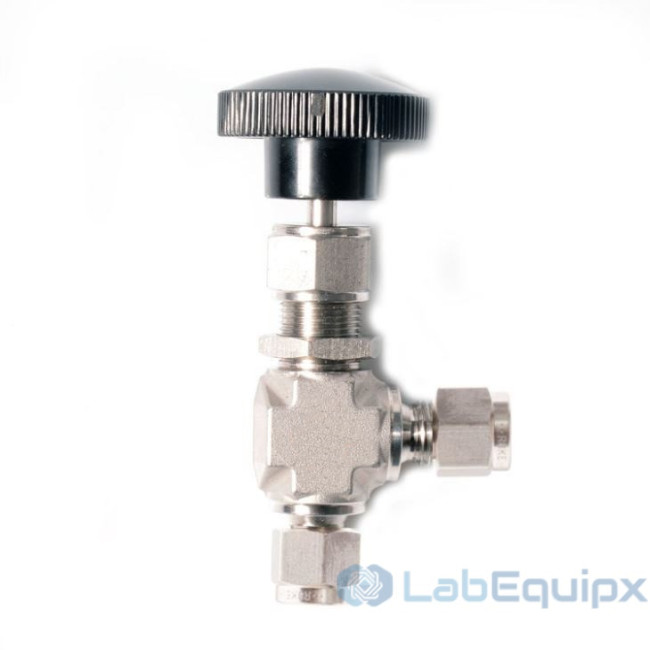

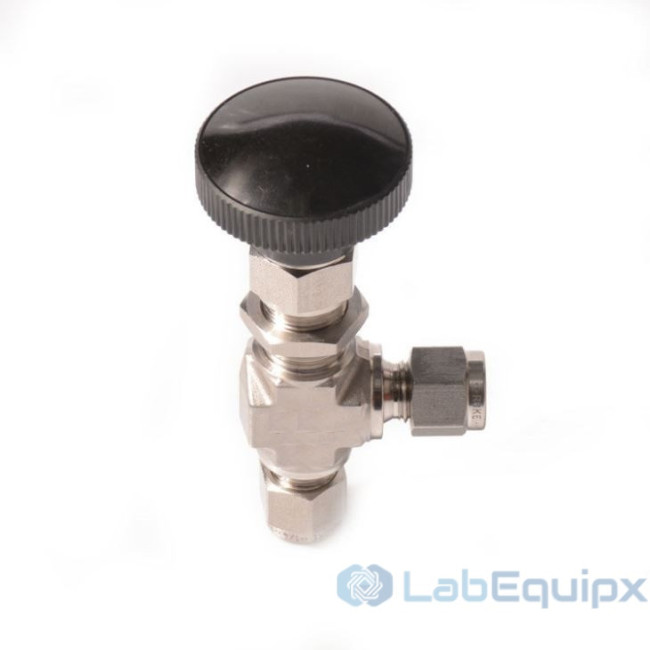

Stainless Steel Integral Bonnet Twin Ferrules Angle Needle Valve.
Technical Data
Product Details
- Model Number: BN Series
- Port Size: 1/8"-3/4" or 3-20mm
- Structure: Shut off
- Pressure: 3000Psig
- Power: Manual
- Media: Water, Oil, Gas and Alkaline or Acidic Liquid
- Temperature of Media: -65 to 450℉ (-54 to 230℃)
- Application: General
- Standard or Nonstandard: Standard
- Certificate: ISO9001and CE
- Connection: Double Ferrules
- Material: SS316, SS304, SS316Ti, F51, F53, Inconel, Monel, Hastelloy, etc.
- MOQ: 10pcs
| Model | BN Series |
| Brand | LabEquipx |
| Port Size | 1/8"-3/4" or 3-20mm |
| Structure | Shut off |
