SS-TBV-FT-3W

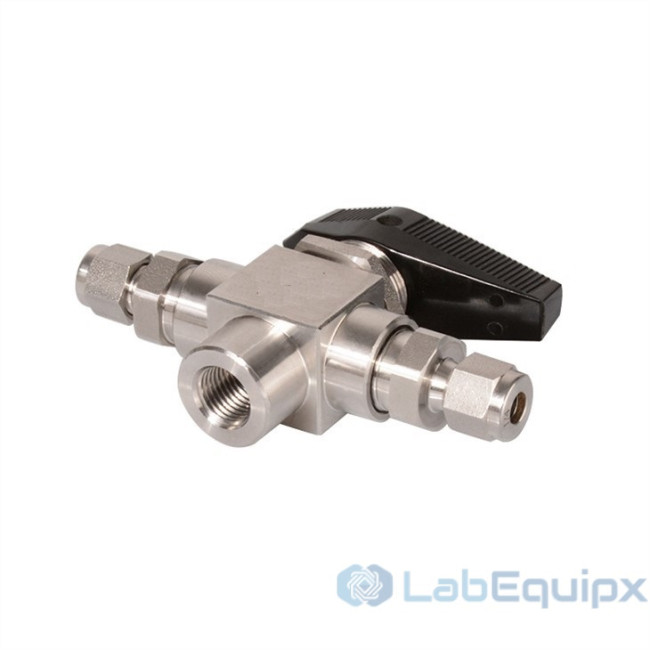

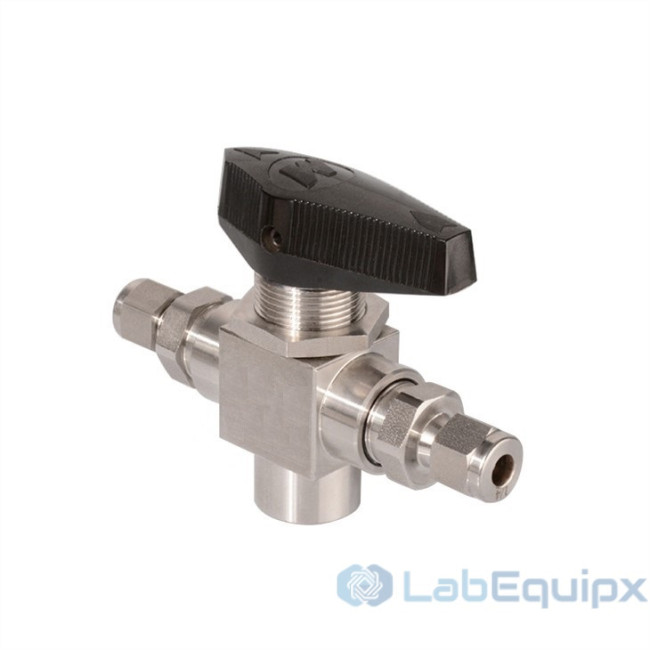

3 Way Double Ferrules Trunnion Ball Valves 6000PSI
Stainless Steel 6000psi Inch Tube Double Ferrules Trunnion 3 Way Ball Valve.
Technical Data
Material Stainless Steel Port Size 1/8-1/2 inch Product Details
- Model Number: SS-TBV-FT-3W
- Material: Stainless Steel
- Port Size: 1/8-1/2 inch
- Product name: 3 way Double Ferrules Trunnion Ball Valves
- Material: Stainless Steel
- Connection Form: Double Ferrules Compression
- Driving Mode: Manual
- Nominal Pressure: 6000psi
- Channel: Tee Type
- Media: Water, Oil, Gas and Alkaline or Acidic Liquid
- Media Temperature: -65 to 300 F (-54 to 150 C)
- Type: Trunnion Ball Valve
- Application: Industrial Usage
- Structure: Fixed Ball Valve
- Function: Switch Valve
- Standard: API6d, API598
- MOQ: 20pcs
| Model | SS-TBV-FT-3W |
| Brand | Coretest |
