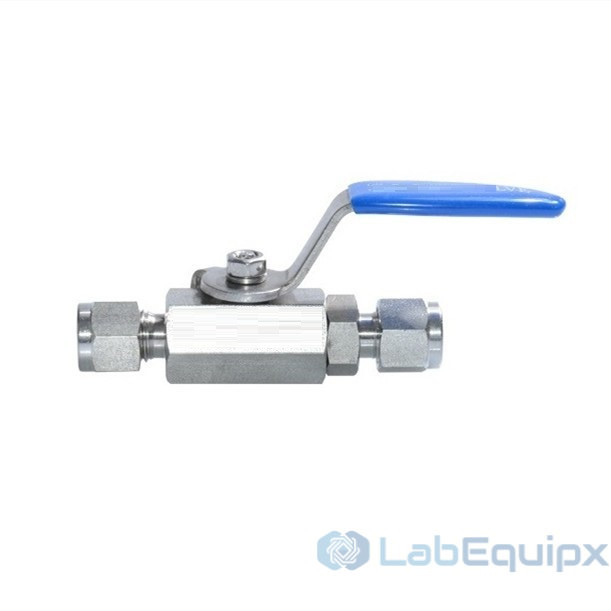

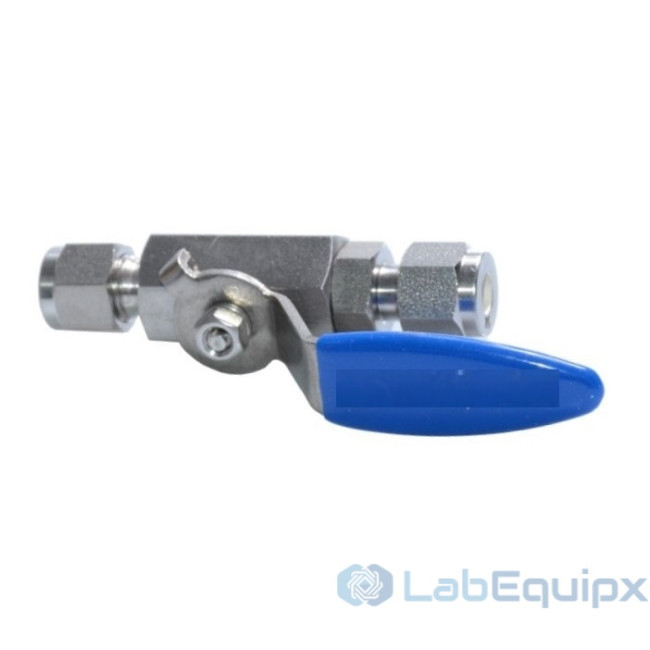

HBB Series Ball Valve
Female Thread Hex Bar Stock Ball Valves 2000PSI
Stainless Steel Hex Bar Stock Ball Valve/ Double Ferrules Compression or Female Thread 2000psi.
Technical Data
Nominal Pressure 2000psi Driving Mode Manual Product Details
- Nominal Pressure: 2000psi
- Model Number: HBB Series Ball Valve
- Driving Mode: Manual
- Application: Industrial Usage
- Port Size: 1/8"-1/2 inch
- Material: Stainless Steel
- Function: Instrumentation Ball Valve
- Connection Form: Double Ferrules Compression
- Media: Water, Oil, Gas and Alkaline or Acidic Liquid
- Media Temperature: -65 to 300 F (-54 to 150 C)
- Type: Instrumentation Ball Valve
- Structure: Floating Ball Valve
- Channel: Straight Through Type
- Standard: API6d, API598
- MOQ: 20pcs
Related products
| Model | HBB Series Ball Valve |
| Brand | Coretest |
