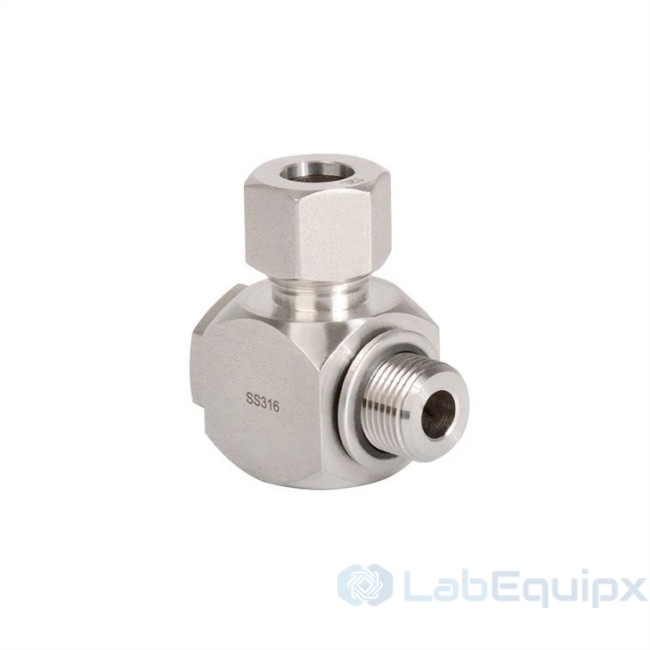

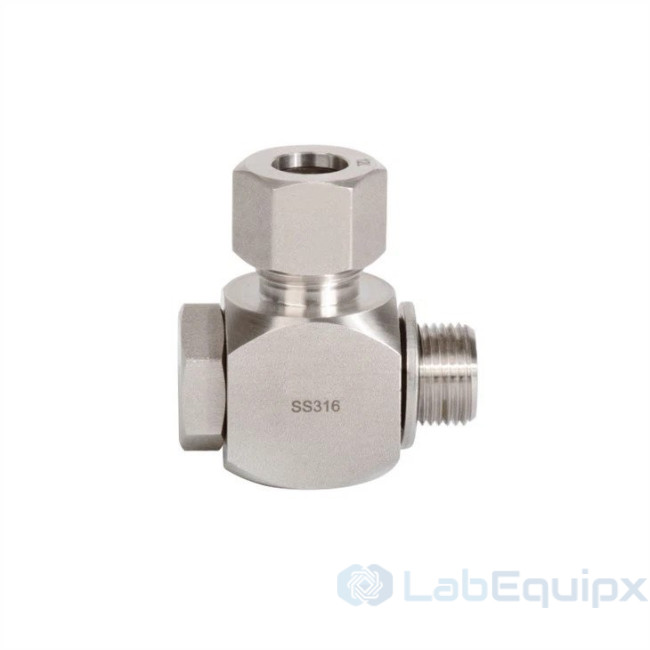

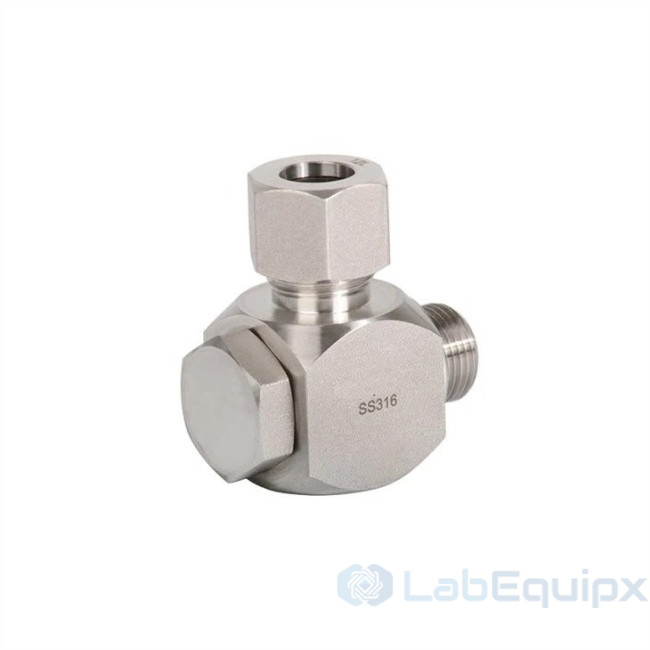

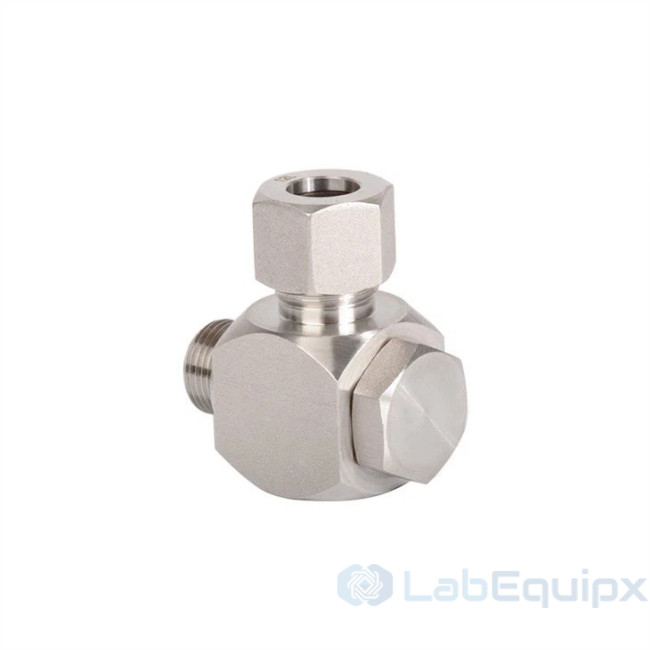

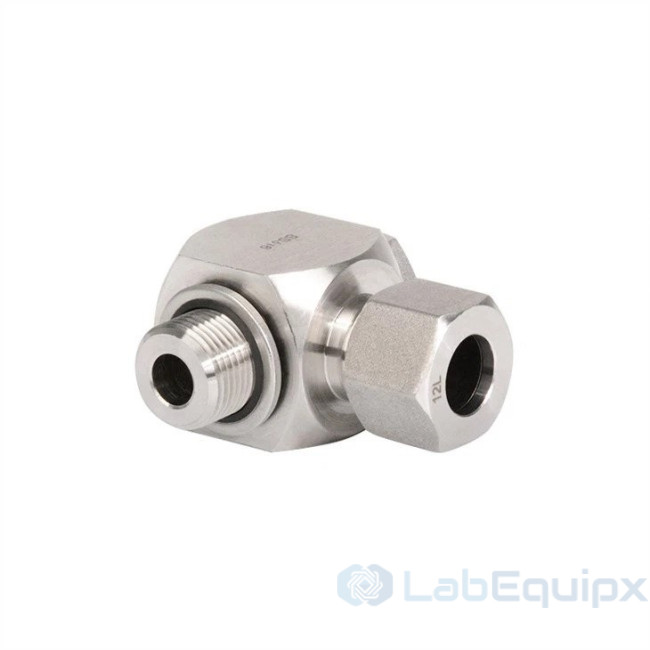

Single Ferrule Banjo Elbow

Stainless Steel Single Ferrule Banjo Elbows DIN2353, ISO8434.1.

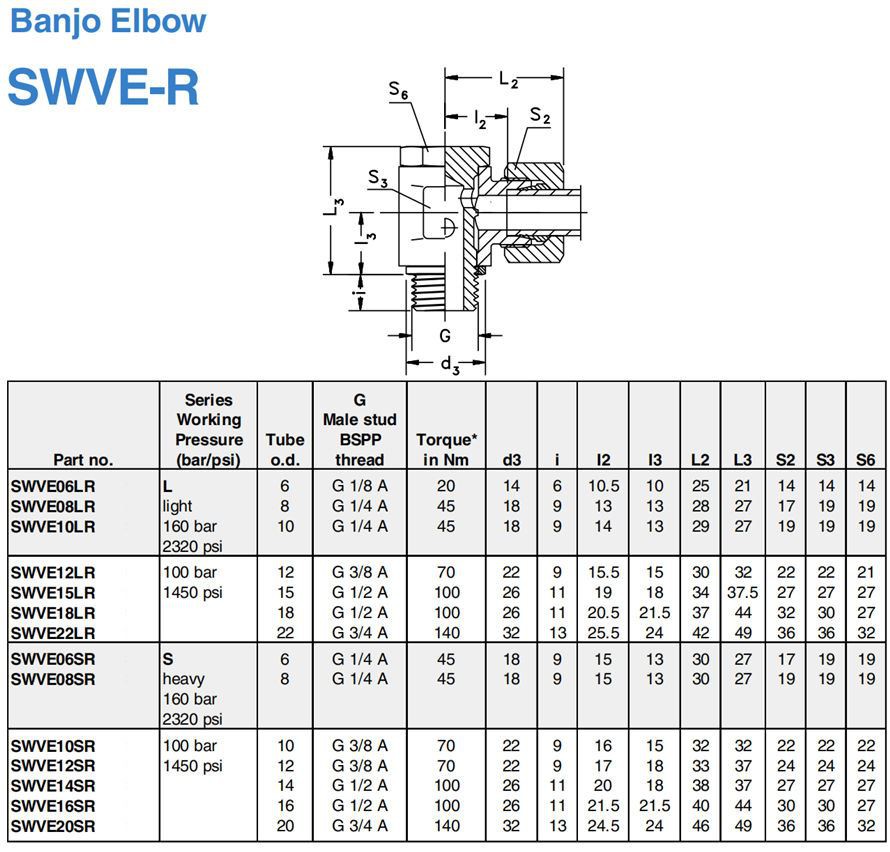

Technical Data
Product Details
- Type: elbow
- Material: Stainless Steel
- Technics: Forged
- Pressure Rating: 315 bar to 630 psi
- Connection: Compression
- Head Code: Hexagon
- Size: 6mm-42mm
- Standard: DIN2353, ISO8434.1
- Usage: Chemical, Power, Electronics, Metallurgy, Machinery, Shipbuilding, Water Treatment, etc
- Application: Water, Oil, Gas and Alkaline or Acidic Liquid
- Temperature: High Temperature
- Certificate: ISO9001, CE

Model	LESWVER
Brand	LabEquipx
Material	Stainless Steel
Type	elbow
Technics	Forged
