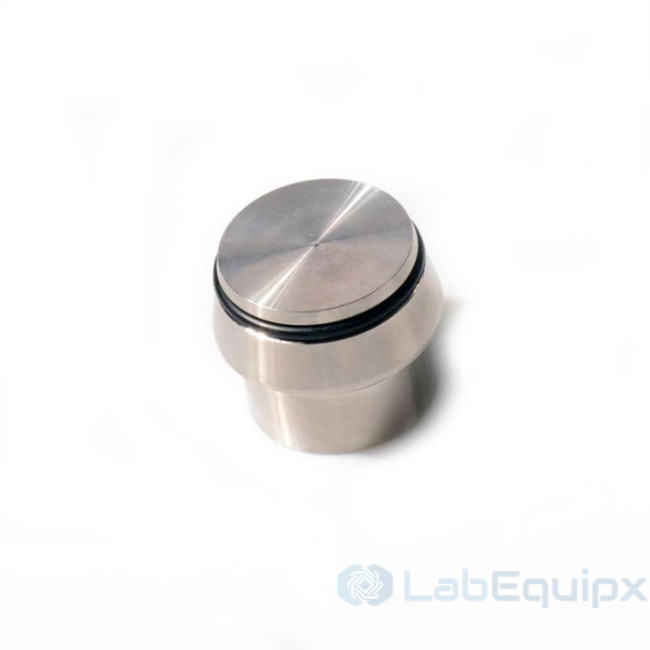

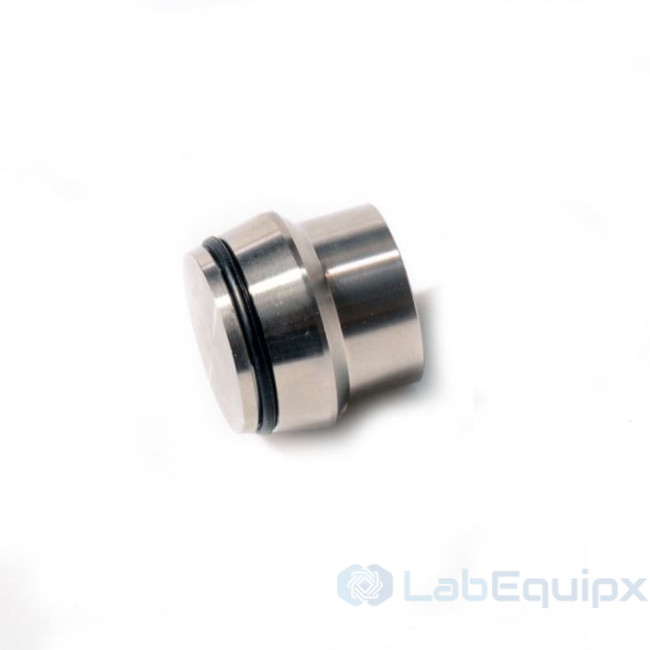

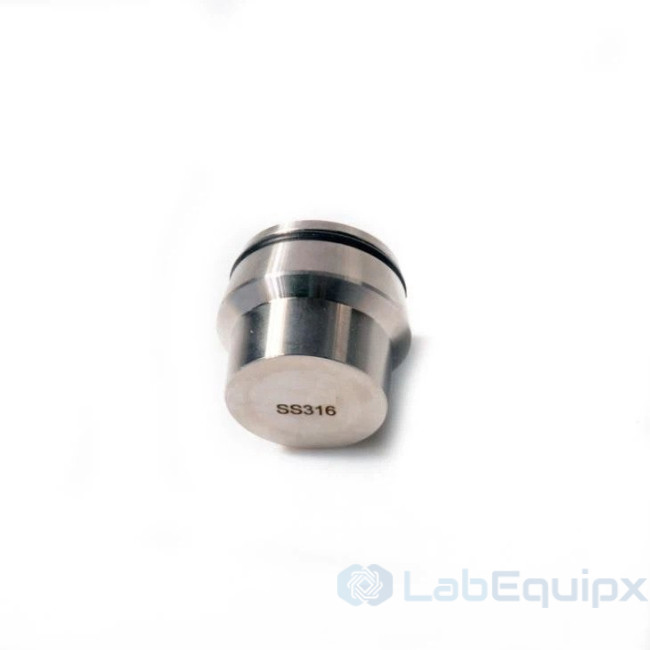

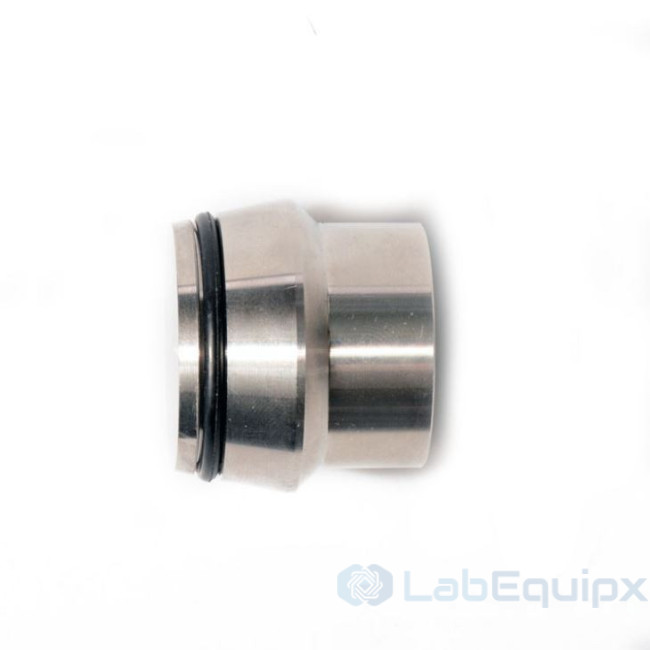

Fitting Cap

Stainless Steel Single Ferrule Tube Caps DIN2353, ISO8434.1.

Technical Data
Product Details
- Type: Union
- Pipe size: 6mm-42mm
- Material: Stainless Steel
- Standard: DIN2353, ISO8434.1
- Pressure Rating: 315 bar to 630 bar
- Technics: Forged
- Usage: Chemical, Power, Electronics, Metallurgy, Machinery, Shipbuilding, Water Treatment, etc.
- Certificate: ISO9001, CE
- Connection: Compression
- Head Code: Hexagon
- Application: Water, Oil, Gas and Alkaline or Acidic Liquid

Model	LEVKA
Brand	LabEquipx
Material	Stainless Steel
Standard	DIN2353, ISO8434.1
Type	Union
Pipe size	6mm-42mm
