Stainless Steel Male Union Compression Fitting, 6 to 42 mm

  • Item le140375713 is a forged stainless steel male union for compression tube connections in hydraulic and process lines. It joins a tube to a threaded port and is supplied for tube sizes from 6 mm to 42 mm. Plant and test system builders use it on water, oil, gas, and alkaline or acidic liquid lines.

    Design

    The body is forged stainless steel with a hexagon head for wrench assembly. The tube end is a compression connection. Dimensions and connection geometry follow DIN 2353 and ISO 8434-1, the common references for metric compression fittings in fluid power systems. The pressure rating is confirmed per tube size in the quotation.

    Typical applications

    • Petroleum and chemical process lines
    • Power generation and electronics plants
    • Metallurgy and machinery hydraulics
    • Shipbuilding
    • Water treatment

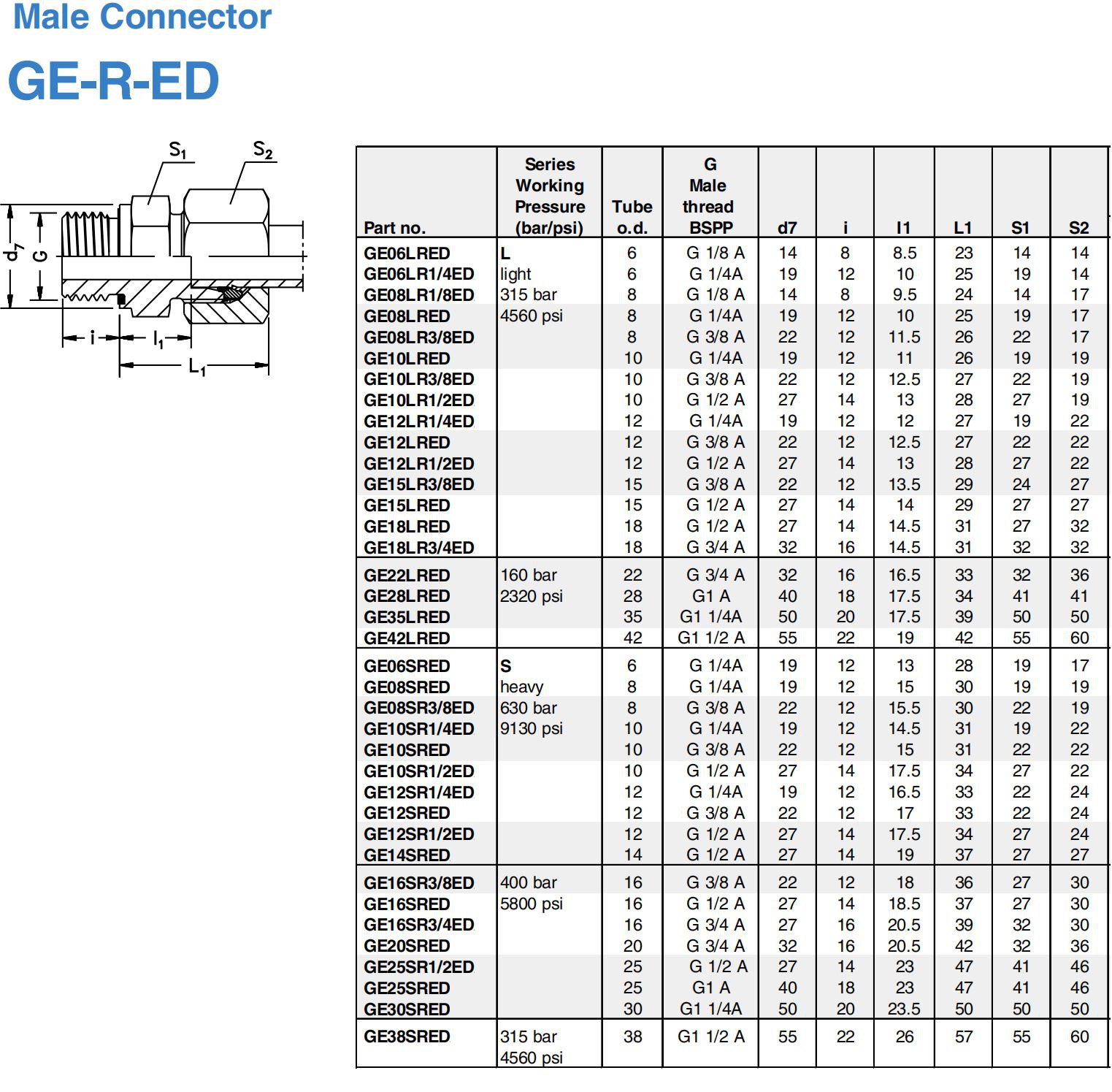

    Product data

    • Material: stainless steel
    • Manufacturing: forged
    • Type: male union
    • Connection: compression
    • Head: hexagon
    • Tube size: 6 mm to 42 mm
    • Standards: DIN 2353, ISO 8434-1
    • Media: water, oil, gas, alkaline or acidic liquids

    Specify for your project

    • Tube outside diameter, 6 mm to 42 mm
    • Thread type and size of the male end
    • Working pressure of the line
    • Stainless steel grade required for the medium
    • Quantity and any spare ferrules or nuts

    Fittings are matched to the tube and pressure class stated in the order. For mixed tube sizes, list each size and quantity separately.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

  • MaterialStainless Steel
    TypeMale Union
    Pipe size6mm-42mm
    TechnicsForged
    • Stainless Steel Male Union Compression Fitting, 6 to 42 mm
    • Stainless Steel Male Union Compression Fitting, 6 to 42 mm
    • Stainless Steel Male Union Compression Fitting, 6 to 42 mm
    • Stainless Steel Male Union Compression Fitting, 6 to 42 mm
    • Stainless Steel Male Union Compression Fitting, 6 to 42 mm
  • Product Details

    • Material: Stainless Steel
    • Technics: Forged
    • Type: Male Union
    • Pipe size: 6mm-42mm
    • Certificate: on request
    • Connection: Compression
    • Head Code: Hexagon
    • Size: 6mm-42mm
    • Standard: DIN2353, ISO8434.1
    • Application: Water,Oil,Gas and Alkaline or Acidic Liquid
    • Usage: Petroleum, Chemical, Power, Electronics, Metallurgy, Machinery, Shipbuilding,Water Treatment,etc
