Flared Union Elbows

  • The le113728072 is a forged 90 degree flared fitting elbow with a male NPT or BSPT thread on one end and a flared tube connection on the other. It turns a tube run through a right angle and connects it to a threaded port on a valve, pump, vessel or manifold. It is used in water, oil, gas, alkaline and acidic liquid lines.

    Design

    The body is forged in stainless steel or carbon steel. The tube end is flared and clamped by the nut against the fitting cone, so the seal is metal to metal on the flare and needs no separate gasket. The pipe end carries an NPT or BSPT male taper thread, which seals on the thread with sealant or tape. The head is hexagon or forged for a wrench. Sizes run from 1/8" to 2" or from 3 mm to 50 mm.

    Key data

    ParameterValue
    TypeFlared fitting, 90 degree elbow
    ThreadNPT or BSPT male
    ConnectionFlared compression
    MaterialStainless steel or carbon steel
    ManufactureForged
    Size1/8" to 2" or 3 mm to 50 mm
    HeadHexagon or forged

    Typical applications

    • Petroleum and chemical process lines
    • Power, electronics and metallurgy plants
    • Machinery, shipbuilding and water treatment

    Specify for your project

    • Tube size, inch or metric
    • Thread type: NPT or BSPT, and thread size
    • Material: stainless steel or carbon steel, from the fluid
    • Fluid, pressure and temperature of the line
    • Quantity

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

  • ApplicationWater, Oil, Gas and Alkaline or Acidic Liquid
    TypeFlared Fittings
    ShapeStraight Union

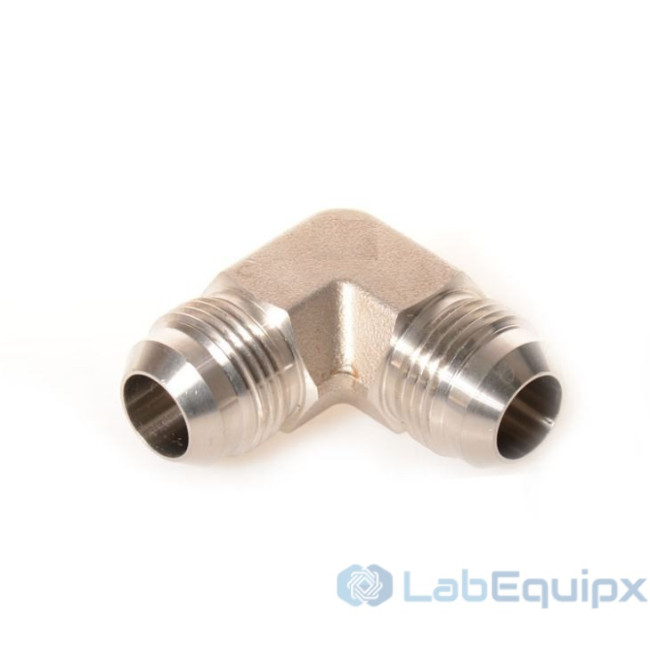

    • Flared Union Elbows

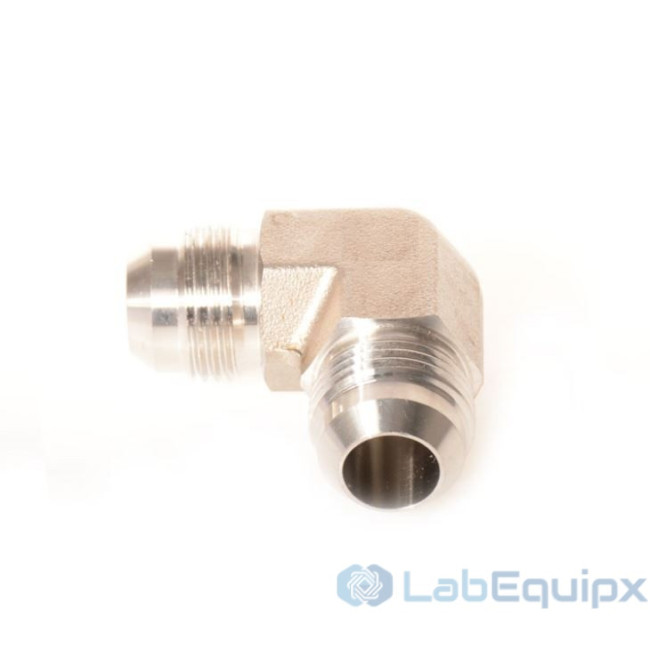

    • Flared Union Elbows
    • Flared Union Elbows
    • Flared Union Elbows
  • Product Details

    • Name: 90 Degree NPT/BSPT Male Thread Elbow
    • Type: Flared Fittings
    • Application: Water, Oil, Gas and Alkaline or Acidic Liquid
    • Shape: 90 Degree Elbow
    • Material: Stainless Steel or Carbon Steel
    • Technics: Forged
    • Pressure: on request, by size and material
    • Size: 1/8"-2" or 3mm-50mm
    • Connection: Flared Compression
    • Head Code: Hexagon or Forged
    • Certificate: on request
    • Usage: Petroleum, Chemical, Power, Electronics, Metallurgy, Machinery, Shipbuilding, Water Treatment, etc.
