HP Series - HPHT Triaxial Rock Mechanics System
High-pressure and high-temperature platform for reservoir, geothermal and deep-earth geomechanics.
Applications and System Scope
- HPHT triaxial compression
- Coupled thermo-hydro-mechanical tests
- High-stress cyclic loading
- Creep under reservoir conditions
- Stress-dependent permeability
- Caprock and deep-formation integrity studies
Configuration and Engineering Options
Standard configuration
- High-rigidity servo-hydraulic frame
- HPHT triaxial pressure cell
- Confining-pressure intensifier/controller
- Temperature-control package
- Integrated load and displacement feedback
- Automation, DAQ and safety system
Common engineering options
- High-temperature local strain
- Extended pressure/temperature envelope
- Special wetted materials
- FFKM or application-specific seals
- Pore-pressure and flow modules
- Acoustic and electrical feedthroughs
Automation and Data
- Programmable ramps, holds, cycles and stability criteria
- Independent closed-loop control of selected mechanical, pressure, flow and temperature channels
- Synchronized data acquisition with real-time plots and raw-data export
- Alarm handling, event logging and controlled shutdown logic
RFQ Inputs
Required information Examples Specimen Material, diameter, length, jacket and end interfaces Mechanical envelope Maximum load/stress, displacement, strain and rate Pressure and temperature Confining, pore/back pressure, minimum/maximum temperature Fluids and materials Fluid identity, phase, corrosivity, solids and compatibility Measurement and automation Strain, flow, acoustic/electrical options, sequence and data format Reference guidance only. Final guaranteed specifications are defined in the project-specific technical proposal and approved datasheet.
Maximum axial load Up to 2,000 kN Confining pressure Up to 210 MPa reference platform Control modes Independent axial, confining and pore-pressure control Operating temperature Up to 200 °C reference platform Reference specimens Ø50 × 100 mm and Ø25 × 50 mm Load measurement Integrated pressure-compensated load cell

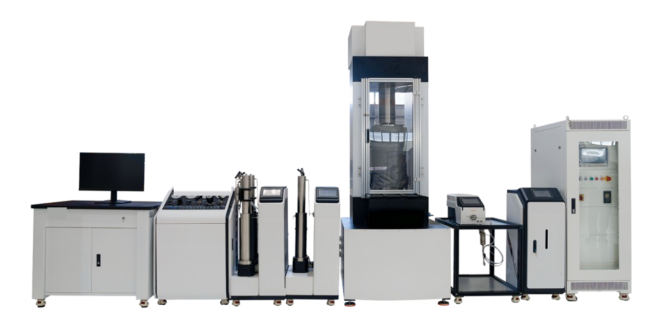

![[Harmonized 2026] HP Series - HPHT Triaxial Rock Mechanics System](/wa-data/public/shop/products/15/16/1615/images/4145/4145.970.png "[Harmonized 2026] HP Series - HPHT Triaxial Rock Mechanics System")
| Brand | Coretest |
