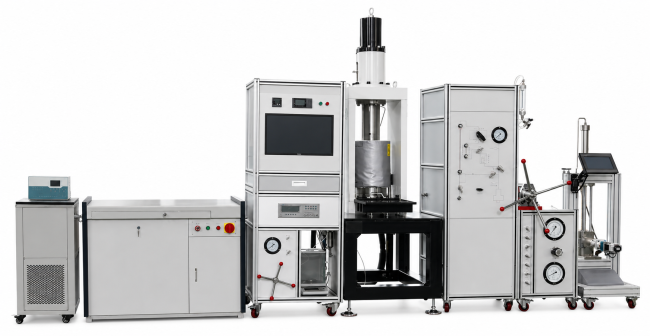

CC Series - CO₂ and CCUS Geomechanics System
Rock-mechanical and transport testing under CO₂ injection and storage-relevant conditions.
Applications and System Scope
- CO₂ injection under stress
- Caprock integrity testing
- Stress-dependent permeability
- Saturation and injectivity studies
- Coupled THM response
- Gaseous, liquid or supercritical CO₂ workflows
Configuration and Engineering Options
Standard configuration
- Rock-mechanics base platform
- CO₂-compatible triaxial cell
- Injection and back-pressure modules
- Pressure, flow and temperature measurement
- Automated test sequencing
- DAQ, alarms and controlled shutdown
Common engineering options
- Supercritical CO₂ package
- Corrosion-resistant alloys
- Heated lines and separators
- Compositional sampling interfaces
- Acoustic and electrical sensing
- Brine saturation and drainage
Automation and Data
- Programmable ramps, holds, cycles and stability criteria
- Independent closed-loop control of selected mechanical, pressure, flow and temperature channels
- Synchronized data acquisition with real-time plots and raw-data export
- Alarm handling, event logging and controlled shutdown logic
RFQ Inputs
Required information Examples Specimen Material, diameter, length, jacket and end interfaces Mechanical envelope Maximum load/stress, displacement, strain and rate Pressure and temperature Confining, pore/back pressure, minimum/maximum temperature Fluids and materials Fluid identity, phase, corrosivity, solids and compatibility Measurement and automation Strain, flow, acoustic/electrical options, sequence and data format Reference guidance only. Final guaranteed specifications are defined in the project-specific technical proposal and approved datasheet.
Temperature Configured for reservoir or subsea simulation Back pressure Automatic control recommended Measurements Mechanical, pressure, flow, temperature and optional composition Pressure Configured for target CO₂ phase and storage conditions Flow Constant-rate or constant-pressure injection Materials CO₂/brine-compatible wetted materials and seals
![[Harmonized 2026] CC Series - CO₂ and CCUS Geomechanics System](/wa-data/public/shop/products/18/16/1618/images/4148/4148.970.png "[Harmonized 2026] CC Series - CO₂ and CCUS Geomechanics System")
| Brand | Coretest |
