PVT simulation software

  • LEFWPVTSS calculates reservoir-fluid behavior from the fluid data entered by the operator. The software brings together experience in reservoir analysis, flow assurance and software engineering. It supports both prediction and validation of fluid properties.

    Fluid characterization and model tuning

    Composition results from hydrocarbon analysis can be entered to characterize a fluid. The program checks these entries against an internal database and highlights statistical anomalies. Measured PVT data can then refine the model. Suitable inputs include bubble point results and properties such as viscosity. Tuning adjusts the relationship between calculated results and experimental inputs so that they agree.

    Mixtures and PVT calculations

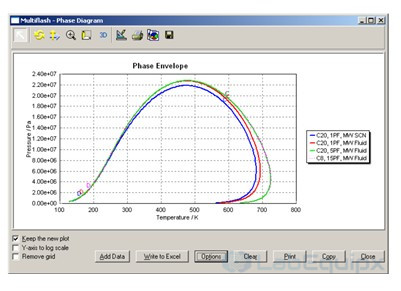

    The Fluid Mixing module accepts hydrocarbons with different compositions and calculates the composition after mixing. For PVT simulations, the operator selects an appropriate equation of state, such as Peng-Robinson or Redlich-Kwong. Available calculations include expansion at constant mass, depletion at constant volume, differential liberation and separator tests with multiple stages.

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

    • PVT simulation software
  • Optional precipitation modules extend LEFWPVTSS for flow assurance work. Separate modules address asphaltenes, wax and hydrates. Each uses the relevant fluid and operating data to evaluate conditions associated with solid formation.

    Asphaltene precipitation

    Asphaltenes form highly viscous solid hydrocarbon deposits. A reduction in pressure can cause precipitation inside a well or pipeline. This may happen during ordinary production or following gas injection. To calculate the asphaltene onset pressure (AOP), the module takes inputs such as live-oil composition, the temperature of the reservoir and the bubble point. These parameters describe the fluid and conditions used for the onset prediction.

    Wax precipitation

    Wax produces highly viscous solid hydrocarbon deposits when temperature falls. Wells and pipelines can experience this cooling during normal production. The module calculates the wax appearance temperature (WAT) from relevant input data. These include reservoir pressure and the composition of live oil, with its n-paraffin content included in the characterization.

    Hydrate formation

    Free water can combine with natural gas under high pressure and low temperature to produce solid gas hydrates. The hydrate module calculates formation and dissociation temperatures. Inputs include the composition of either live oil or gas, together with reservoir pressure and other required parameters. Calculations also allow the effects of commonly used hydrate inhibitors and the salinity of water to be simulated.
