    • High pressure syringe pump LEBTDP series

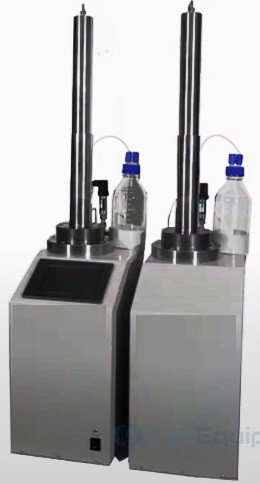

    • The LEBTDP-series benchtop dual syringe pumps are designed for applications requiring accurate pulseless flow and pressure control of both inorganic (brine, solvent...) and organic fluids (hydrocarbons, microbial solutions...). These pumps deliver specified pressure, flow rate and volume at both ambient and reservoir conditions, and can operate at either constant pressure or constant flow rate.

      In the former mode, a pre-defined specific volume can accurately be transferred. Pressurization is obtained via a motor-driven piston. The pump is delivered with two accurate pressure sensors, four hand valves for tank feeding and outlet delivery, a data acquisition and supervision software and a reservoir. Two optional automatic three-way air powered valves for tank feeding and outlet delivery can be provided for unlimited continuous flow.

    • Model Volume (ml) Pressure (psi)

      Max flow rate
      (ml/min)

      Mini flow rate
      (ml/min)
      LEBTDP20-40 2x20 40,000 7.5 0,0001
      LEBTDP50-30 2x50 30,000 20 0,0001
      LEBTDP100-10 2x100 10,000 45 0.0001
      LEBTDP125-20 2x125 20,000 30 0.0001
      LEBTDP175-15 2x175 15,000 30 0.0001
      LEBTDP250-10 2x250 10,000 60 0.0001
      LEBTDP500-5 2x500 5,000 130 0.0001
      LEBTDP1000 2x1000 1,875 250 0.0001
      Model

      Volume
      (ml)

      Pressure
      (psi)

      Max flow rate
      (ml/min)

      Mini flow rate
      (ml/min)
      LEBTDP150-30 2x150 30,000 20 0,0001
      LEBTDP300-15 2x300 15,000 40 0,0001
      LEBTDP250-20 2x250 20,000 35 0.0001
      LEBTDP500-10 2x500 10,000 70 0.0001
      LEBTDP1000-5 2x1000 5,000 130 0.0001

      Benefits

      • Compact
      • Extreme long life
      • Wide range of flow rate at maximum pressure
      • Touch screen panel (optional)
      • High pressure syringe pump LEBTDP series
    • High pressure syringe pump LEBTDP series
      ModelLEBTDP
      BrandLabEquipx
