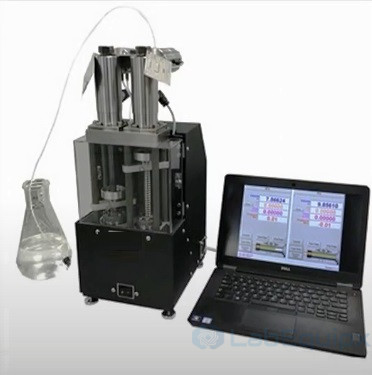

    • Continous flow pump LECF series

    • Continous flow pump LECF series deliver unparalleled accuracy and repeatability with the superior pulse-free metering that is critical for so many of todays production and research environments. Based on an advanced design that includes an innovative valve technology and two independently controlled motor-driven pistons, the pump set new standards in continuous, pulse-free operation. The Series exemplifies what you should demand from a metering pump.and pre-pressurizes the liquid, the other pumps fluid into the system, yielding an uninterrupted flow for the entirety of the process.

    • Model

      Volume
      (ml)

      Pressure
      (psi)

      Max flow rate
      (ml/min)

      Mini flow rate
      (ml/min)
      LECF-3 2x40 3,000 80 0.0001
      LECF-6 2x32 6,000 55 0.0001
      LECF-12 2x15 12,000 30 0.0001
      LECF-15 2x12 15,000 25 0.0001
      LECF-20 2x10 20,000 15 0.0001
      LECF-30 2x5 30,000 5 0.0001

      Benefits

      • Unlimited continuous flow
      • Pulse-free flow at all rates and pressures
      • Deliver or receive fluid
      • Control pump based on time, pressure, flow rate, fluid volume or events
      • Stainless steel or Hastelloy® wetted parts
      • Ambient and high temperatures
      • Continous flow pump LECF series
    • Continous flow pump LECF series
      ModelLECF
      BrandLabEquipx
