Micro high pressure piston sample cylinder LEMHP series

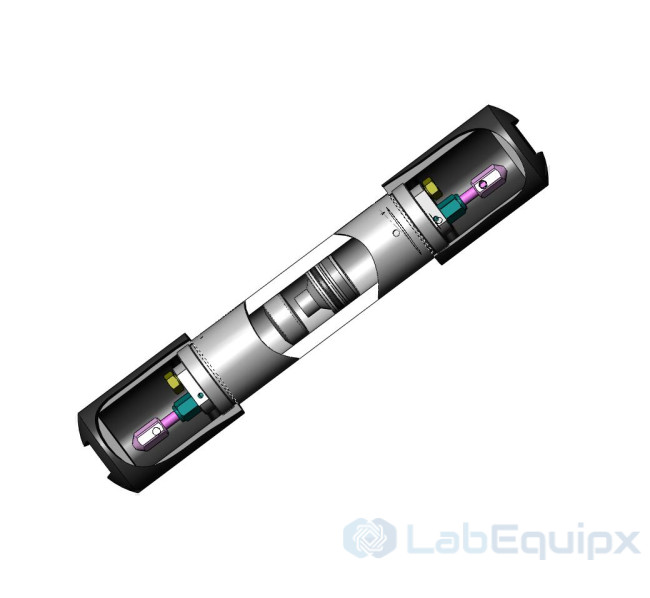

The LEMHP series sample cylinder is a small, floating piston type cylinder designed for the storage and transportation of reservoir fluid samples. The latter is isolated from the hydraulic driving fluid by a floating piston that, by virtue of its design minimizes friction and reduces pressure load.

Cylinders are fitted with a single inlet needle valve for the hydraulic driving fluid and a single inlet needle valve for the fluid sample. On the sample side, the piston incorporates a cylindrical groove to accommodate a mixing ring for agitation and optimize the dead volume. Valves are protected by end-caps from handling and transportation related damage. A carrying case can be provided to facilitate transportation.
