Floor stand stirred pressure vessel

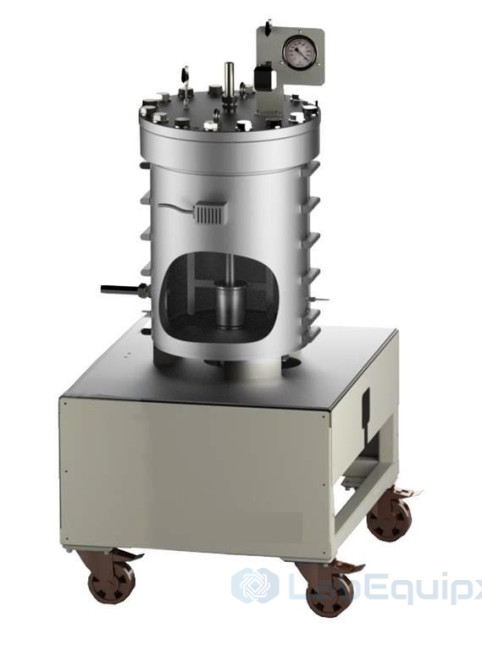

The floor stand stirred pressure vessel, LEFSV series, is a 50 liter pressure vessel with a magnetically driven stirrer, used to hold, mix and condition hydrocarbon fluid at pressure and temperature in flow assurance rigs. It is a component of the Solid Detection System (SDS), which identifies asphaltene and paraffin particles in a sample under production conditions of pressure, temperature and shear, and it feeds deposition flow loops that study how flow rate, inhibitor concentration, temperature and pressure change solid precipitation and deposition.

How it works

The vessel is rated 3,000 psi and up to 150 °C. Fluid enters and leaves through axial 1 in inlet and outlet ports, other sizes on request, and two lateral ports carry the SDS optical fibers so that solids can be detected in the stirred volume. A heavy-duty magnetic drive turns the stirrer at up to 200 rpm in fluids up to 10,000 cP without a shaft seal through the pressure wall. The vessel stands on its own floor frame and runs from 110-220 VAC, 50/60 Hz.

Two models are offered: LEFSV50-30-S with stainless steel wetted parts, 350 kg, and LEFSV50-30-H with Hastelloy wetted parts, 450 kg. Gaskets are FKM (Viton). Other features can be added to the design at the end user's request.

What is included

• 50 l pressure vessel on floor stand
• Magnetically driven stirrer, up to 200 rpm
• Axial inlet and outlet ports, 1 in
• Two lateral ports for SDS optical fibers

Specify for your project

• Wetted material, stainless steel or Hastelloy, from the fluid composition
• Operating pressure and temperature within 3,000 psi and 150 °C
• Fluid viscosity and required stirring speed
• Port sizes if other than 1 in
• Whether the SDS optical fiber set is supplied with the vessel
• Additional features to be added to the design

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Common features:

• Temperature range: up to 150°C
• Stirring speed: up to 200 RPM
• Fluid viscosity: 10,000 cP
• Gasket material: Viton
• Inlet and outlet connections: 1inch (other upon request)
• Power: 110-220 VAC, 50/60 Hz

* Other features can be added to the design upon end user's request.

Benefits

• Efficient stirring of large volumes of liquid under extreme pressure and temperature conditions
• Heavy duty magnetically driven stirrer
• Corrosion-free wetted parts
