TDL5M

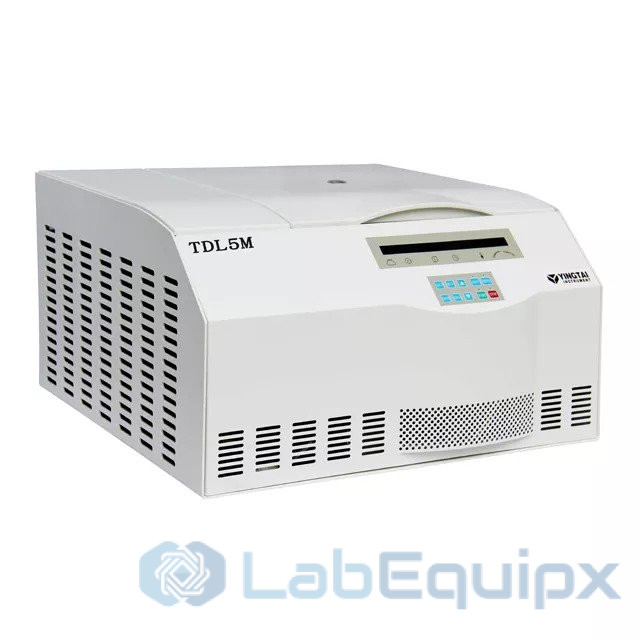

TDL5M Large Capacity Refrigerated Centrifuge
Features:
- Brushless frequency motor,in great torque, free maintenance, no powder pollution, quick in speed up and down.
- Imported compressors fluorine free,double cycle cooling,cold and hot alternating easily, free environment pollution and precise in temperature control.
- Microprocessor control, digital display which indicates the speed, time, RCF in operation, speed raising and reducing quickly, operate simply. Running parameter can be edited.
- 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
- Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
- Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
- There are several kinds of rotors for your choice, adapters can be designed by experimental requirements.
- 3 tiers protection steel cover and get the ideal centrifugation result.
TDL5M Technical Parameter：
Max. Speed 5000rpm Max. RCF 4730×g Max. Capacity 4×800ml( 4*450ml blood bags) Time Range 0~99h59min RPM/RCF Convert Yes Noise (dB) ≤ 65 Temperature -20℃-40℃ Acc/Dec 10 Kinds Speed Accuracy ±20r/min Temperature Accuracy ±1℃ Voltage(V/Hz) AC 220V/110V 50HZ/60HZ Size (W x D x Hmm) 700×715×420mm Net Weight(Kg) 125KG Certificates CE,ISO & Calibration report are available Matched Rotors for TDL5M
Order No. Rotor Max Speed (rpm) Max Volume Max. RCF（×g） NO30671 Swing Rotor 4000 4×800ml 3450 (Round Cup) NO30696 Swing Rotor 4000 4×500ml 3380 ( Round Cup) NO30679 Swing Rotor 4000 4×500ml 3310 (Square Cup) NO31494 Microplate Rotor 4000 4×4×96 Well 2840 NO31491 4000 2×4×96 Well 2490 NO31376 4000 2×3×48 Well 2300 NO30690 Swing Rotor 4000 4×30×7ml 3270 4×30×5ml 2890 4×18×10ml 3140 NO30607 Angle Rotor 5000 12×15ml 3080 NO30611 Angle Rotor 5000 6×50ml 2850 NO30640 Angle Rotor 5000 4×50ml 2520 NO30613 Angle Rotor 5000 4×100ml 2630 NO30639 Angle Rotor 5000 24×15ml 3500 NO30641 Angle Rotor 5000 12×50ml 3860 NO30614 Angle Rotor 5000 6×100ml 3130 NO30642 Angle Rotor 4000 12×100ml 2970 Adapter for 800ml and 500ml bucket
Volume Cup 5ml 7ml 10ml 15ml 50ml 800ml（Round Cup） 23pcs/cup 23 19 14 5 500ml（Round Cup） 18pcs/cup 18 14 9 3 500ml （Square Cup） 20pcs/cup 20 16 12 5

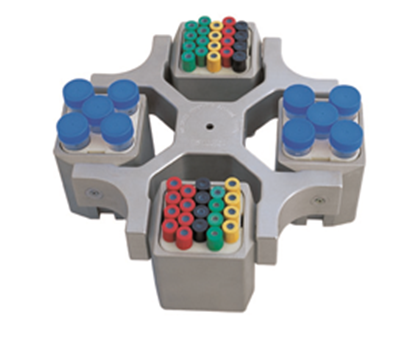

NO30696
4×500ml (Round Cup)
Adapter in 500ml cup
NO30679
4x500ml (Square Cup）
Adapter in 500ml cup
| Model | TDL5M |
| Brand | YINGTAI |
