TDL5B

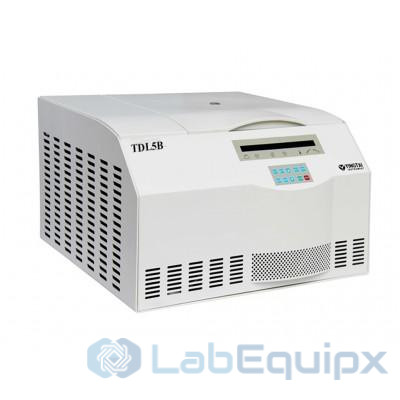

TDL5B refrigerated low speed centrifuge
Technical Parameters
Max speed： 5000rpm Max RCF： 4730xg Max volume 4x800ml Noise： ≤65dBA Timer 1～99h59min Net weight： 125 Kg Dimension(HxDxW)： 430×688×715mm Power supply AC 220V 50HZ 15A Temperature range -20℃~40℃ Temperature accuracy ±1℃ Speed accuracy： ±20rpm Package wooden box Matched Rotors for TDL5B
Order No. Model Max speed (rpm) Max Volume (ml) Max RCF (g) No.30671 Swing out rotor 4000 4x800ml (round cup) 3450 Adapters for 4x800ml (round cup) swing rotor for 5ml, 7ml, 10ml, 15ml, 50ml, 100ml, 250ml, 500ml tubes No.30696 Swing out rotor 4000 4x500ml (square cup) 3310 No.31277 Swing out rotor body Matched Buckets for the swing out rotor body 5000 4x50ml 4420 4x100ml 4000 8x50ml 2950 16x15ml 24x15ml 4000 24x10/7ml vacuum tube 2580 16x10ml vacuum tube Order No. Model Max speed (rpm) Max Volume (ml) Max RCF (g) No.31377 Matched Buckets for the swing out rotor body 5000 32x10ml vacuum tube 2580 32x7ml vacuum tube adapter 32x5ml vacuum tube adapter 24x10ml vacuum tube 2580 24x7ml vacuum tube adapter 24x5ml vacuum tube adapter 16x10ml vacuum tube 2580 16x7ml vacuum tube adapter 16x5ml vacuum tube ada
| Model | TDL5B |
| Brand | YINGTAI |
