TGL16

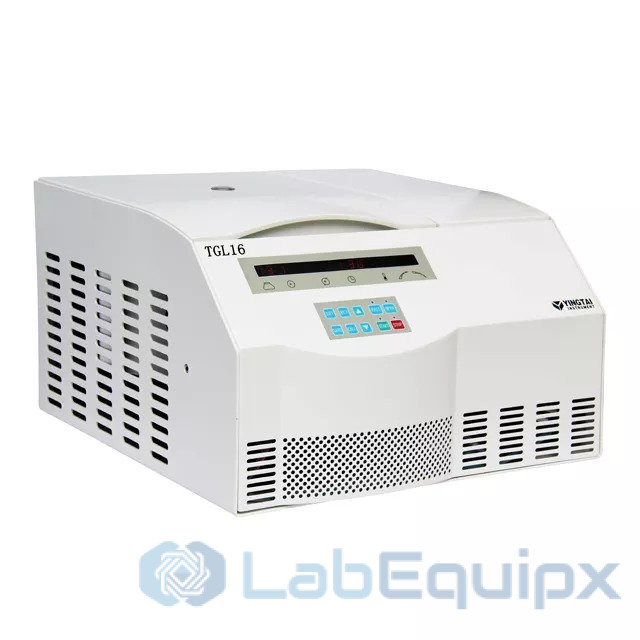

TGL16 Table Top High Speed Centrifuge
Features
- Brushless frequency motor, in great torque, free maintenance, no powder pollution, quick in speed up and down.
- Imported compressors fluorine free,double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
- Microprocessor control, digital display which indicates the temperature, speed, time, RCF in operation, speed raising and reducing quickly, operate simply. Running parameter can be edited.
- 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
- Automatically electric lid lock, over speed, over temperature protection and imbalance protection.
- High quality steel centrifuge body , stainless steel chamber, built-in stainless steel explosion-proof protect sleeve , 3 tiers protection,safe and reliable.
- Rotor is connected to spindle by specialized spring taper sleeve, loading simple and quick, no direction
- With pre-cooling and get the ideal centrifugation result.
TGL16 Technical Parameter：
Max. Speed 16000rpm Max. RCF 20600×g Max. Capacity 6×100ml Time Range 1~9h59min RPM/RCF Convert Yes Noise (dB) ≤ 58 Acc/Dec 10 Kinds Speed Accuracy ±20r/min Temperature Accuracy ±1℃ Voltage(V/Hz) AC 220V/110V 50HZ/60HZ Size (L x W x Hmm) 610×570×370mm Net Weight(Kg) 82KG Certificates TUV CE,ISO 9001,ISO13485 & Calibration report are available Matched Rotor for TGL16
Order No Rotor Max speed (rpm) Max Volume (ml) Max RCF (g) G16-1 Angle rotor 14000 4×8PCR 12070 G16-2 Angle rotor 13000 6×8PCR 16080 G16-3 Angle rotor 14000 8×8PCR 13390 G16-4 Angle rotor 13000 12×8PCR 17220 G16-5 Angle Rotor 15000 30×0.5ml 18510 G16-6 Angle Rotor 14000 40×0.5ml 19970 G16-7 Angle Rotor 16000 12×1.5/2ml 17940 G16-8 Angle Rotor 15000 24×1.5/2ml 20600 G16-9 Angle Rotor 13500 30×1.5/2ml 19340 G16-10 Angle Rotor 11000 48×1.5/2ml 12840 G16-11 Angle Rotor 15000 16×5ml 19350 G16-12 Angle Rotor 14000 12×7ml 16370 G16-13 Angle Rotor 14000 6×10ml 16460 G16-14 Angle Rotor 12000 12×10ml 14510 G16-15 Angle Rotor 10000 12×15ml 11840 G16-16 Angle Rotor 5000 24×15ml 3080 G16-17 Angle Rotor 5000 30×15ml 3830 G16-18 Angle Rotor 12000 8×20ml 14510 G16-19 Angle Rotor 12000 6×30ml 14000 G16-20 Angle Rotor 11000 6×50ml 13480 G16-21 Angle Rotor 12000 6×70ml 10810 G16-22 Angle Rotor 8000 6×100ml 7280 G16-23 Angle Rotor 12000 24 pieces capillary vessel 15800 G16-24 Microplate rotor 4000 2×3×48 Well 2300
| Model | TGL16 |
| Brand | YINGTAI |
