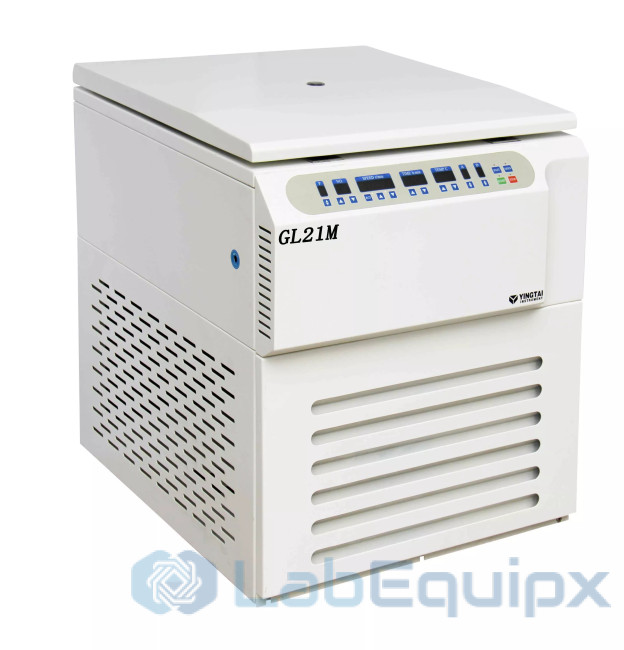

    • GL21M Floor Standing High Speed Refrigerated Centrifuge

    • Features

      1. Brushless frequency motor for model GL21M which in great torque, free maintenance, no powder pollution, quick in speed up and down.
      2. The flexible axle driven system which drive the rotor directly, smooth in operation, low noise and small vibration.
      3. Import compressors fluorine free, double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control.
      4. There are 10 kinds of program and 10 kinds of acceleration and deceleration for your choice.
      5. Micro computer control system, LED(digital) display the temperature、time and speed.
      6. Automatically electric lid lock, compact design, super speed and imbalance protection.
      7. The centrifuge body is made of high-quality steel, safe and reliable.

    • GL21M Technical Parameter：

      Max. Speed 21000rpm
      Max. RCF 46140×g
      Max. Capacity 4×1000ml
      Timer 1~9h59min
      RPM/RCF Convert Yes
      Noise (dB) ≤ 65
      Temperature Range -20~40℃
      Acc/Dec 10 Kinds
      Speed Accuracy ±20r/min
      Temperature Accuracy ±1℃
      Voltage(V/Hz) AC 220V 50HZ/60HZ
      Size (L x W x Hmm) 800×740×930mm
      Net Weight(Kg) 300KG
      Certificates CE,ISO & Calibration report are available

      Matched Rotors for GL21M

      Order No Rotors Type Max speed r/min Volume (ml) Max RCF (g）
      21M-1 Angle rotor 21000 12x10ml 44440
      21M-2 Angle rotor 20000 16x10ml 46140
      21M-3 Angle rotor 20000 8x30/20ml 42040
      21M-4 Angle rotor 20000 6x50ml 44700
      21M-5 Angle rotor 15000 8×50ml 27540
      21M-6 Angle rotor 15000 6x70ml 25480
      21M-7 Angle rotor 12000 8×100ml 19610
      21M-8 Angle rotor 11000 4×300ml 18120
      21M-9 Angle rotor 10000 6×300ml 15730
      21M-10 Angle rotor 9000 6×500ml 14860
      21M-11 Swing Rotor 4000 4×800ml 3450
      21M-12 Swing Rotor 15000 4×5ml 21670
      21M-13 Swing Rotor 13000 4×30ml 23580
      21M-14 Swing Rotor 10000 4×50ml 16240
      21M-15 Angle rotor 7000 4x1000ml 9450

      Order No Rotor Type Max speed r/min Max Volume (ml) Max RCF (g） Standard Flow Deposit
      No30128 Continuous centrifugal rotor 17000 1000ml 31390 285-350ml/min 500ml
      No30129 Continuous centrifugal rotor 14000 1800ml 21710 220-500ml/min 500ml
      No30130 Continuous centrifugal rotor 8000 3000ml 9450 220-500ml/min 1600ml
      No30131 Continuous centrifugal rotor 8000 1800ml 8600 220-500ml/min 1000ml

    • Brochure of GL21M centrifuge.pdf

      • GL21M Floor Standing High Speed Refrigerated Centrifuge
    • GL21M Floor Standing High Speed Refrigerated Centrifuge
      ModelGL21M
      BrandYINGTAI
