GL20

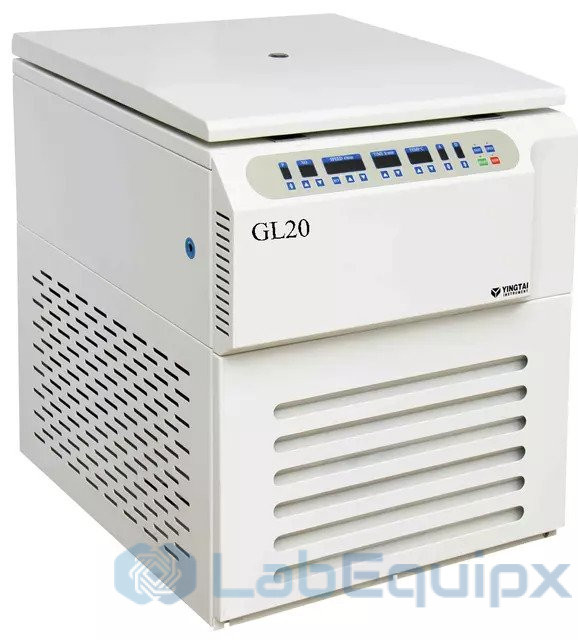

Floor Type High Speed & Low Speed Universal Refrigerated Centrifuge
Features
- Brushless frequency motor,in great torque, free maintenance, no powder pollution, quick in speed up and down.
- Imported compressors fluorine free,double cycle cooling, cold and hot alternating easily, free environment pollution and precise in temperature control
- Microprocessor control, digital display which indicates the temperature,speed, time, RCF in operation, speed raising and reducing quickly, operate simply. Running parameter can be edited.
- 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
- Automatically electric lid lock,overspeed, over temperature protection and imbalance protection.
- High quality steel centrifuge body , stainless steel chamber, built-in stainless steel explosion-proof protect inner sleeve ,3 tiers protection,safe and reliable.
- Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
GL20 Technical Parameter：
Max. Speed 21000rpm Max. RCF 30910×g Max. Capacity 4×800ml Time Range 1~9h59min RPM/RCF Convert Yes Noise (dB) ≤ 60 Temperature -20℃~40℃ Acc/Dec 10 Kinds Speed Accuracy ±20r/min Temperature Accuracy ±1℃ Voltage(V/Hz) AC 220V/110V 50HZ/60HZ Size (W x D x Hmm) 680×540×830mm Net Weight(Kg) 170KG Certificates CE,ISO & Calibration report are available Matched Rotors for GL20
Order No Rotor Rotor Max Speed(r/min) Volume (ml) RCF (×g) G20-1 Swing Rotor 4000 4×800ml 3450 G20-2 Microplate rotor 4000 4×4×96 well 2940 G20-3 Microplate rotor 4000 2×4×96 well 3210 G20-4 Microplate rotor 4000 2×3×48 well 2300 G20-5 Swing rotor 4000 4×40×7ml vacuum tube 3270 G20-6 4000 4×40×5ml vacuum tube 2890 G20-7 4000 4×28×10ml vacuum tube 3130 G20-8 Swing Rotor 4000 Fat bottle 3830 G20-9 Fixed Rotor 16000 4×8PCR 15760 G20-10 Fixed Rotor 15000 6×8PCR 21420 G20-11 Fixed Rotor 16000 8×8PCR 17480 G20-12 Fixed Rotor 15000 12×8PCR 22930 G20-13 Fixed Rotor 15000 40×0.5ml 22920 G20-14 Fixed Rotor 21000 12×1.5ml 30910 G20-15 Fixed Rotor 16000 24×1.5ml 23440 G20-16 Fixed Rotor 14000 30×1.5ml 20800 G20-17 Fixed Rotor 13000 48×1.5ml 17930 G20-18 Fixed Rotor 16000 16×5ml 22020 G20-19 Fixed Rotor 16000 6×10ml 21500 G20-20 Fixed Rotor 15000 12×10ml 22680 G20-21 Fixed Rotor 13000 16×10ml 19490 G20-22 Fixed Rotor 13000 8×15ml 17790 G20-23 Fixed Rotor 11000 12×15ml 14330 G20-24 Fixed Rotor 5000 24×15ml 3500 G20-25 Fixed Rotor 5000 30×15ml 3830 G20-26 Fixed Rotor 14000 6×30ml 19060 G20-27 Fixed Rotor 13000 6×50ml(conical) 18840 G20-28 Fixed Rotor 13000 6×50ml(round) 18730 G20-29 Fixed Rotor 5000 12×50ml 3860 G20-30 Fixed Rotor 4000 24×50ml 2970 G20-31 Fixed Rotor 13000 4×85ml 18940 G20-32 Fixed Rotor 12000 4×100ml 14850 G20-33 Fixed Rotor 10000 6×100ml 11380 G20-34 Fixed Rotor 4000 12×100ml 2970 G20-35 Fixed Rotor 12000 24 capillaries 15800 G20-36 Swing Rotor 15000 4×5ml 19920 G20-37 Vertical rotor 16000 16×5ml 16450 G20-38 Vertical rotor 14000 8×30ml 19750
| Model | GL20 |
| Brand | YINGTAI |
