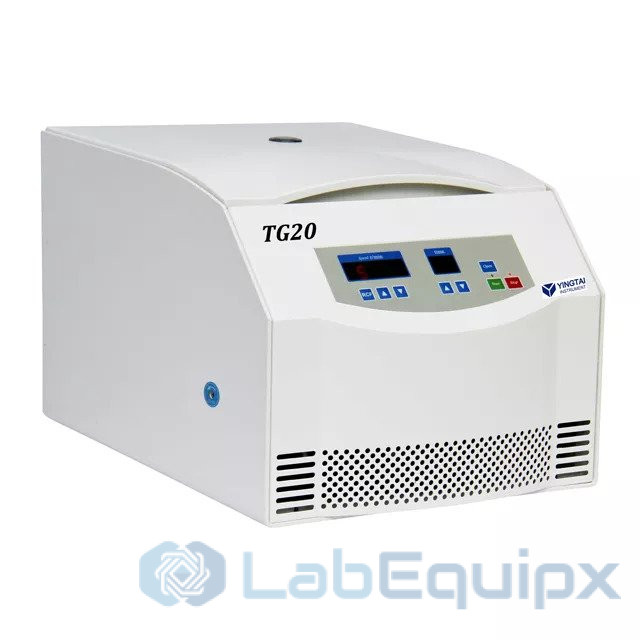

    • TG20 Table Top High Speed Centrifuge

    • Features:

      1. Brushless frequency motor with simpler construction, more reliable performance, longer life and quietly running.
      2. Automatically electric lid lock, super speed, over temperature protection and imbalance protection. The centrifuge body is made of high quality steel, safe and reliable.
      3. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction, safe and reliable.
      4. Microprocessor control.
      5. Digital display in time, speed and RCF.
      6. 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice.
      7. 3 tiers protection steel cover, stainless steel chamber, safe and reliable.

    • TG20Technical Parameter：

      Max. Speed 21000rpm
      Max. RCF 30910×g
      Max. Capacity 6×100ml
      Time Range 0~99min
      RPM/RCF Convert Yes
      Noise (dB) ≤60
      Temperature Normal
      Acc/Dec 10 Kinds
      Speed Accuracy ±20r/min
      Temperature Accuracy /
      Voltage(V/Hz) AC 220V/110V 50HZ/60HZ
      Size (W x D x Hmm) 513×370×320mm
      Net Weight/Gross weight(Kg) 43KG/60KG
      Certificates CE,ISO & Calibration report are available

      Matched Rotors for TG20

      Order no Rotor Max Speed (r/min) Volume (ml) Max RCF (*g)
      G20-1 Fixed Rotor 16000 4×8PCR 15760
      G20-2 Fixed Rotor 15000 6×8PCR 21420
      G20-3 Fixed Rotor 16000 8×8PCR 17480
      G20-4 Fixed Rotor 15000 12×8PCR 22930
      G20-5 Fixed Rotor 21000 12×1.5/2ml 30910
      G20-6 Fixed Rotor 15000 40×0.5ml 22920
      G20-7 Fixed Rotor 17000 24×1.5/2ml 26460
      G20-8 Fixed Rotor 13500 30×1.5/2ml 19340
      G20-9 Fixed Rotor 13000 48×1.5/2ml 17930
      G20-10 Fixed Rotor 16000 16×5ml 22020
      G20-11 Fixed Rotor 16000 6×10ml 21500
      G20-12 Fixed Rotor 15000 12×10ml 22680
      G20-13 Fixed Rotor 16000 12×7ml 21380
      G20-14 Fixed Rotor 13000 16×10ml 19490
      G20-15 Fixed Rotor 11000 12×15ml 14330
      G20-16 Fixed Rotor 13000 8×15ml(conical) 17790
      G20-17 Fixed Rotor 5000 24×15ml 3500
      G20-18 Fixed Rotor 15000 8×20ml 22680
      G20-19 Fixed Rotor 5000 30×15ml 3830
      G20-20 Fixed Rotor 14000 6×30ml 19060
      G20-21 Fixed Rotor 13000 6×50ml(conical) 18840
      G20-22 Fixed Rotor 13000 6×50ml(round) 18730
      G20-23 Fixed Rotor 13000 4×85ml 18940
      G20-24 Fixed Rotor 12000 6×70ml 15570
      G20-25 Fixed Rotor 12000 4×100ml 14850
      G20-26 Fixed Rotor 10000 6×100ml 11380
      G20-27 Fixed Rotor 18000 30×0.5ml 26660
      G20-28 Swing Rotor 13000 4×5ml 14960
      G20-29 Vertical Rotor 16000 16×5ml 16540
      G20-30 Vertical Rotor 14000 8×30ml 16450
      G20-31 Microplate Rotor 4000 2×3×48（well） 2300

    • Brochure of TG20 centrifuge.pdf

      • TG20 Table Top High Speed Centrifuge
    • TG20 Table Top High Speed Centrifuge
      ModelTG20
      BrandYINGTAI
