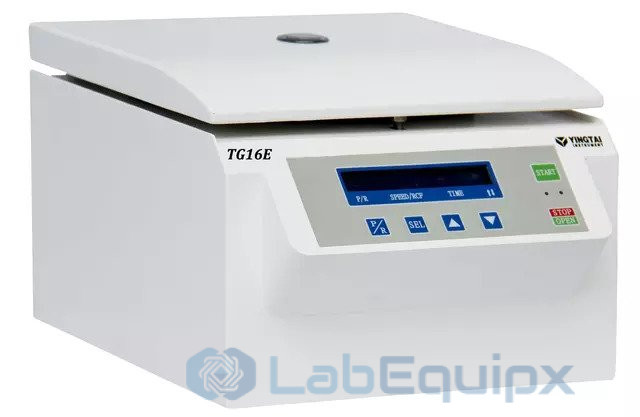

    • Micro High Speed Centrifuge TG16E

    • Features:

      1. Brushless motor, no pollution, free-maintenance.
      2. Microprocessor control, LCD display which indicates the speed, time, RCF in operation, 10 kinds of brake setting, operate simply.
      3. Electric lid lock, super speed, imbalance protection. The centrifuge body is made of high quality steel, stainless steel chamber, safe and reliable.
      4. Rotor is connected to spindle by specialized taper sleeve, loading simple and quick, no direction.
      5. 3 tiers protection steel cover and get the ideal centrifugation result.

    • TG16E Technical Parameter：

      Max. Speed 16000rpm
      Max. RCF 19040×g
      Max. Capacity 6×10ml
      Time Range 0~99min
      RPM/RCF Convert Yes
      Noise (dB) ≤ 65
      Acc/Dec 10 Kinds
      Speed Accuracy ±20r/min
      Voltage(V/Hz) AC 220V/110V 50HZ/60HZ
      Size (W x D x Hmm) 370×290×215mm
      Net Weight(Kg) 16KG
      Certificates CE,ISO & Calibration report are available

      Matched Rotors for TG16E

      Order No Rotor Max speed (rpm) Max Volume(ml) Max RCF (g)
      16E+1 Angle rotor 14000 4×8PCR 12070
      16E-2 Angle Rotor 16000 12×1.5/2ml 17940
      16E-3 Angle Rotor 14000 24×1.5/2ml 17950
      16E-4 Angle Rotor 16000 10×5ml 17880
      16E-5 Angle Rotor 13000 6×10ml 14190
      16E-6 Angle Rotor 12000 24 pieces capillary vessel 15800
      16E-7 Angle Rotor 16000 40x0.2ml 19040
      16E-8 Angle Rotor 13000 40x0.5ml 17210
      16E-9 Angle Rotor 13000 30x0.5ml 13900
      • Micro High Speed Centrifuge TG16E
    • Micro High Speed Centrifuge TG16E
      ModelTG16E
      BrandYINGTAI
