Gas Migration Tester

Gas Migration Tester

>> The instrument adopts a large-size touch screen, through which the test data and curve graph can be displayed and recorded directly and clearly.
>> A gas flowmeter is used to measure the volume of gas that migrates into cement slurry.
>> Precision pressure transducer ensures more accurate data during tests.
>> Surface of this instrument is made of stainless steel for easy cleaning and better durability.
>> The operator can connect the instrument with PC via internet cable and set, check and save testing data on PC.
>> High-quality components

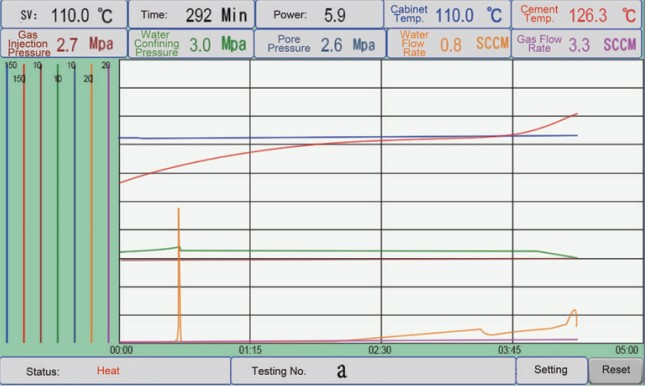

>> Observe Test Data

It’s convenient to observe test data and curve graphs; users can take screenshots and output to save them.
>> Set Test Parameters

Users can set parameters through the touch screen instead of complicated buttons, making the operation simple and straightforward.

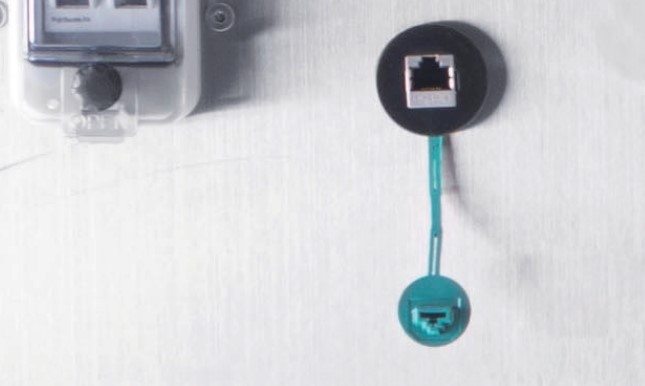

>> Design of Ethernet Port


The instrument has an Ethernet port used to connect to a computer, making it easy to record test data and realize remote upgrade.

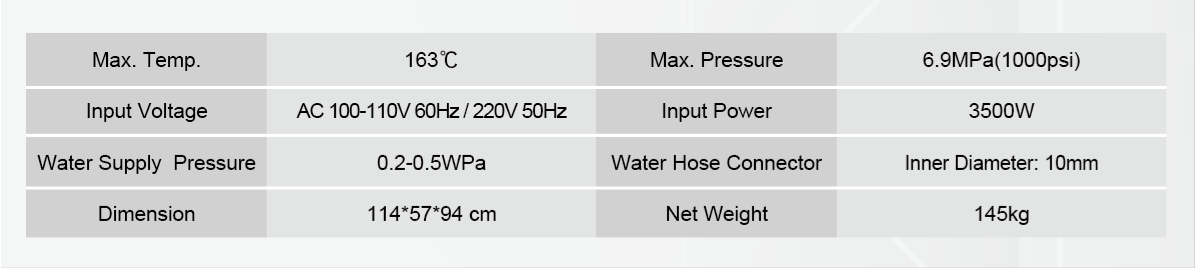

>> Specifications


Quality-oriented, Easily Operated
