Constant Speed Mixer NHJQ, PLC and Touch Screen

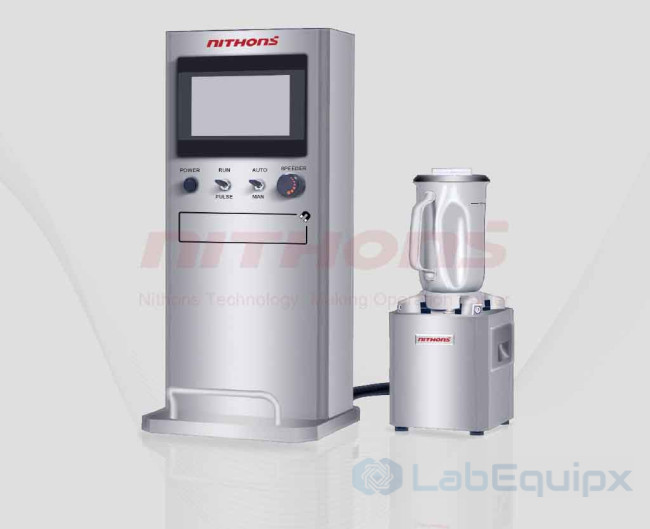

  • The Constant Speed Mixer 800237 is a laboratory blender for preparing cement slurry before cementing tests. A motor turns the blending assembly in the mixing cup, and a programmable logic controller (PLC) runs the mixing sequence. The operator can switch between automatic mode, where the PLC follows the stored sequence, and manual mode.

    Design

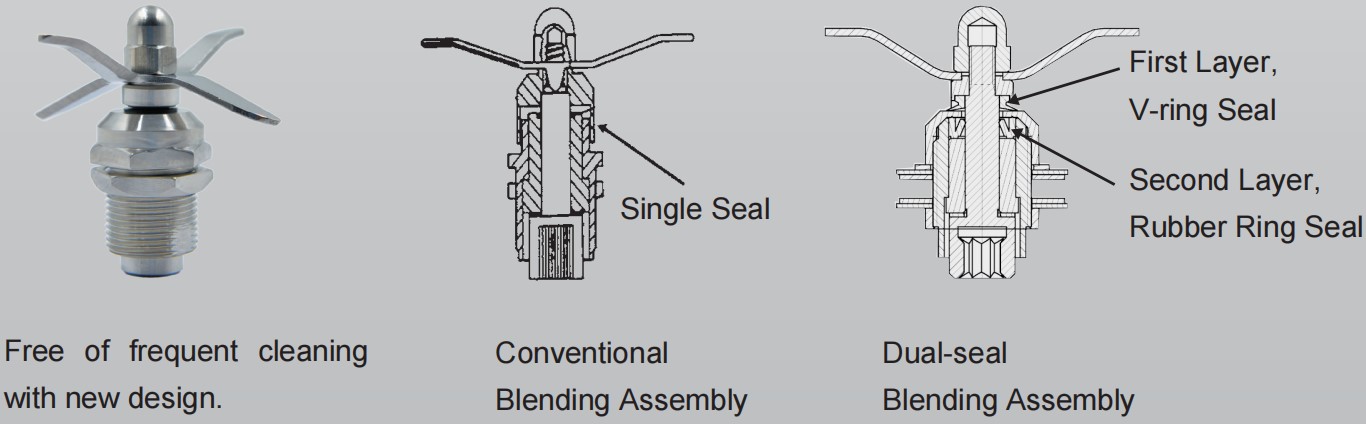

    The blending assembly carries two seals. The dual seal reduces how often the assembly has to be cleaned and extends its service life. Control is by PLC, so the mixing logic is software: special user requirements can be programmed in, and the functions of the instrument can be upgraded later by programming instead of by changing hardware.

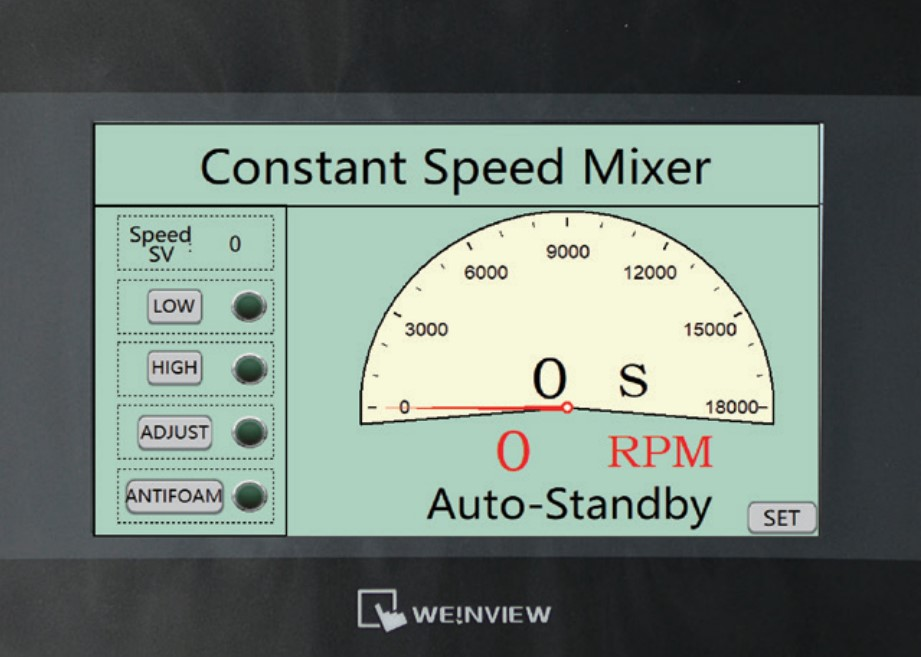

    All operation is through a touch screen. The operator sets test parameters on the screen and reads test data on the same screen during the run.

    Operating functions

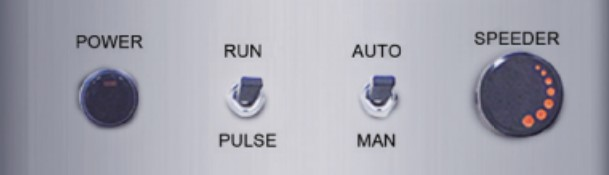

    • Automatic and manual modes, switched from the touch screen
    • Low-speed start-up by default, which prevents slurry from splashing out of the cup
    • Anti-foam function
    • Pulse cleaning function for the blending assembly
    • Test parameter entry and test data display on the touch screen

    Specify for your project

    • Operating mode required: automatic, manual or both
    • Mixing sequences to be stored in the PLC
    • Any special functions to be programmed beyond pulse cleaning, anti-foam and anti-splash
    • Mains supply at the installation site
    • Spare blending assemblies and seals

    This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.
