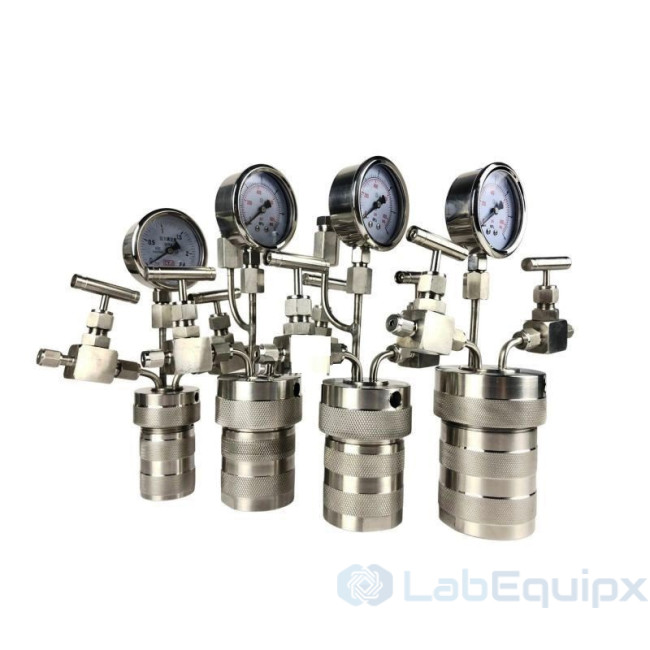

Thread Mounted Non Stirred Pressure Autoclaves LETMNSPA
Thread Mounted Non Stirred Pressure Autoclaves LETMNSPA - the reactor is suitable for petrochemical, pharmaceutical, polymer synthesis metallurgy and other fields, and can be used for catalytic reaction, polymerization reactor, supercritical reactor, high temperature and high pressure reaction, hydrogenation or inert gas protection reaction, etc.
Structure characteristics:
- Inlet gas valve: gas inlet and outlet needle valve, connected to 3mm or 6mm ferrule.
- Sampling valve: It is convenient to take samples at any time during the reaction and analyze the reaction process to connect 3mm or 6mm ferrules (optional).
- Exhaust valve: It is convenient to vacuum and replace the gas before the reaction. After the reaction, it is used as a vent valve.
- Stainless steel pressure gauge: real-time monitoring of reaction pressure.
- Temperature probe optional: deep inside the reactor body, real-time monitoring of reaction temperature.
Specifications:
Model LETMNSPA-25 LETMNSPA-50 LETMNSPA-100 LETMNSPA-150 LETMNSPA-200 LETMNSPA-250 LETMNSPA-300 LETMNSPA-500 LETMNSPA-1000 Volume 25ml 50ml 100ml 150ml 200ml 250ml 300ml 500ml 1000ml Max temperature Standard 300 °C ( <240 °C For PTFE liner) Operate pressure <6 Mpa (60 bar) Material Standard SS304 (PTFE liner, titanium. C-276 optional) Stirring speed Inner PTFE magnetic stirrer; 60-2400rpm Top cover type Cover lid with thread connect Valve type Ferrule-type needle valve, connect with 6mm pipeline Opening port 1*gas port with needle valve; 1*liquid port with needle valve & dip tube; 1*Pressure gauge (6mpa range) : 1 * rupture disc (~mpa opening pressure); 1* temp. Measure port Voltage 220V 50Hz: 110V 60Hz optional * The dimensions and parameters in the table are for reference only, and the actual size must be the same as the finals.
| Model | LETMNSPA |
| Brand | LabEquipx |
