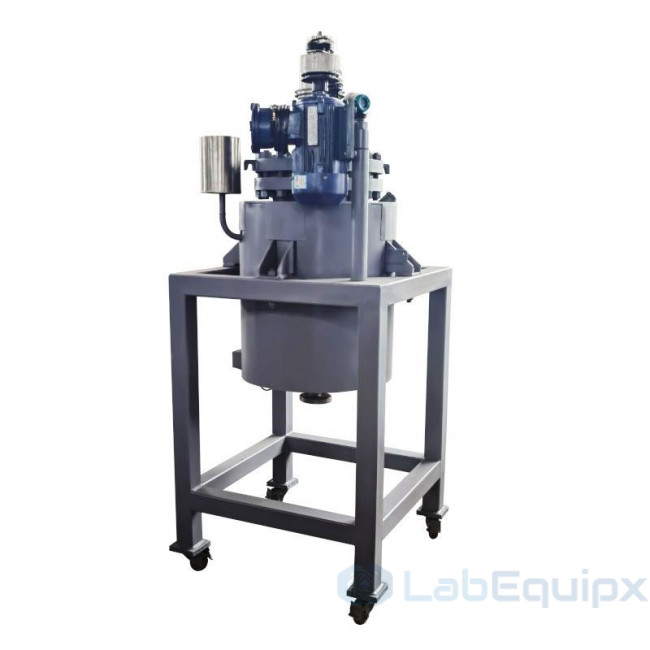

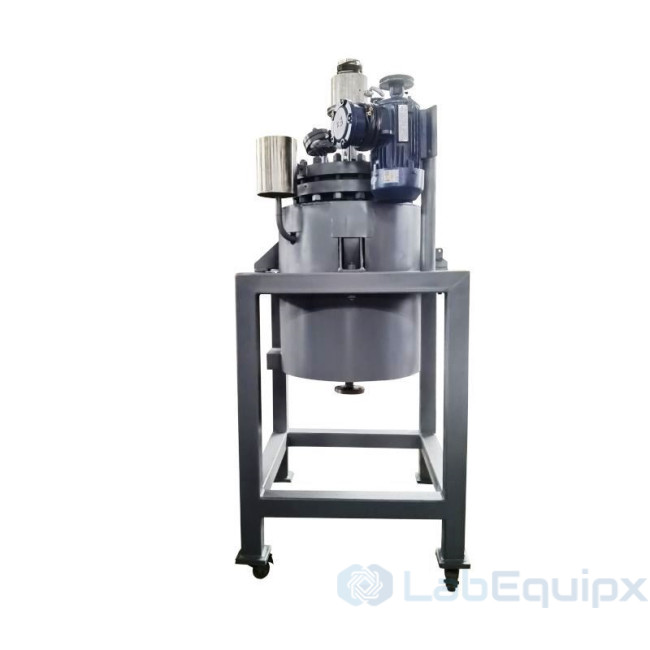

Pilot Scale Electric Heating Stirred Pressure Reactor LEPSEHSPR
Pilot Scale Electric Heating Stirred Pressure Reactor LEPSEHSPR - pressure reactors for pilot and small-scale production，which is an important development process from experimental research to industrial production.
The stainless steel pilot reactor meets most mid-reactions, with beautiful appearance and competitive price, and can be customized according to customer requirements. For systems of this scale, safety is very important, especially when hydrogen and other reactions are carried out under higher pressure.
This series products are pilot reaction devices made of stainless steel, including pilot high pressure reactor, heating system, cooling system and control system, which are mainly applied to pilot reaction process, it is an important development process from experiment to industrial production. Pilot-scale autoclave adopts magnetic stirring seal, which is suitable for chemical reactions with high sealing requirements, toxic and explosive.
Specification of 50liters Reactor
- Volume:50liters
- Max pressure:250bar
- Max temperature:350℃
- Material:SS304,SS316,Hastelloy C276, PTFE liner or other alloys
- Heating type:Electric heating, Oil heating
- Stirrer:Propeller,Paddle,Turbine,Gas induction,customized
- Jacketed type: Conventional or Limpet coil
Product Features
Stainless steel high pressure stirred jacketed reactor can set the following options：
- Reactor lift / lowering device
- Magnetic and mechanical seal
- Various heating jacket: standard, half-pipe, limpet
- Various impeller type available for mixing mission
- Various Anti-corrosion alloy material available
- Leg and lug support available
- Spiral, single layer tube condenser available
Parameters
Model No. LEPSEHSPR-50 LEPSEHSPR-100 LEPSEHSPR-200 LEPSEHSPR-300 LEPSEHSPR-500 Nominal Capacity 50 L 100 L 200 L 300 L 500 L Design Pressure -0.1-250 bar customized Material Clad SS304, SS316 or other alloys Design Temperature 0~350°C customized Stirring Speed 0-500 rpm 0-500 rpm 0-450 rpm 0-450 rpm 0-450 rpm Motor Power 1.5 kW 2.2 kW 2.2 kW 4 kW 5.5 kW Heating Method Standard electric heating (Thermal oil, steam, far infrared heating available) Head type Flat cover or elliptical flange type Impeller type (Optional) Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc Cooling type (Optional) Internal spiral cooling cools Discharging type (Optional) Discharging from bottom or up discharge by pressure. Control panel PID temperature display and control, accuracy±1 °С; Stirring speed display; Operation time display; Heating voltage and current display. Standard Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve Dip Tube: Safety Rupture Disc: Cooling Coil Optional Solid plug port, constant feeding tank, safety valve, external condenser. Reflux pipeline, drain valve, receiver, etc.
| Model | LEPSEHSPR |
| Brand | LabEquipx |
