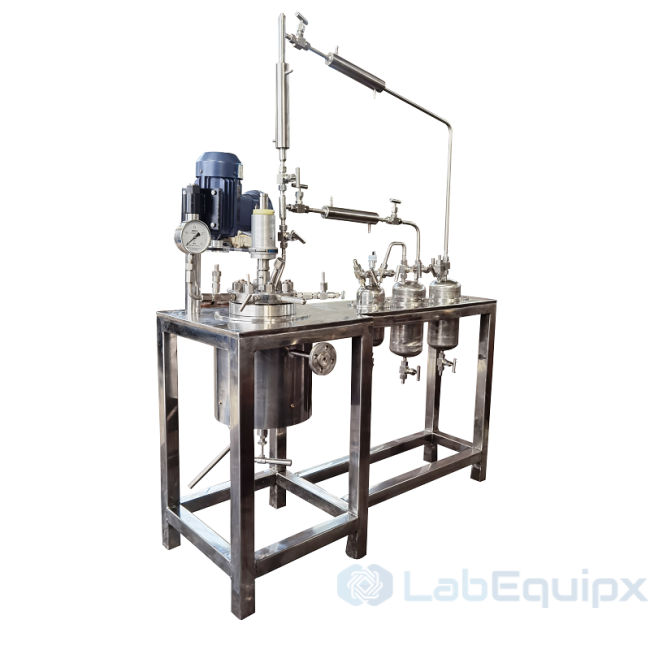

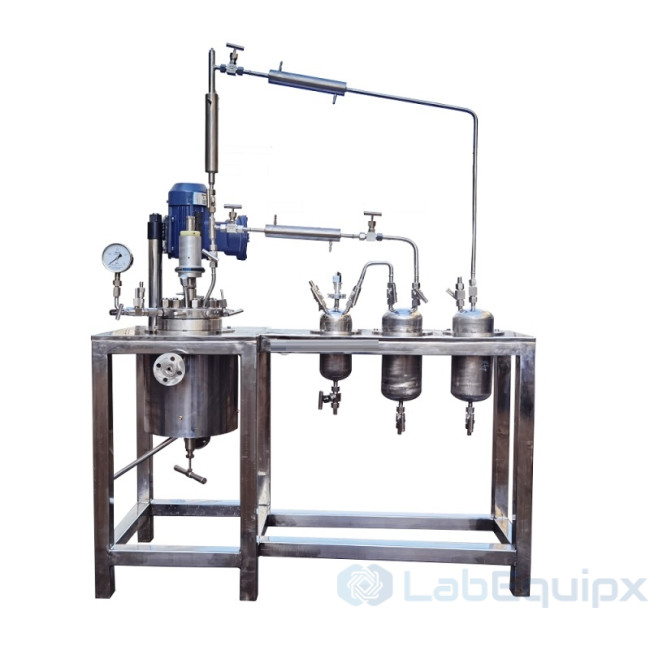

Lab Scale Esterification Polycondensation Reactors LELSEPR
Lab Scale Esterification Polycondensation Reactors LELSEPR - Hot Sale turnkey stainless steel esterification polycondensation. The reaction kettle for ester polycondensation is a reaction device that completes the ester and polycondensation at the same time.
- Reflux model: The external condenser consists of a tube line connect to the vapor outlet port of the GSH high pressure reactor, helping the vapor to condense, then the oulet port of the condenser connect the reflux port of the cover of the reactor. Condensed vapors are returned directly to the vessel. This system helps the mixture to fully react until it is completely reacted.
- Receiving model: This series of reactor system includes the GSH laboratory high pressure reactor, equipped with multi-stage condenser and recovery tank, which can be used in the application of vapor condensation recovery. Condensed vapors from the condenser, can be condensed and collected in the receiver, from which it can be withdrawn through a bottom valve.
Features
- Heating area:0.05m2~6m2 (Large-scale available)
- Continuous distillation process; Low fouling on evaporator wall
- Trace heating of individual sections (feed, residue and distillate) for melting or viscous products
- SPE constructed of stainless steel or other special materials and alloys
- Different wiper systems are selected depending on the product properties
- Floor stand or moveable cart design
- Volume 500ml to 50liters
- Pressure Мах.300Ьаг
- Temperature 350 °С
- Material SS304 /SS316
- Heating type Electric Heating
- Cooling type Internal spiral coils
- Impeller type Propeller, Turbine, Anchor type
Type LELSEPR-0.1-1 LELSEPR-1-10 LELSEPR-10-25 LELSEPR-25-50 Volume{L) 0.1-1 1-10 10-25 25-50 Working pressure(MPa) -0.1-30 -0.1-30 -0.1-30 -0.1-30 Motor power(W) 40-80 80-200 300-750 1100 Heating power(KW) 0.1-1 1-3 3-6 4-9 Working temperature(°C) -196-500 Stirring speed(r/min) 0-1500 Heating type Electric heating, thermal oil heating available Cooling Method Spiral coils(Single coils, serpentine coils available) Charging type Charging from above, discharging from bottom. Stirring type Customized anchor-type, frame-type, propeller type, turbine-type scraper-type or paddle-type...etc Seal type Magnetic seal, mechanical seal Motor General DC motor. DC servomotor or explosion-proof motor according to customers requirements. Controller Device Temperature time and heating voltage display Temperature adjustment control. accuracy±1 °С Stirring speed display and control.Others Standard fittings Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve:Gas Release Valve Dip Tube; Safety Rupture Disc; Cooling Coil
| Model | LELSEPR |
| Brand | LabEquipx |
