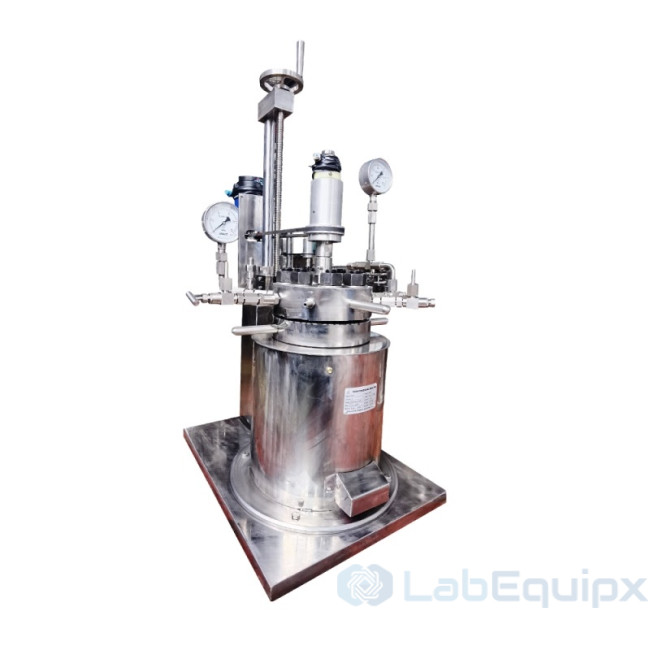

Lab Pressure Reactors with Head Lifting & Lowering LELPRHLL
Lab Pressure Reactors with Head Lifting & Lowering LELPRHLL - this series stirred pressure reactor is widely used in laboratory application, which have features as fellows:
- 100% Sealing. Zero leakage. Low energy cost magnetic stirrer
- Electric heating furnace is fixed on the moveable frameplate
- Vessel body can be manual move outside for weighing
- Top cover lid & magnetic agitator can be manual lifting & lowering
Application:
- Chemical development；
- High pressure none leakage application；
- Corrosion test, and catalyst test；
- Scale-up；Pilot-Plant; Small-scale production
- Hydrogenation；Catalytic Reaction；Polymerization.
Salient features
- Lab high pressure reactor autoclaves with manual lift
- 100ml to 5 liters volume;
- Pressure up to 350bar;
- Temperature up to 350℃；
- Standard materials：SS-304, SS-316, other alloys, PTFE, PPL liner, etc.
- Pressure gauge display and temperature sensor.

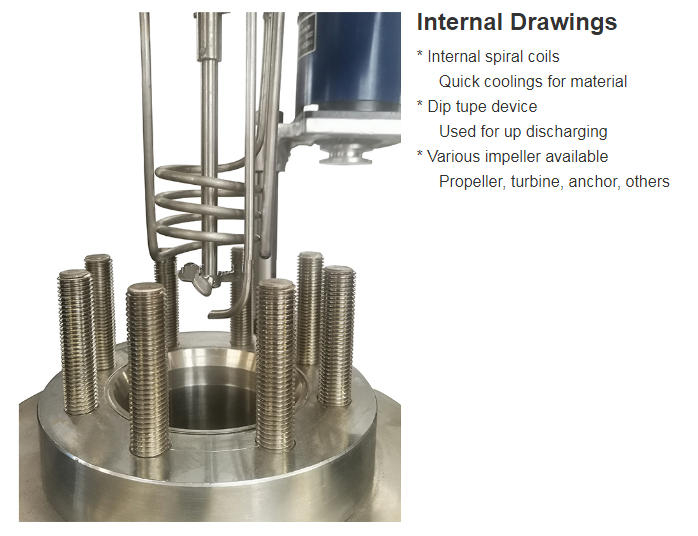

- Internal cooling coils with water tap;
- Control panel with program PID temperature controller.
- Gas/liquid inlet & outlet with needle valve control, dip tube, etc;
- Electric heating furnace is fixed on the moveable frameplate;
- Vessel body can be manual move outside for weighing；
- Top cover lid & magnetic agitator can be manual lifting & lowering
Product features

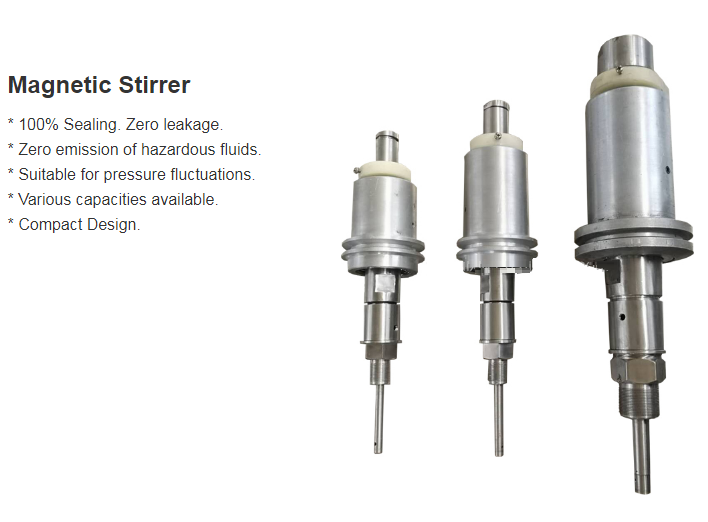

All stirred reactors are equipped with a magnetic drive to provide a trouble-free linkage to an internal stirrer, thereby avoiding the leakage problems which sometimes arise with a packed gland stirrer drive.
Product parameters
Model No. LELPRHLL-0.1 LELPRHLL-0.25 LELPRHLL-0.5 LELPRHLL-1 LELPRHLL-2 LELPRHLL-5 Nominal Capacity 100 ml 250 ml 500 ml 1 liters 2 liters 5 liters Max Working Pressure Standard 100 bar; Max pressure up to 350 bar Working Temperature Standard 350 °C; Up to 500 °C Stilling Speed 0-1500 rpm Motor Power 150 W 150 W 150 W 0.2 kW 0.2 kW 0.6 kW Heating Power 1 kW 1 kW 1 kW 2 kW 2 kW 4 kW Material SS304, SS316 or other alloys Heating Method Cooling Method Standard Electric heating (Thermal oil recycling, far infrared heating optional) Internal spiral coils Charging Method Up discharge by pressure or discharge by bottom valve Stirling type Control panel Propeller, paddle type, anchor type or customized Temp, display and control, accuracy ± TC: Still ing speed display & control. Standard fittings Pressure Gage: Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve Dip Tube; Safety Rupture Disc; Cooling Coil
| Model | LELPRHLL |
| Brand | LabEquipx |
