LEJMCDR

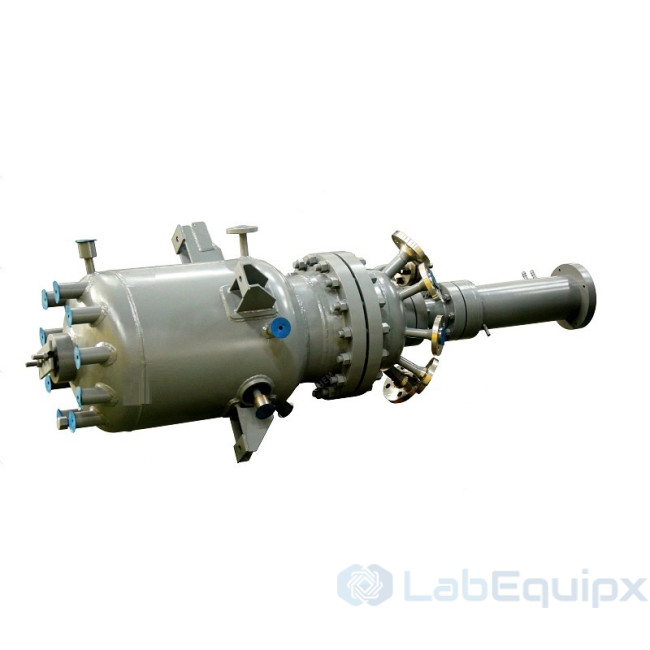

Jacketed Magnetic Coupling Drive Reactor LEJMCDR
Jacketed Magnetic Coupling Drive Reactor LEJMCDR - 100 liters magnetic coupling drive reactor with Heating or Cooling Jacket are used for scale up and smaller productions in Pilot Plants and kilolabs. This series reactor are built for pressure reactions as well as for reactions under full vacuum. Different technologies and materials are used, depending on the requested process and process media.
The application of the reactor and pressure vessels produced by HXCHEM includes industrial company, like environmental protection in petroleum, chemical industry, medicine, dyes, mining and metallurgy, scientific research institutes, colleges (chemical, polymer, material engineering, organic and inorganic chemical). Pressure range 0.1-50MPa, volume range 0.1L-50,000L.
Reactor material could be Stainless Steel, Titanium, Nickel, Hastelloy, Monel, Inconel and other special materials.
Specific Parameters
- Volume:100L
- Maximum pressure:35bar
- Maximum temperature:340℃
- Material：S30408
- Heating type：Electric oil heating
- Jacket material：Q345R
- Jacket pressure：Atmospheric
- Stirrer：Screw impellers，0-50rpm
- Jacket temperature：350℃
- Seal：magnetic seal
- Motor：3.0KW
- Structure：Elliptical head with flange & bolts,Bottom head：Elliptical head

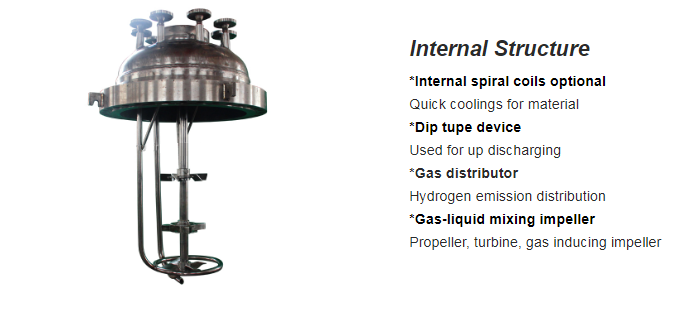

Product Features
Product Parameters
Model No. LEJMCDR-50 LEJMCDR-100 LEJMCDR-200 LEJMCDR-300 LEJMCDR-500 Nominal Capacity 50 L 100 L 200 L 300 L 500 L Design Pressure -0.1-250 bar customized Material Clad SS304, SS316 or other alloys Design Temperature 0~350°C customized Stirring Speed 0-500 rpm 0-500 rpm 0-450 rpm 0-450 rpm 0-450 rpm Motor Power 1.5 kW 2.2 kW 2.2 kW 4 kW 5.5 kW Heating Method Standard electnc heating (Thermal oil. steam, far infrared heating available) Head type Flat cover or elliptical flange type Impeller type (Optional) Propeller, paddle, anchor, spiral, turbine, gas inducing type, etc Cooling type (Optional) Internal spiral cooling cools Discharging type (Optional) Discharging from bottom or up discharge by pressure Control panel PID temperature display and control. accuracy±1 °C; Stirring speed display; Operation time display; Heating voltage and current display. Standard Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve Dip Tube; Safety Rupture Disc; Cooling Coil Optional Solid plug port, constant feeding tank, safety valve, external condenser, Reflux pipeline, drain valve, receiver, etc.
| Model | LEJMCDR |
| Brand | LabEquipx |
