LECLPAR

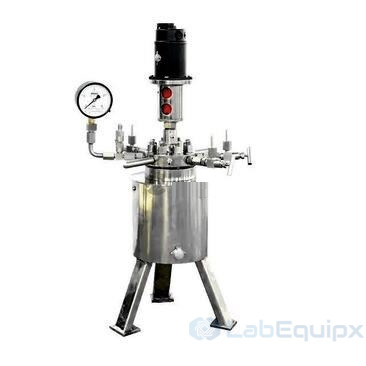

Conventional Lab Pressure Autoclave Reactor LECLPAR
Applications
- Hydrogenation, Catalyst Screening / Testing
- Polymerization
- Styrene Butadiene
- Alkoxylation
- Distillation
- Ethoxylation
- Hydrocracking
- Dehydrogenation
- Oxidation
- Fischer TrophCarboxylation
- Fluid Catalytic Cracking
- Biojet Fuel production
Features
- Flat cover lid: Fixed
- Closure type: Flange type with bolts closure
- Shaft seal: Magnetic coupling drive Reactor vessel: Fixed
- Heating method: Electric heating.
- Cooling method: Internal spiral cooling.
- Control: PID temperature control.
- Reactor volume: 100ml- 5liters
- Pressure: -1 (FV) to +100 bar Temperature: 20 °C to +350 °C
- Material: Stainless steel 304/316, Hastelloy C276, Titanium
- Euipped with constant pressure dosing tank, cycling pipeline, receiver, collecting tank
Specifications
Model No. LECLPAR-0.5 LECLPAR-1 LECLPAR-2 LECLPAR-3 LECLPAR-5 Nominal Capacity (L) 0.5 1 2 3 5 Working Pressure (MPa) 10 10 10 10 10 Working Temperature (℃) 350 350 350 350 350 Stirring Speed (r/min) 0-1500 0-1500 0-1500 0-1500 0-1500 Motor power (kW) 0.15 0.2 0.2 0.2 0.6 Heating Power (kW) 1 2 2 3 4 Material SS304 or SS316 Heating Method General electric heating Cooling Method Internal spiral coils Charging Method Charging from above Stirring type Propeller, paddle type, anchor type or customized Control panel Temperature, time and heating voltage display
Temperature adjustment control, accuracy±1 ℃
Stirring speed display and controlStandard fittings Pressure Gage; Thermocouple; Internal Stirring System
Liquid inlet and gas inlet with needle valve;Gas Release Valve
Dip Tube; Safety Rupture Disc; Cooling Coil
| Model | LECLPAR |
| Brand | LabEquipx |
