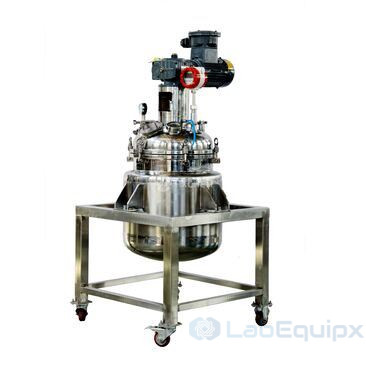

Low Pressure Stainless Steel Reactor LELPSSR
Low Pressure Stainless Steel Reactor LELPSSR, mixing tank, also called a stirred tank, agitated vessel is a vessel in which two or more substances are mixed by stirring. Mixing tanks are commonly used in the food, chemical, and pharmaceutical industries and are often equipped with a motorized stirrer and an agitator. Mixing tanks can also heat or cool a substance, and are often used to hold a mixture of liquids and solids.
Features:
Volume
10L-1000L (Other volume customized)
Pressure
Vacuum to 10bar
Temperature
Up to 350℃
Material
SS304 or SS316 ; PTFE liner optional
Layers
Single/ Double(heating)/ Three layers(Insulation)
Top head type
Dish, Open lid, Flat, semi-elliptical head
Bottom type
Dish, Conical, Flat bottom
Heating mode
Oil Electric heating, Steam heating, electric heating
Jacket
Conventional jacket/ Limpet Coil jacket
Seal type
Mechnical sealing or magnetic seal
Mixing type
High speed homoginizer, Propeller, anchor, paddle, scraper type, etc.
Optional parts
- Quick open manhole / Pressure manhole
- Various types of CIP spraying ball
- Liquid level meter and lever controller
- Ladder ( Optional )
- The pressure gauge ( Optional )
Application
Food, Beverage, pharmacy, biological, honey, chocolate, alcohol, chemical industry etc
Generally, a blending container is a vertical round vessel consisting of a head cover, container body, and container bottom. It is set up on a platform via support. The storage tank body can offer a particular room for mixing under the specified operating temperature and stress.
The component exposed to the product, inner container, and various other elements are made from SUS304 and SUS316L. Other members take on SUS304.
The mirror of the inner container is dealt with by brightening, and its roughness is equal to or less than 0.4 um.
The mixing tank is done at a variable or constant speed according to various capabilities and technical requirements.
Mixing tank fittings optional as fellows:
Vessel fittings
Cleaning ball, Long flange mirror; Mirror light; Sampling valve; Liquidometer, Glass manhole
Pump Feeding pump, recycling pump, metering pump, sanitary pump, emulsion pump Pipeline Pipeline mirror; Ball valve; Butterfly valve; Filter; Distillation fittings Distillation fittings Control PLC control; Explosion-proof pannel;
| Model | LELPSSR |
| Brand | LabEquipx |
