LEMPLPR-CSTR

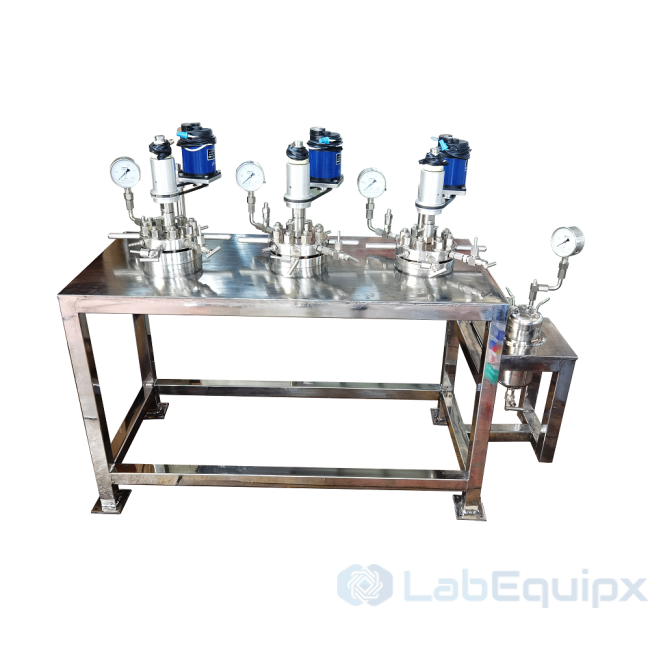

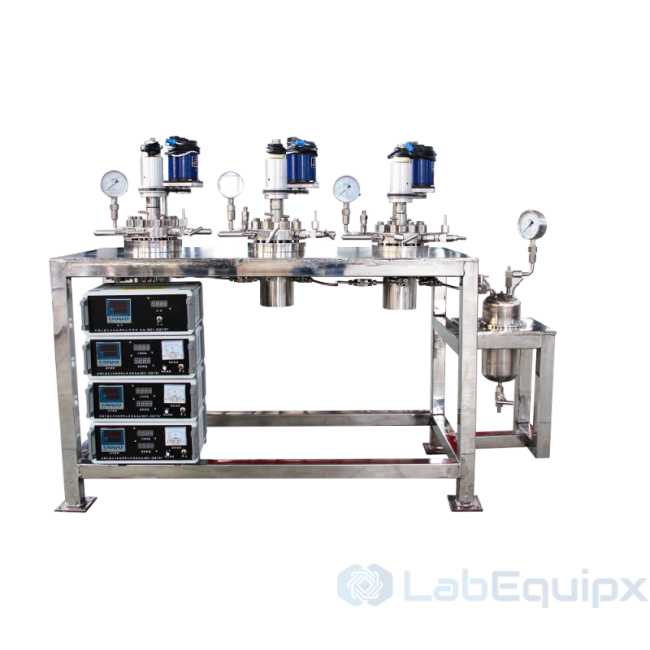

Multiple Parallel Lab Pressure Reactor LEMPLPR-CSTR
Multiple Parallel Lab Pressure Reactor LEMPLPR-CSTR - multiple-reactor systems that can run in batch, in sequence, or in any combination for high-throughput experimentation. For use in high-throughput screening, combinatorial chemistry, corrosion testing, and catalyst testing.
Appication:
- For Gas / Liquid storage / charging under pressure
- For Acid digestion
- For static, loop, electrochemical, corrosion studies
- For supercritical fluid extraction
- For hydrogen induced disbonding tests
- For soaking of diamonds / precious stones
Features
- Continuous stirred tank reactor (CSTR).
- Volume：0.5L~500L, 3,4 or 6 or 8 nos. parallel autoclaves.
- Parallel or Series connection design available.
- Max pressure: 350 bar; Max temperature up to 350 ℃
- Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, etc.
- Low to high torque magnetic couplings: static seal with no leakage.
- Standard head fittings: safety rupture disc, pressure gauge, inlet/vent valve, cooling water inlet & outlet and internal thermocouple
Standard Specifications
Type LEMPLPR-CSTR-0.1-1 LEMPLPR-CSTR-1-10 LEMPLPR-CSTR-10-25 LEMPLPR-CSTR-25-50 Volume(L) 0.1-1 1-10 10-25 25-50 Working pressure(MPa) -0.1-30 -0.1-30 -0.1-30 -0.1-30 Motor power(W) 40-30 80-200 300-750 1100 Heating power(KW) 0.1-1 1-3 3-6 4-9 Working temperature(°C) -196-500 Stirring speed(r/min) 0-1500 Heating type Electric heating, thermal oil heating available Cooling Method Spiral coils (Single coils, serpentine coils available) Charging type Charging from above, discharging from bottom. Stirring type Customized anchor-type, frame-type, propeller type, turbine-type, scraper-type or paddle-type..etc Seal type Magnetic seal, mechanical seal. Motor General DC motor, DC servomotor or explosion-proof motor according to customers requirements. Controller Device Temperature, time and heating voltage display Temperature adjustment control. accuracy±1 °С Stirring speed display and control.Others Standard fittings Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve; Gas Release Valve Dip Tube; Safety Rupture Disc; Cooling Coil
| Model | LEMPLPR-CSTR |
| Brand | LabEquipx |
