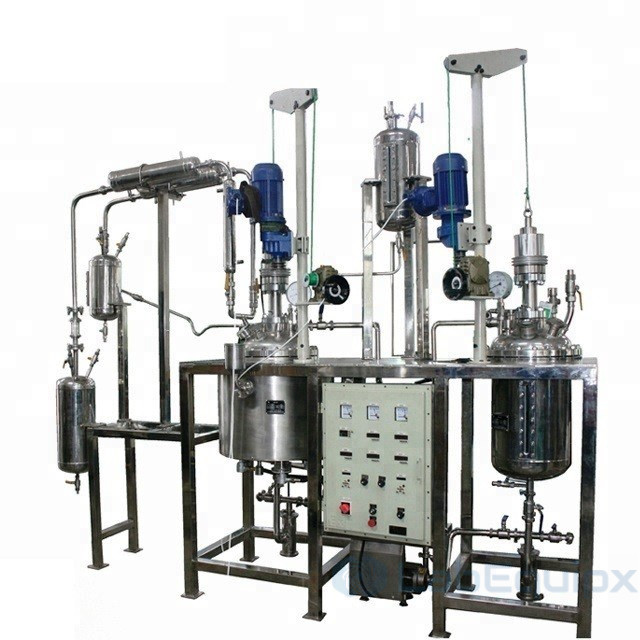

Multiple Parallel High Pressure Reactor System LEMPHPRS
Multiple Parallel High Pressure Reactor System LEMPHPRS - this series of systems are connected in series or in parallel by several high-pressure reactors, which can realize continuous automatic production and are suitable for the application of high value-added products and mature processes.
These systems are based on our wide range of reactor systems and feature overhead magnetic drive stirrers.
Application: High-throughput screening, combinatorial chemistry, corrosion testing, and catalyst testing.
Features
- Floor stands or moveable cart type.
- Lab to pilot scale production.
- Parallel or Series connection design available.
- Max pressure: 300 bar; Max temperature up to 500 ℃
- Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel, Tantalum.
- Low to high torque magnetic couplings: static seal with no leakage.
- Customized according to customers requirement.
Standard Specifications
- Capacity: 0.5L~500L
- Reactor quantity：2~12 sets
- Main material：SS304 or SS316
- Pressure: -1 ~ 30.0 bar
- Temperature:-20~500℃
- Sealing type： Magnetic coupling drive
- Control index： Pressure/temperature, gas/liquid flow, gas consumption, Stirrer speed, safety limit available
- Standard fittings: Pressure Gage; Thermocouple; Internal Stirring System; Liquid inlet and gas inlet with needle valve；Gas Release Valve; Dip Tube; Safety Rupture Disc; Cooling Coil
Note: Process equipment such as condenser, feeding tank, evaporator and storage tank can be equipped according to users' requirements.
Product Details
Structure Drawings
Control System
Internal Components
| Model | LEMPHPRS |
| Brand | LabEquipx |
