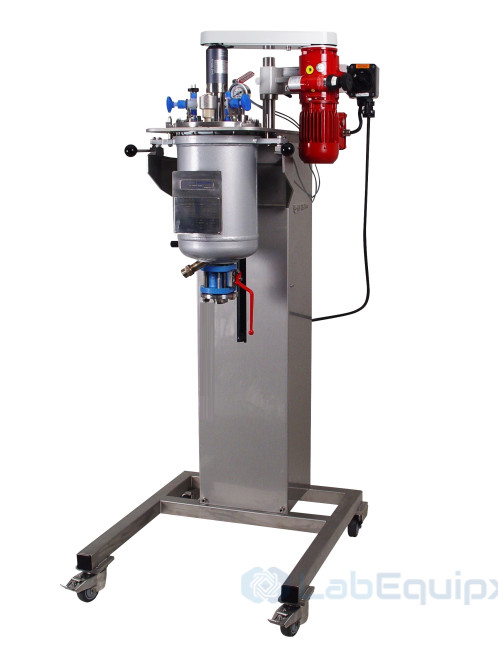

Metal-Free Inert Lab to Pilot Pressure Reactors, 1 to 20 L LELPSMFIR

  • Features

    • Metal-free reactions under pressure; explosion-protected version on request
    • Laboratory to pilot scale pressure reactor system in metal-free executions
    • Reactor volume: 1.0 to 20.0 liters
    • Pressure: -1 (FV) to +6 bar
    • Temperature: -20 °C to +180 °C
    • Material: glass, glass-lined steel, ceramic, PFA, PEEK, PTFE
    • The reactors of the lab to pilot range are available as metal-free inert versions. Some versions are built only with a glass-lined steel vessel.
    • These multipurpose pressure reactor systems resist aggressive chemicals and avoid corrosion, contamination and side reactions with metals. They take either glass-lined steel pressure vessels or glass pressure vessels.
    • A high torque ceramic magnetic stirrer drive mixes low to high viscosity media and gives good heat transfer.
    • Safety features are built in for reactions under pressure.
    • The modular design allows the vessel or configuration to be changed for new applications at any time. Accessories for feeding liquids, solids and gas are available; the setup is defined for each project.
    • For higher temperatures or pressures, other highly corrosion resistant solutions (for example tantalum) can be offered.

    Model: LELPSMFIR

    • Metal-Free Inert Lab to Pilot Pressure Reactors, 1 to 20 L LELPSMFIR

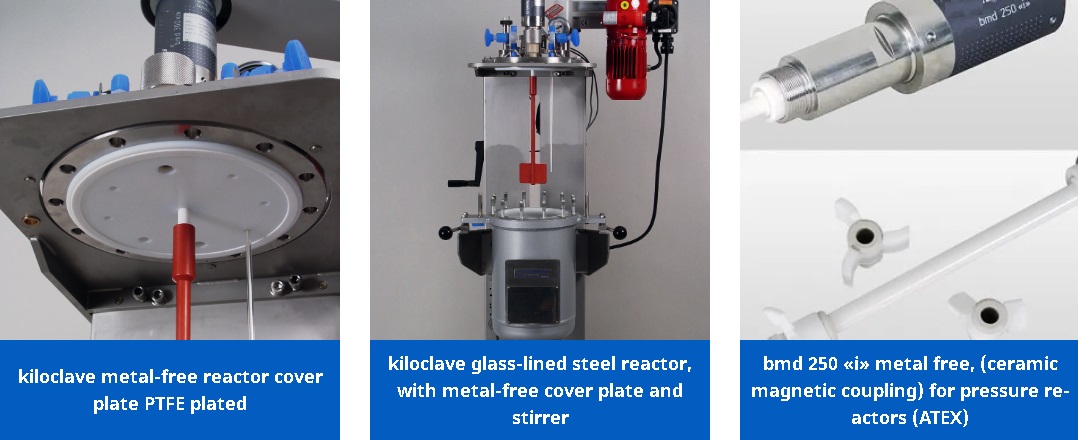

  • Examples of metal-free inert reactors

    Metal-Free Inert Lab to Pilot Pressure Reactors, 1 to 20 L LELPSMFIR

    Typical applications

    • Hydrogenation, polymerization and synthesis reactors
    • Catalyst testing and evaluation, catalytic reactors
    • Crystallization
    • Chemical and petrochemical research
    • Corrosion measurement and corrosion testing
    • Upstream research
    • Biomass, biopolymer, biorefinery and biofuels research
    • Zeolite and nanoparticle synthesis
    • API synthesis
