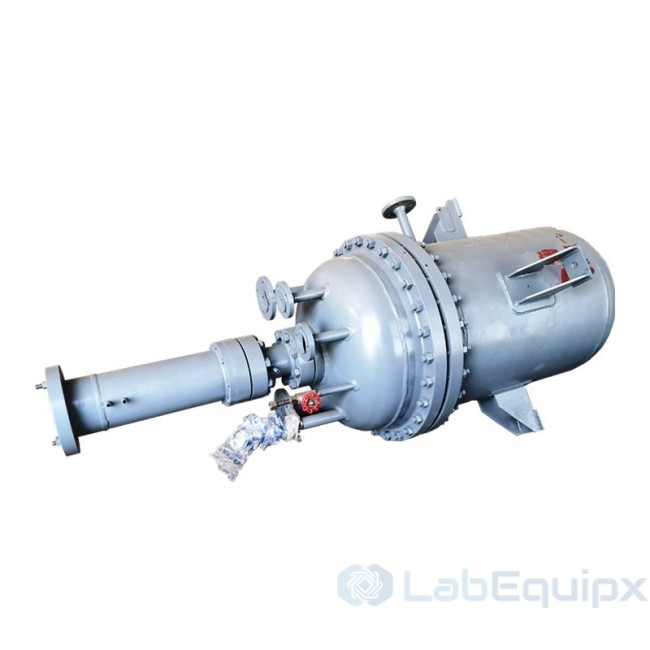

Pilot Scale Polymerization Reactor for Viscous Polymer LEPSPRVP

Polymers are often sticky. When the temperature is low, the viscosity will be higher. What's more worse, polymers may crystallized so that pipe and reactor is block. Therefore, this series of reactor need to be designed after confirming the polymer properties and product quality. Allowance must be made for the effects of high viscosities on both heat transfer and reaction kinetics.

The molecular structure of polymers may be affected by chemistry, reactor configuration and process conditions, all of which must be well understood in the selection and design of reactors. Pilot reactors and related stirring tech. Can help solve the difficulties in the intermediate production of polymerization.

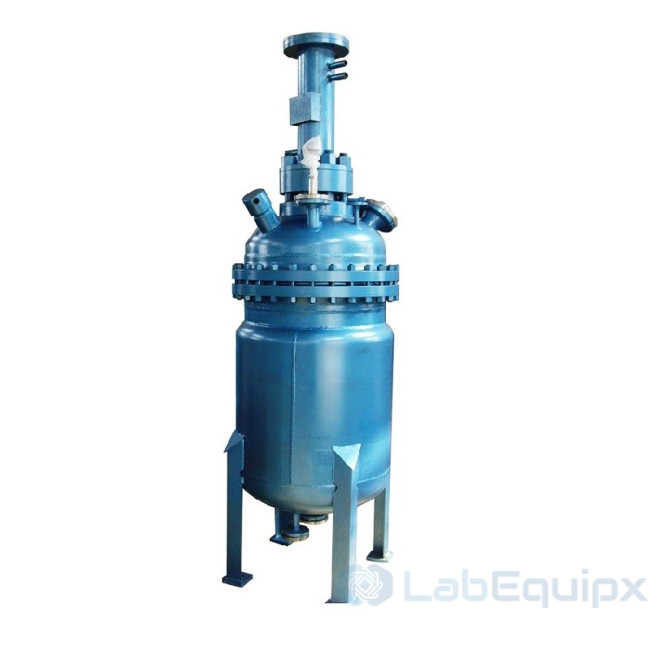

Floor stands or moveable cart type.
Capacity volume： 10 liters to 500 liters.
Max pressure: 200 bar; Max temperature up to 350 ℃
Low to high torque magnetic couplings: static seal with no leakage.
Lifting device available for reactor head rising and lowering.

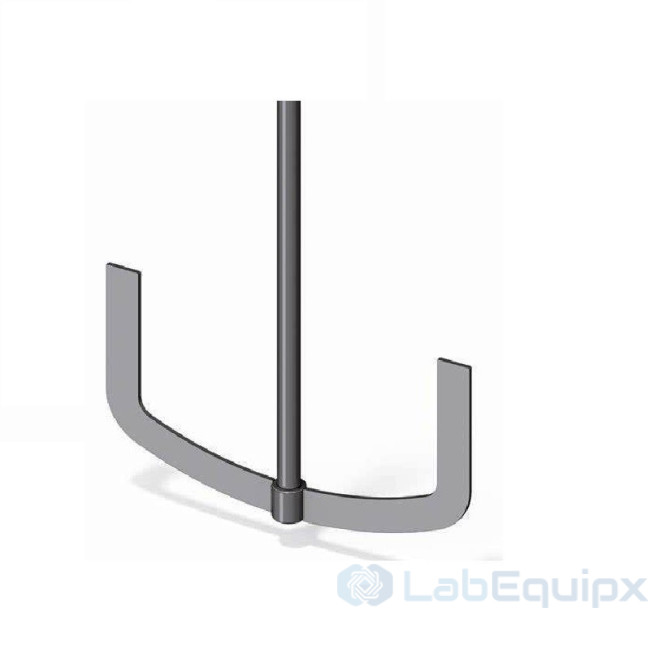

Impeller type for polymerization：Optimized paddle, anchor, frame, spiral type.
Available material：SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel.
Monitor and control: Temperature, pressure, motor speed, operating time, etc
Customized according to customers requirement.

Model No.	LEPSPRVP-I0	LEPSPRVP-20	LEPSPRVP-30	LEPSPRVP-50	LEPSPRVP-100	LEPSPRVP-200	LEPSPRVP-300	LEPSPRVP-500
Nominal Capacity （L）	10	20	30	50	100	200	300	500
Design Pressure （bar）	100	100	100	100	-0.1-300 bar customized
Material	SS304 or SS316 wetted parts
Design Temperature (℃)	350				0~350 customized
Stirring Speed （r/min）	0-180	0-150	0-150	0-150	0-150	0-150	0-120	0-120
Motor Power （kW）	0.6	1.1	1.5	1.5	2.2	2.2	4	5.5
Heating Power （kW）	4	9	9	15	Selection according to the working temperature
Heating Method	Standard electric thermal oil heating

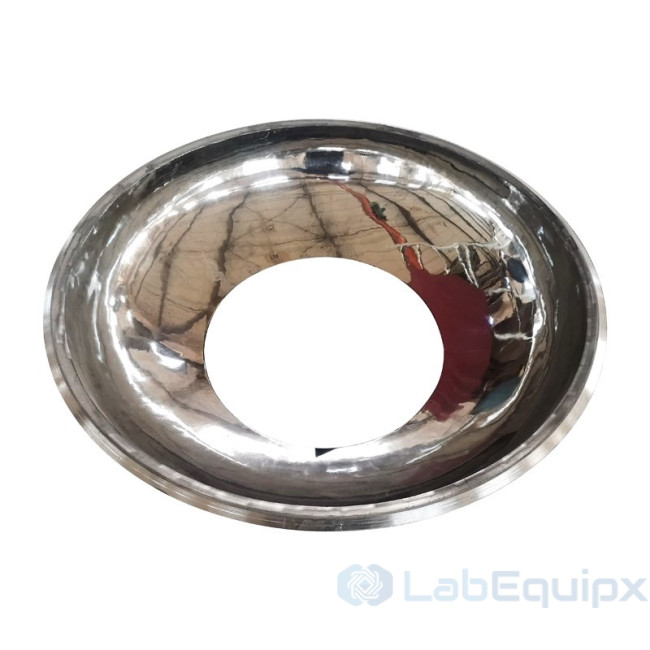

Head type	Standard Flat cover type(Ellipsoidal, Conical type available)
Impeller type (Optional)	Optimized paddle, anchor, frame, spiral, screw type
Cooling type (Optional)	External reflux cooling
Discharging type (Optional)	Discharging from bottom or above.
Control panel	PID temperature display and control, accuracy±1 ℃；stirring speed display；
Control panel	Operation time display; Heating voltage and current display
Opening port of head (Optional)	Pressure gauge, Safety valve port; Temp. measuring port; Gas and liquid port; Dip tube; Vent port; Solid charging port

Note：

The above standard parameters are for reference only. Different processe have their own reasonable selection, not the more complete the function, the better.
The structure, specification, nozzle size and orientation need to be confrimed after communicating with us.

Model	LEPSPRVP
Brand	LabEquipx
