Magnetic Couplings Drive for Lab High Vacuum Distillation LEMCDLHVD

Magnetic Couplings Drive for Lab High Vacuum Distillation LEMCDLHVD - best way for lab high vaccum distillation because of its high sealing performance.

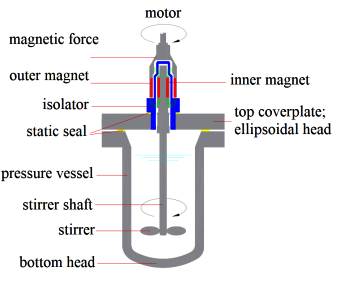

Magnetic stirrer drive is a kind of efficient seal which replaces dynamic seal with static seal. Its principle is the permanent magnet internal and external just the inter-attraction with each other to drive the torque, so the problems such as the leakage and friction are not exists. This serious is can be used in lab high vaccum distillation because of its high sealing performance.

100% Sealing. Zero leakage. Low energy cost.
Suitable for lab reactor with volume 0.5~10L
Full vaccum to 500 bar available；Cooling jacket design for high pressure application.
Materials of SS316, Hastelloy C, inconel, monel, titanium, PEEK etc. for resistance to various chemicals.
LEMCDLHVD-MLD series: Magnetic couplings drive connect with motor directly, which is high accurate speed display, good appearance, high efficiency rotation.

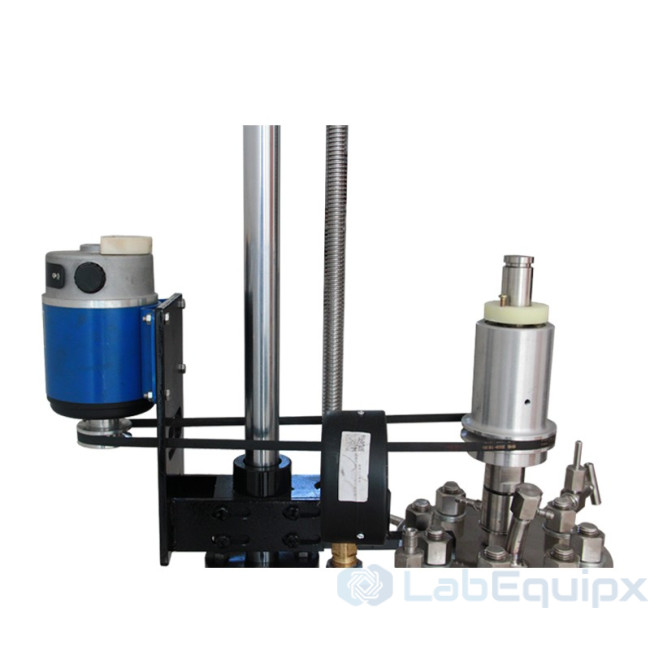

LEMCDLHVD-MLB series: Magnetic couplings drive connect with motor by belt, which is easy operation, strong durable and high rotating speed.
Thread and Flange end connect design available.

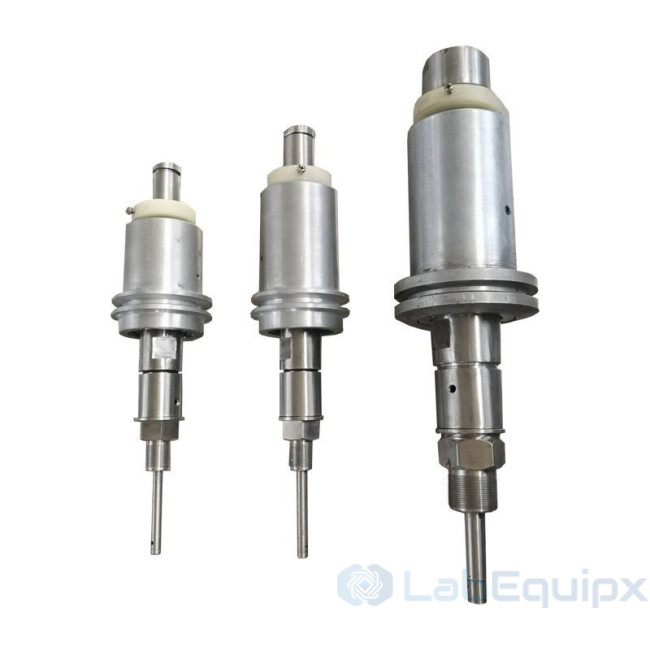

Low to high torque magnetic couplings: static seal with no leakage.

Type	LEMCDLHVD-MLB type（Belt drive）
For volumes	0.5 - 10L
Motor power	180 - 750 W
Torque range	4 - 12 N-m
Stirrer speed	0 - 1500 rpm
Pressure range	Full vacuum / 300 bar
Temperature range	- 40°C to + 350°C
Materials	Stainless steel, Hastelloy, Titanium, Nickel, Zirconium, others.

Type	LEMCDLHVD-MLD type（Direct drive）
For volumes	0.5 - 10L
Motor power	180 - 750 W
Torque range	4 - 15 N-m
Stirrer speed	0 - 1500 rpm
Pressure range	Full vacuum / 300 bar
Temperature range	- 40°C to + 350°C
Materials	Stainless steel, Hastelloy, Titanium, Nickel, Zirconium, others.

Structure Drawings

Model	LEMCDLHVD
Brand	LabEquipx
