Magnetic Couplings Drive for Lab High Pressure Reaction LEMCDLHPR

LEMCDLHPR series magnetic coupling drive is suitable for the lab reactor, which have a small size and portable structure, including LEMCDLHPR-MLD and LEMCDLHPR-MLB model.

100% Sealing. Zero leakage. Low energy cost.

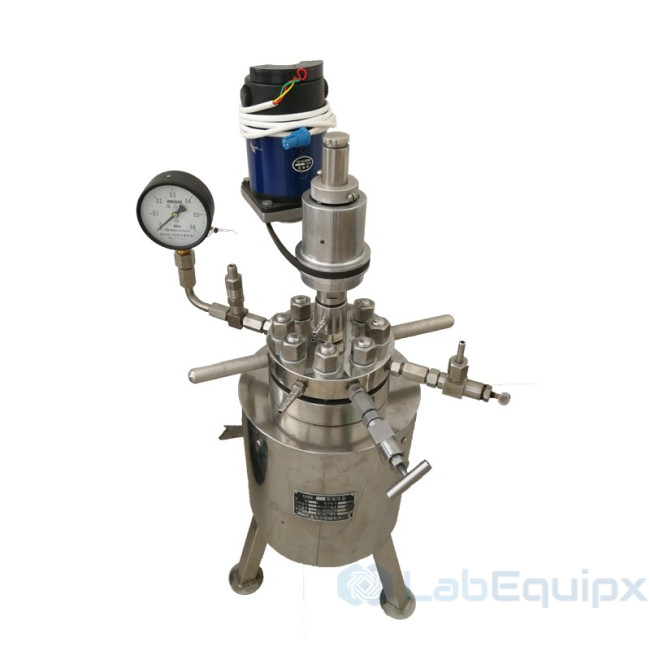

Suitable for lab reactor with volume 0.5~10L
Full vaccum to 500 bar available；Cooling jacket design for high pressure application.
Materials of SS316, Hastelloy C, inconel, monel, titanium, PEEK etc. for resistance to various chemicals.

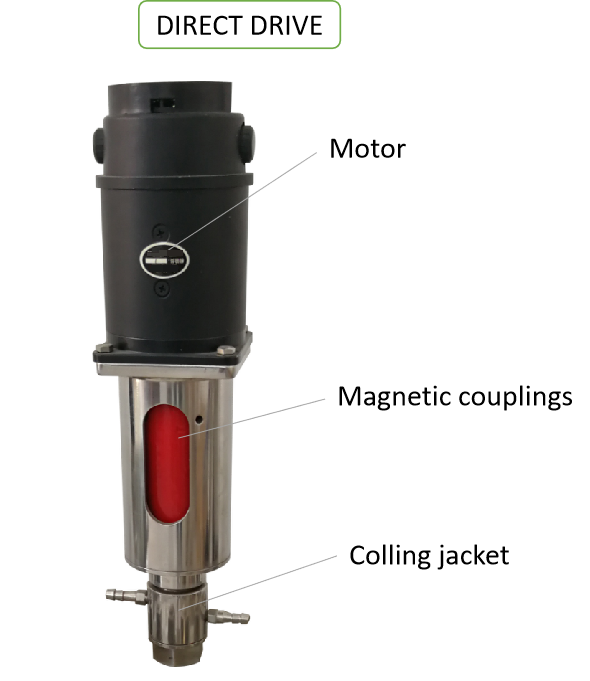

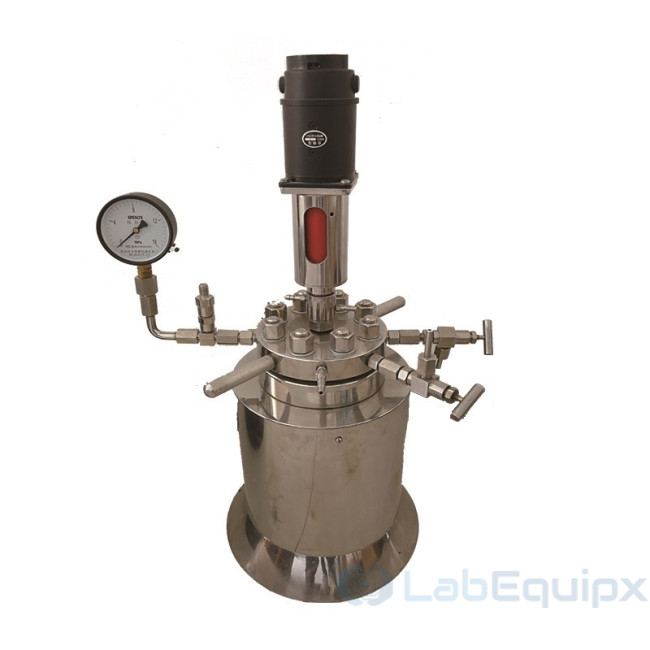

LEMCDLHPR-MLD series: Magnetic couplings drive connect with motor directly, which is high accurate speed display, good appearance, high efficiency rotation.

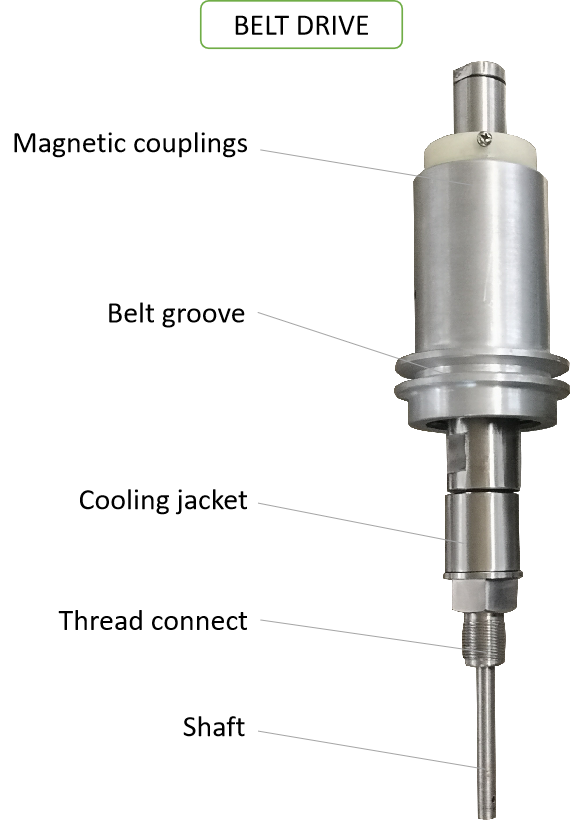

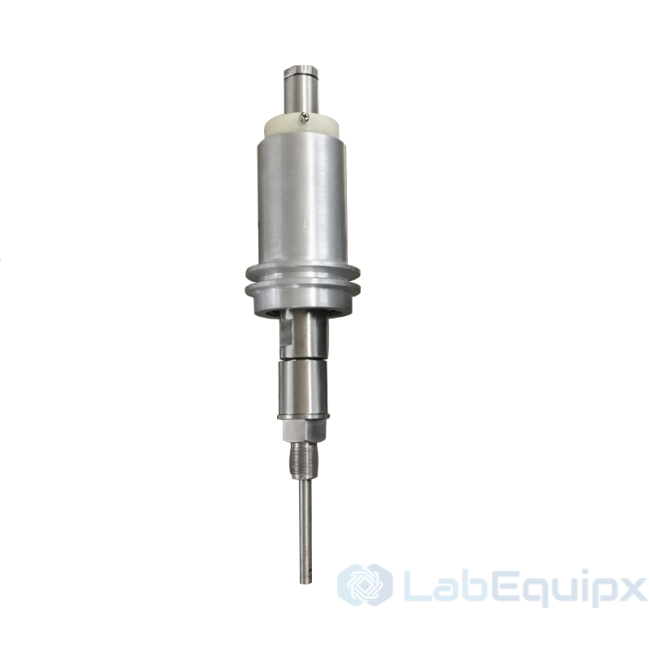

LEMCDLHPR-MLB series: Magnetic couplings drive connect with motor by belt, which is easy operation, strong durable and high rotating speed.
Thread and Flange end connect design available.

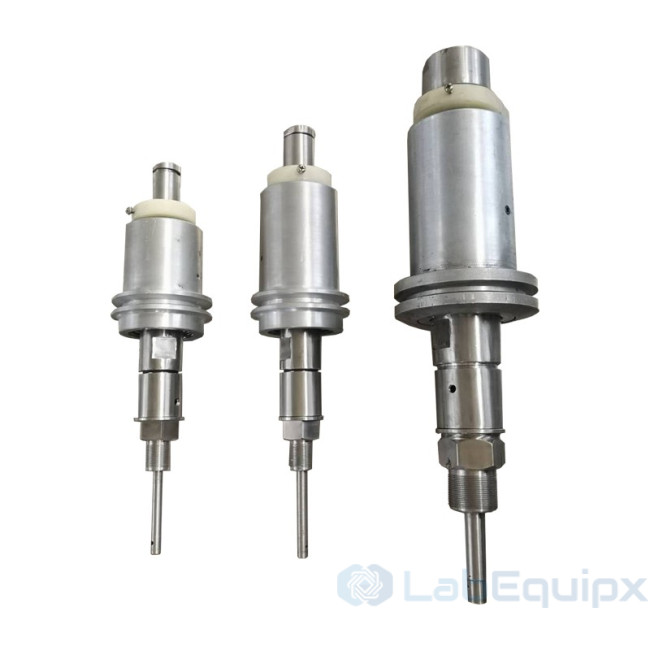

Low to high torque magnetic couplings: static seal with no leakage.

Type	LEMCDLHPR-MLB type（Belt drive）
For volumes	0.5 - 10L
Motor power	180 - 750 W
Torque range	4 - 12 N-m
Stirrer speed	0 - 1500 rpm
Pressure range	Full vacuum / 300 bar
Temperature range	- 40°C to + 350°C
Materials	Stainless steel, Hastelloy, Titanium, Nickel, Zirconium, others.

Type	LEMCDLHPR-MLD type（Direct drive）
For volumes	0.5 - 10L
Motor power	180 - 750 W
Torque range	4 - 15 N-m
Stirrer speed	0 - 1500 rpm
Pressure range	Full vacuum / 300 bar
Temperature range	- 40°C to + 350°C
Materials	Stainless steel, Hastelloy, Titanium, Nickel, Zirconium, others.

Structure Drawings

Model	LEMCDLHPR
Brand	LabEquipx
