Magnetic Coupling Drive Agitator and Mixer

The Magnetic Coupling Drive Agitator and Mixer LEMCDAM is an agitator installed at the center of an industrial reactor and driven through a magnetic coupling, for high pressure applications on vessels from 1000 L to 50 m³. The coupling transmits torque from the external motor to the agitator shaft through a closed containment wall, so the shaft never penetrates the pressure boundary and there is no packing gland or mechanical seal to leak or wear.

How it works

An outer rotor carrying permanent magnets is turned by the motor. Magnetic flux crosses the sealed containment wall and drives an inner rotor mounted on the stirrer shaft, which turns synchronously. The result is a static seal with zero leakage and low energy cost. The LEMCDAM is the MPB type with belt drive, the arrangement used for higher torque: motor power 7.5 to 110 kW, torque 400 to 7000 N·m and stirrer speed 0 to 500 rpm. The coupling is rated from full vacuum to 200 bar and from -40 °C to +350 °C, and a cooling jacket is designed in for high temperature service.

Materials are selected for resistance to the process chemicals: SS304, SS316, Hastelloy C, Inconel, Monel and titanium are listed, with carbon steel, nickel and zirconium also available. The connecting size to the reactor depends on the vessel size and on the model of the magnetic coupling drive, and is confirmed for each project.

What is included

• Magnetic coupling with outer rotor, sealed containment wall and inner rotor on the stirrer shaft
• Belt drive, MPB type, for a 7.5 to 110 kW motor
• Cooling jacket for high temperature applications

Specify for your project

• Reactor volume (1000 L to 50 m³), head port and existing gland dimensions
• Design pressure and temperature at the head, within full vacuum to 200 bar and -40 to +350 °C
• Process medium: viscosity, solids, hydrogen, oxygen or toxic gas
• Required torque and speed, or impeller type and diameter
• Materials: carbon steel, stainless, Hastelloy, Inconel, Monel, titanium, nickel or zirconium
• Motor: belt drive, ATEX or explosion-proof

This description defines the product family. Guaranteed performance, included hardware, exclusions, interfaces and acceptance criteria are stated only in the project-specific technical proposal and approved datasheet.

Features

• 100% Sealing. Zero leakage. Low energy cost.
• Suitable for industrial reactor with volume 1000 L~50 m3
• Full vaccum to 200 bar available；Cooling jacket design for high temperature application.
• Materials of SS304, SS316, Hastelloy C, inconel, monel, titanium for resistance to various chemicals.
• Low to high torque magnetic couplings: static seal with no leakage.

Technical Requirements

Product Details

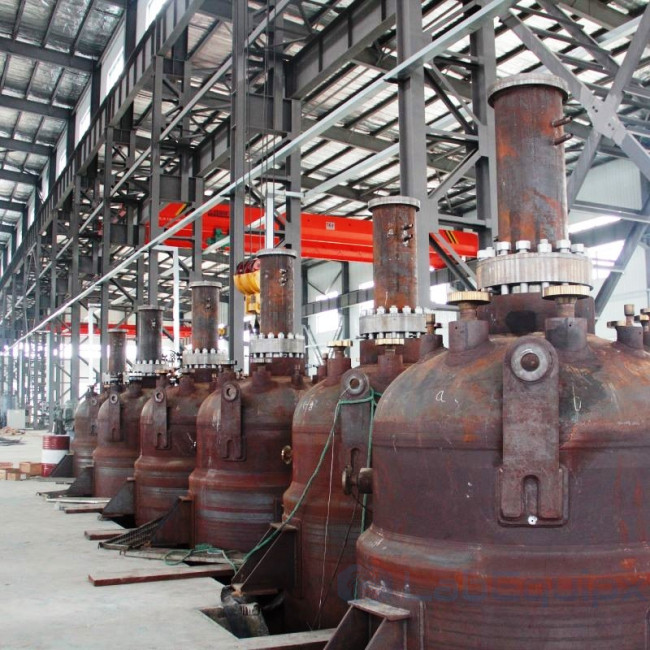

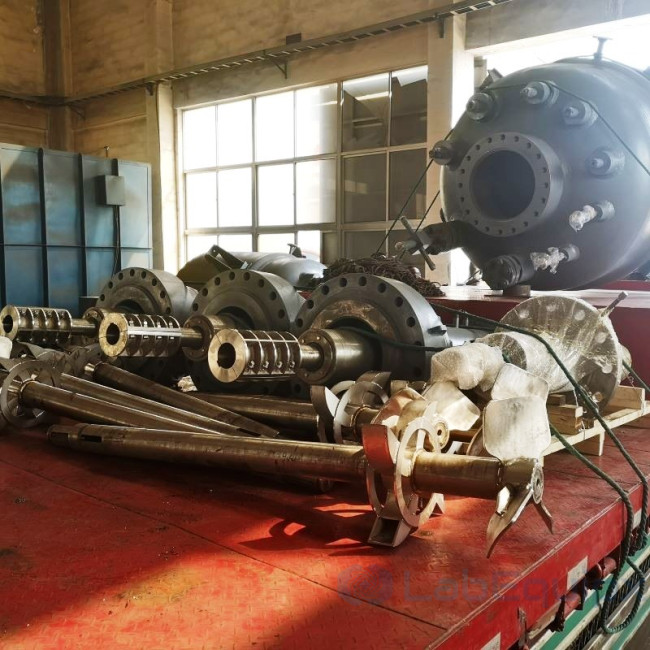

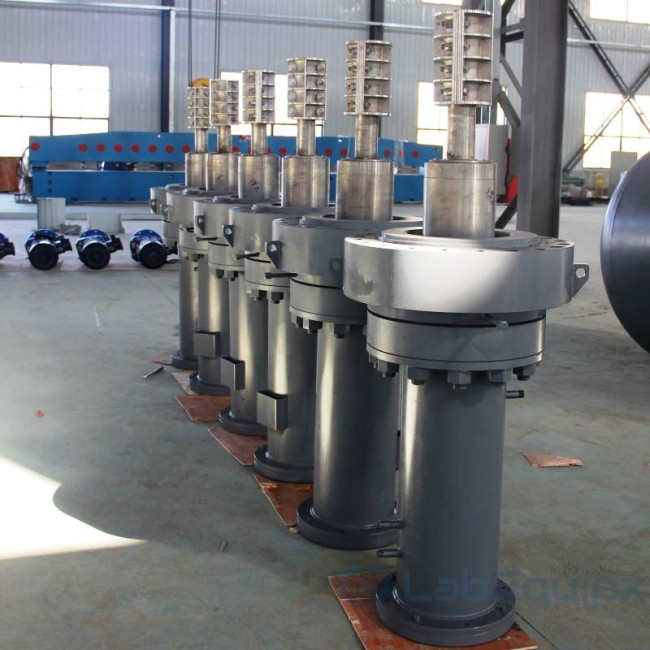

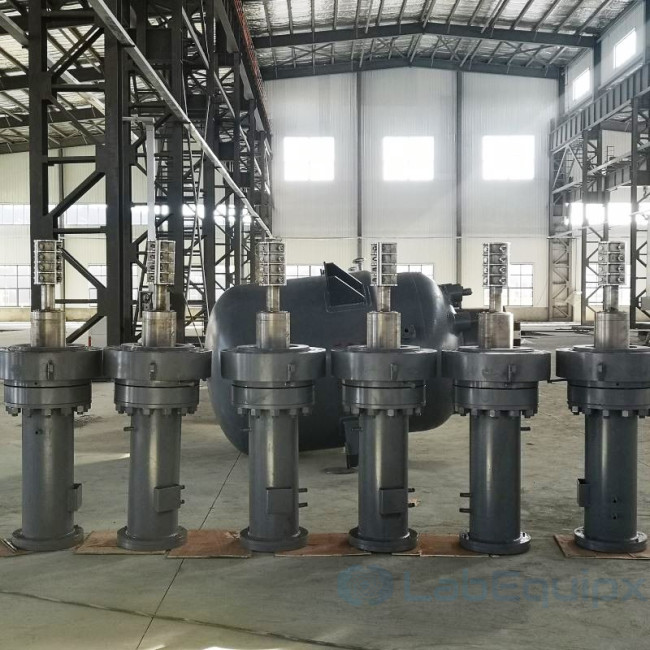

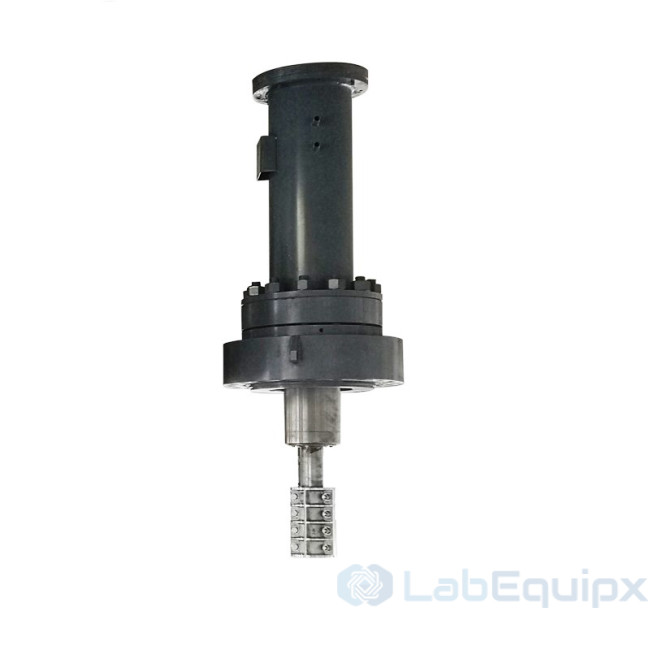

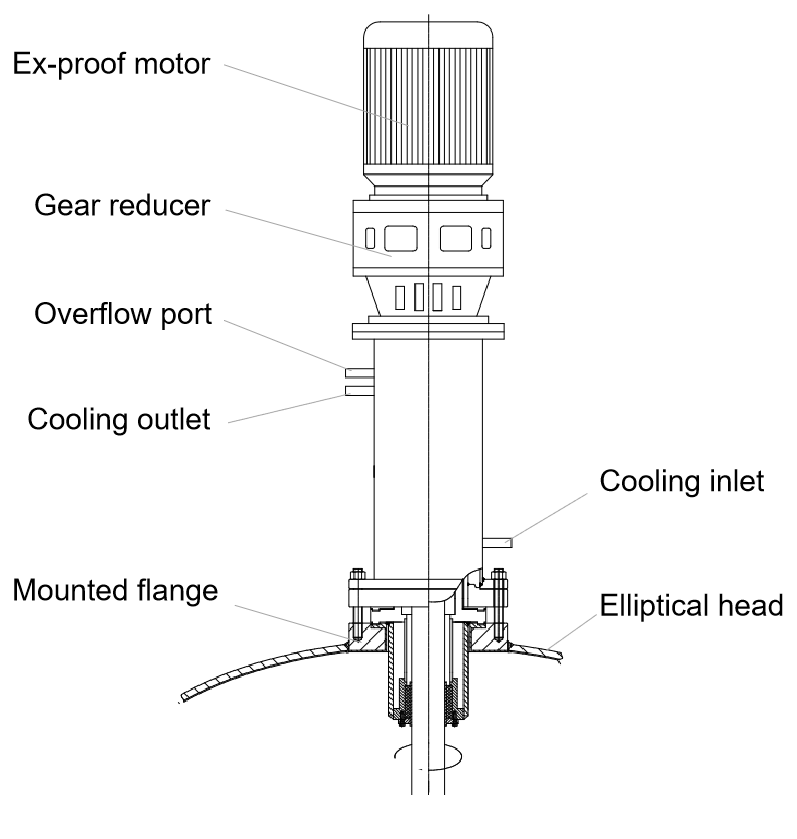

Structure Drawings

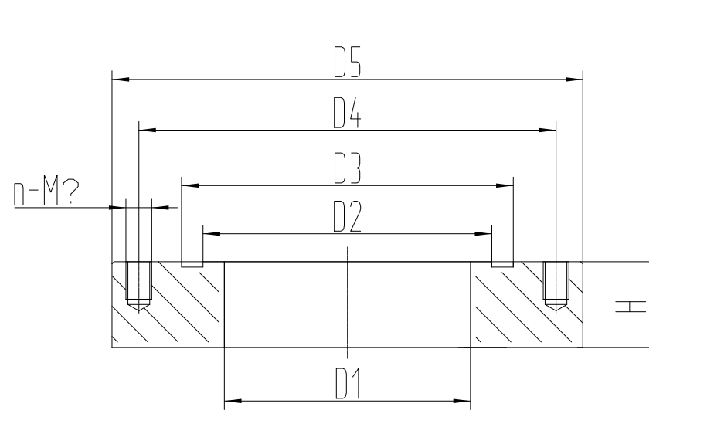

Connect Size

Connecting size depend on the vessel size and the model type of the magnetic couplings drive.
