Light Duty Top Entry Agitator and Mixer LELDTEAM

Light Duty Top Entry Agitator and Mixer LELDTEAM - this series agitator is suitable for the light duty mixing mission, which is suitable for the lab application.

LELDTEAM series magnetic coupling drive is suitable for the lab reactor, which have a small size and portable structure, including MLD and MLB model.

100% Sealing. Zero leakage. Low energy cost.
Suitable for lab reactor with volume 0.5~10L
Full vaccum to 500 bar available；Cooling jacket design for high pressure application.
Materials of SS316, Hastelloy C, inconel, monel, titanium, PEEK etc. for resistance to various chemicals.

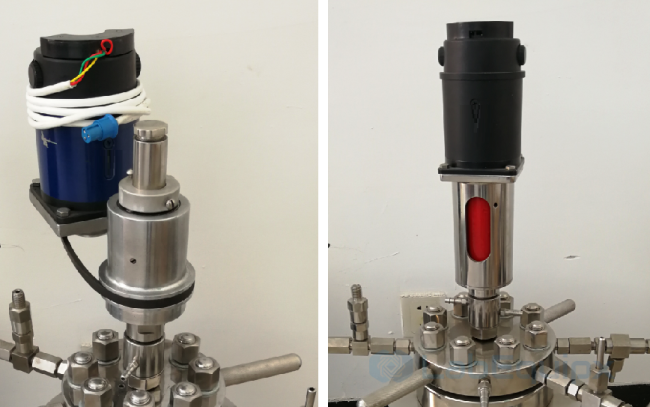

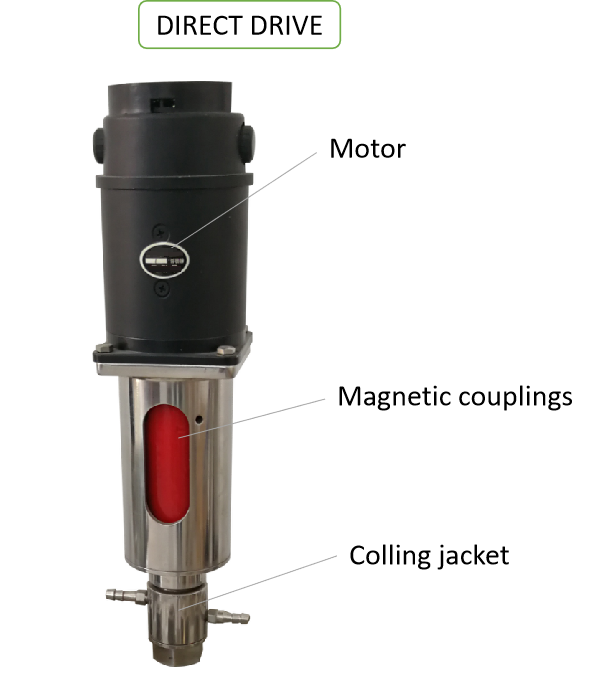

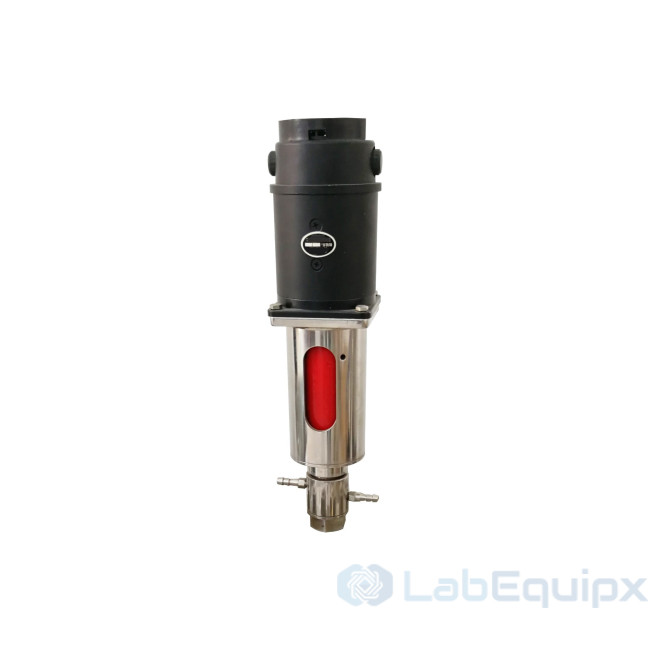

LELDTEAM-MLD series: Magnetic couplings drive connect with motor directly, which is high accurate speed display, good appearance, high efficiency rotation.

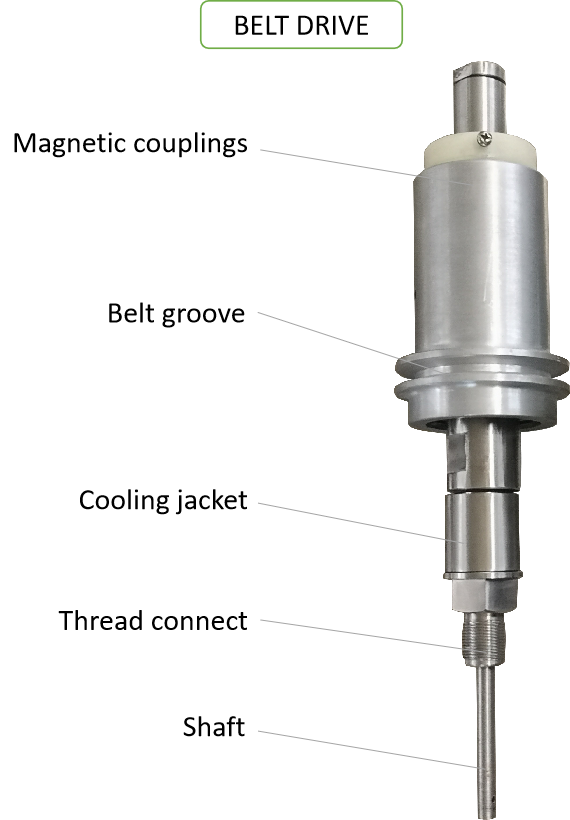

LELDTEAM-MLB series: Magnetic couplings drive connect with motor by belt, which is easy operation, strong durable and high rotating speed.
Thread and Flange end connect design available.
Low to high torque magnetic couplings: static seal with no leakage.

Type	LELDTEAM-MLB type（Belt drive）
For volumes	0.5 - 10L
Motor power	180 - 750 W
Torque range	4 - 12 N-m
Stirrer speed	0 - 1500 rpm
Pressure range	Full vacuum / 300 bar
Temperature range	- 40°C to + 350°C
Materials	Stainless steel, Hastelloy, Titanium, Nickel, Zirconium, others.

Type	LELDTEAM-MLD type（Direct drive）
For volumes	0.5 - 10L
Motor power	180 - 750 W
Torque range	4 - 15 N-m
Stirrer speed	0 - 1500 rpm
Pressure range	Full vacuum / 300 bar
Temperature range	- 40°C to + 350°C
Materials	Stainless steel, Hastelloy, Titanium, Nickel, Zirconium, others.

Structure Drawings

Model	LELDTEAM
Brand	LabEquipx
