LELPSHPMC
Lab to Pilot Scale High Pressure Magnetic Couplings LELPSHPMC

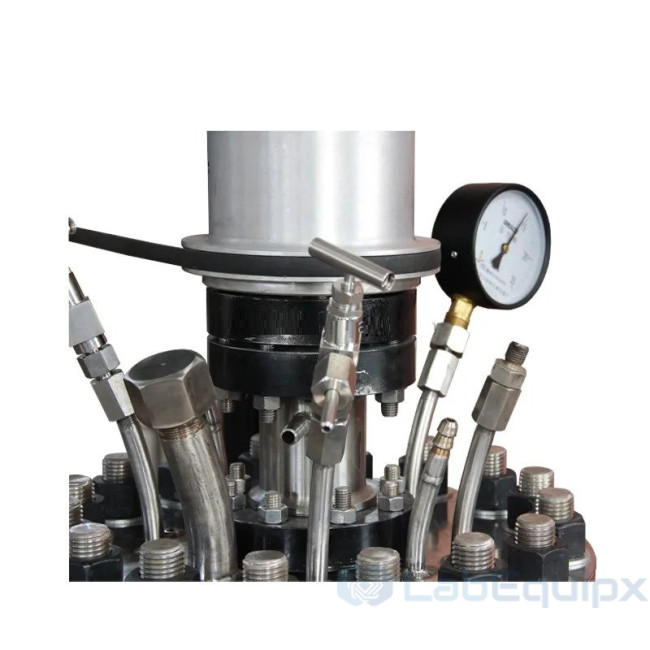

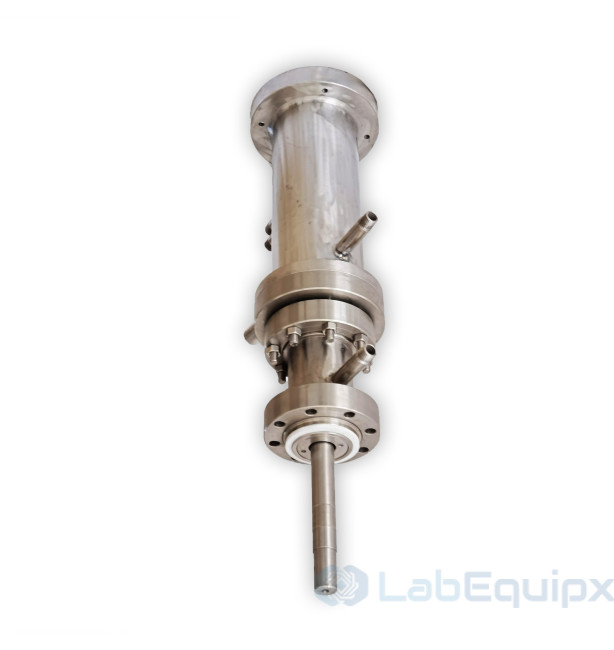

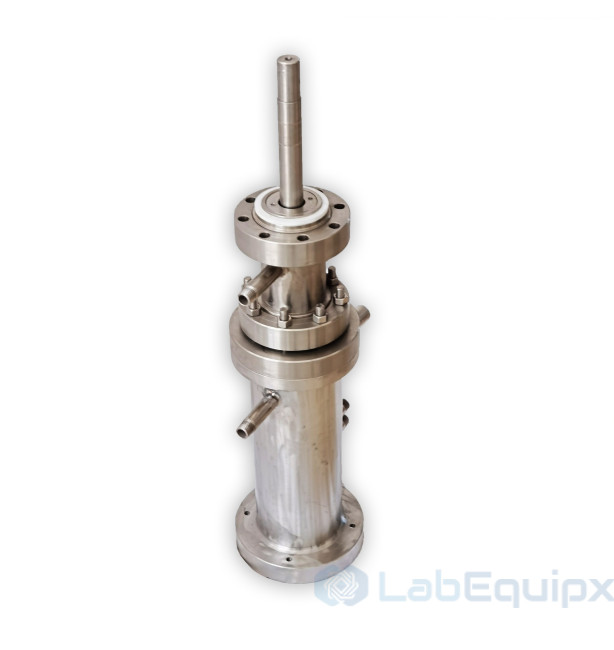

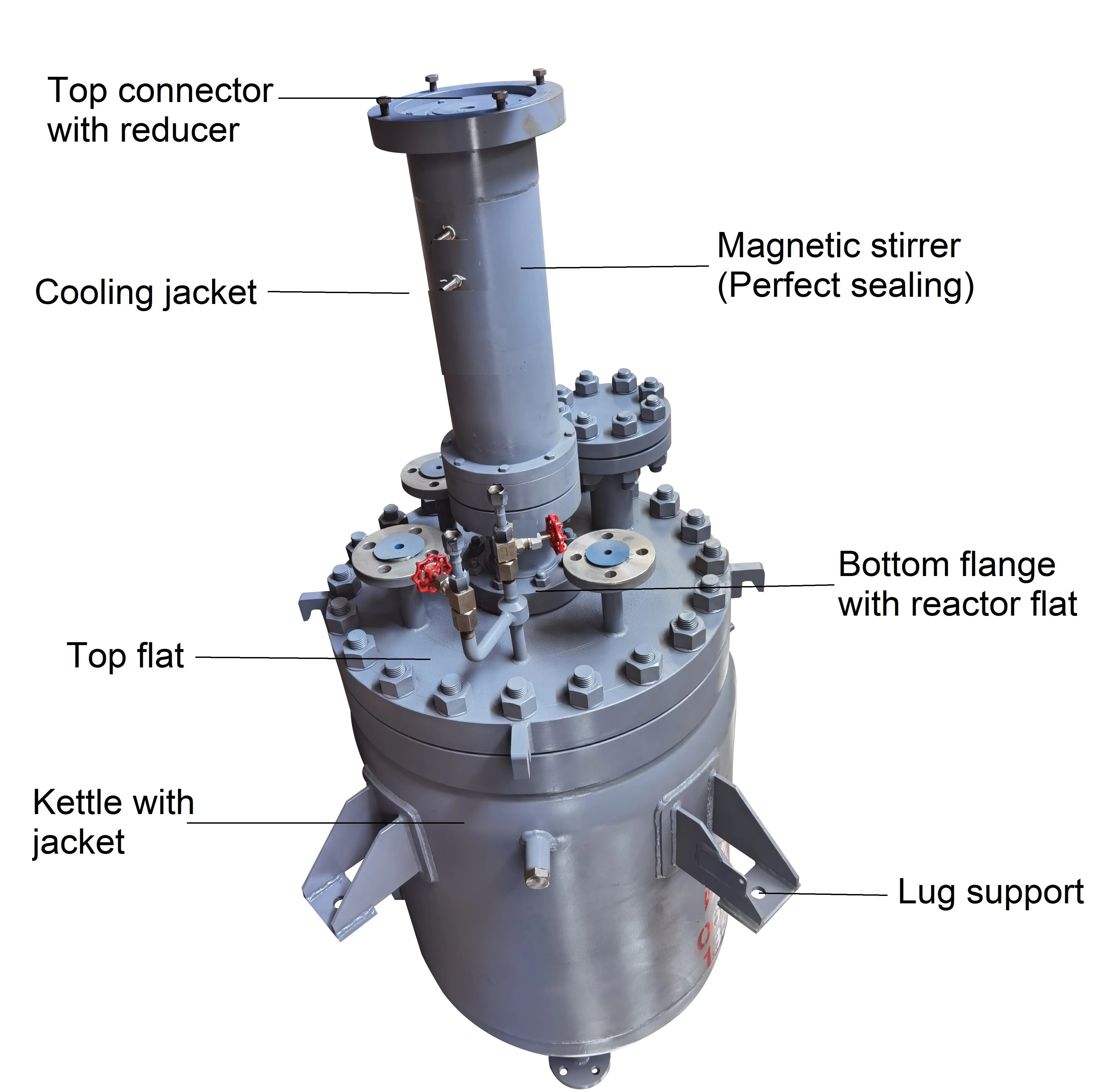

LELPSHPMC series vertical high pressure magnetic driver mixer is match for high pressure reactor, which is widely used in the pilot scale high pressure high temperature reaction.
In applications with critical, highly toxic or aggressive media, hermetically sealed drives are inevitable. The permanent magnetic couplings offer a reliable alternative to conventional dynamic seals due to their contactless and leakage-free torque transmission in agitators and mixers.
LELPSHPMC series including MPD and MPB model. The magnetic couplings of MPD type connect with motor directly, which is highly accurate speed display, good appearance, high efficiency rotation, but a higher height. The magnetic couplings of MLB type is connect with motor by belt, which is easy operation, strong durable and high rotating speed.
Applications: Pressure Reactions(Hydrogenation, Amination); Reactions with noxious gases; Manufacture of potent pharmaceuticals; Zero leakage applications.
Features
- 100% Sealing. Zero leakage. Low energy cost.
- Suitable for lab reactor with volume 50~500L
- Full vaccum to 300 bar available; Cooling jacket design for high temperature application.
- Materials of SS316, Hastelloy C, inconel, monel, titanium, PEEK etc. for resistance to various chemicals.

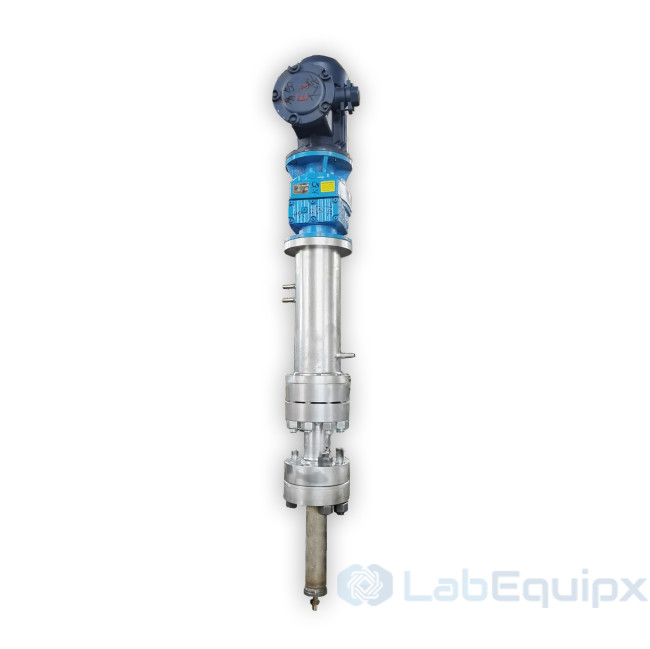

- LELPSHPMC-MPD series (direct drive): Magnetic couplings drive connect with motor directly, which is high accurate speed display, good appearance, high efficiency rotation.
- LELPSHPMC-MPB series (belt drive): Magnetic couplings drive connect with motor by belt, which is easy operation, strong durable and high rotating speed.

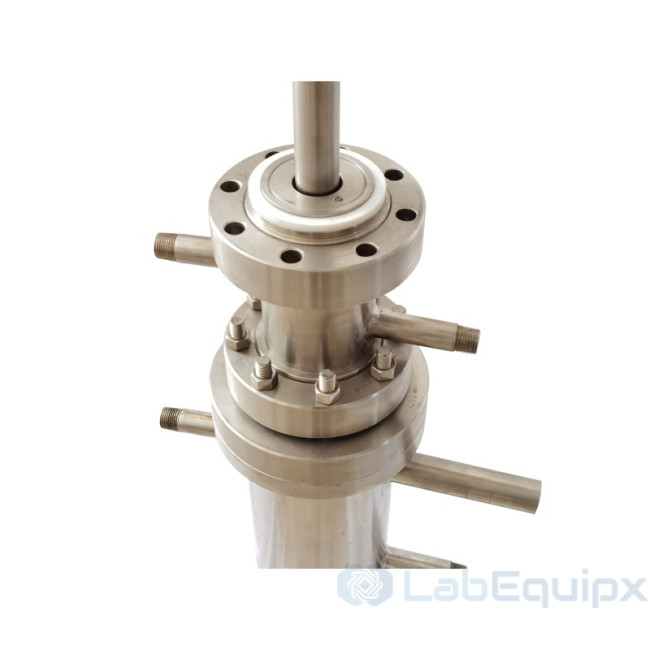

- Flange joint connection.
- Low to high torque magnetic couplings: static seal with no leakage.
Working principle

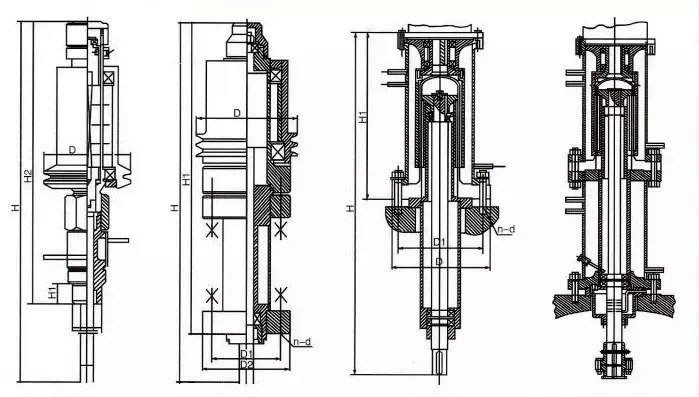

A Magnetic seal comprises of a sealed chamber, which contains a rotating Inner Shaft, is embedded with powerful Inner Magnets.This inner shaft is supported on Upper and Lower Bearings. These are special Bearings, capable of withstanding harsh environments present inside the Reactor. A special barrier filter prevents dust from entering the Bearing Area. The output shaft of Motor/Gearbox assembly is locked on to an Outer Rotor, which is fitted with an Outer Magnet Assembly. When the Motor is switched on, the Outer Rotor Rotates, and magnetic flux causes the inner shaft to rotate synchronously with the Outer Rotor.
Paramenters
Type LELPSHPMC-MPB type LELPSHPMC-MPD type For volumes 10 - 100L 50 - 500L Motor power 180 - 3000 W 1500 - 7500 W Torque range 12 - 200 N-m 20 - 400 N-m Transmission mode Belt drive Direct drive Stirrer speed 0 - 750 rpm Pressure range Full vacuum / 300 bar Temperature range - 40°C to + 350°C Materials Stainless steel, Hastelloy, Titanium ,Nickel, Zirconium, others. Quick Selection
Type Lab scale-ML Pilot scale-MP Industrial scale-MI For volumes 500mL - 10L 10L-500L 1000L - 50m3 Motor power 180-750W 750W-7.5kW 7.5-110kW Torque range 4 - 15 N-m 10 - 400 N-m 400 - 7000 N-m Stirrer speed 0 ~ 1500 rpm 0 ~ 750 rpm 0 ~ 500 rpm Press. range Vacuum~300 bar Vacuum~200 bar Vacuum~200 bar Temp. range - 40°C to + 350°C Materials CS, SS, Hastelloy, Titanium, Nickel, Zirconium, others.
| Model | LELPSHPMC |
| Brand | LabEquipx |
