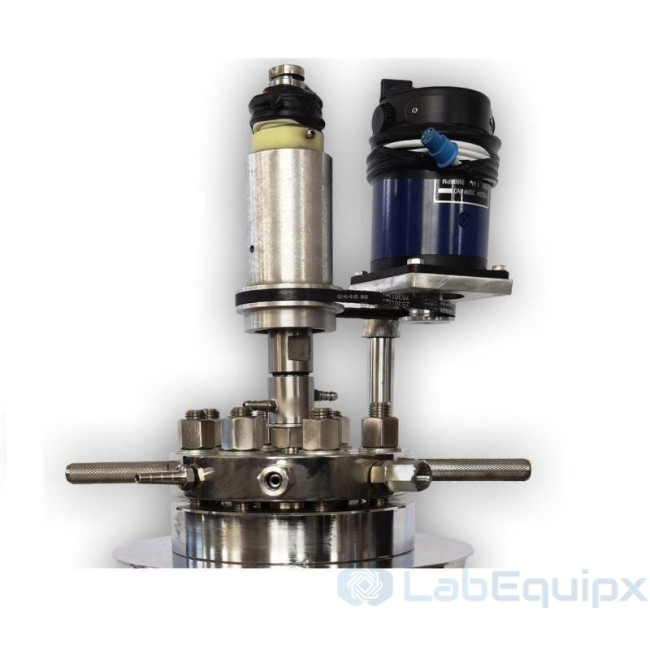

Lab Belt Driven Magnetic Couplings Drive LELBDMCD

Lab Belt Driven Magnetic Couplings Drive LELBDMCD - this series magnetic couplings drive is suitable for the pilot production reactor, including MPD (Direct drive) and MPB (Belt drive) two model type, which is widely for the hydrogenatin, amination, noxious gases, easy explosion application.

Features

100% Sealing. Zero leakage. Low energy cost.
Suitable for industrial reactor with volume 10 L~500 L
Full vaccum to 200 bar available
Cooling jacket design for high temperature application.
Maintenance-free.
Low to high torque available.
Customer-specific solutions.

Technical Specifications

Type	LELBDMCD-MPB type（Belt drive）
For volumes	10L - 200L
Motor power	180W - 3 kW
Torque range	12 - 200 N-m
Stirrer speed	0 - 750 rpm
Pressure range	Full vacuum / 200 bar
Temperature range	- 40°C to + 350°C
Materials	CS, SS, Hastelloy, Titanium, Nickel, Zirconium, others.

Type	LELBDMCD-MPD type（Direct drive）
For volumes	10L - 500L
Motor power	1.5 - 7.5 kW
Torque range	10 - 400 N-m
Stirrer speed	0 - 500 rpm
Pressure range	Full vacuum / 200 bar
Temperature range	- 40°C to + 350°C
Materials	CS, SS, Hastelloy, Titanium, Nickel, Zirconium, others.

Product Details

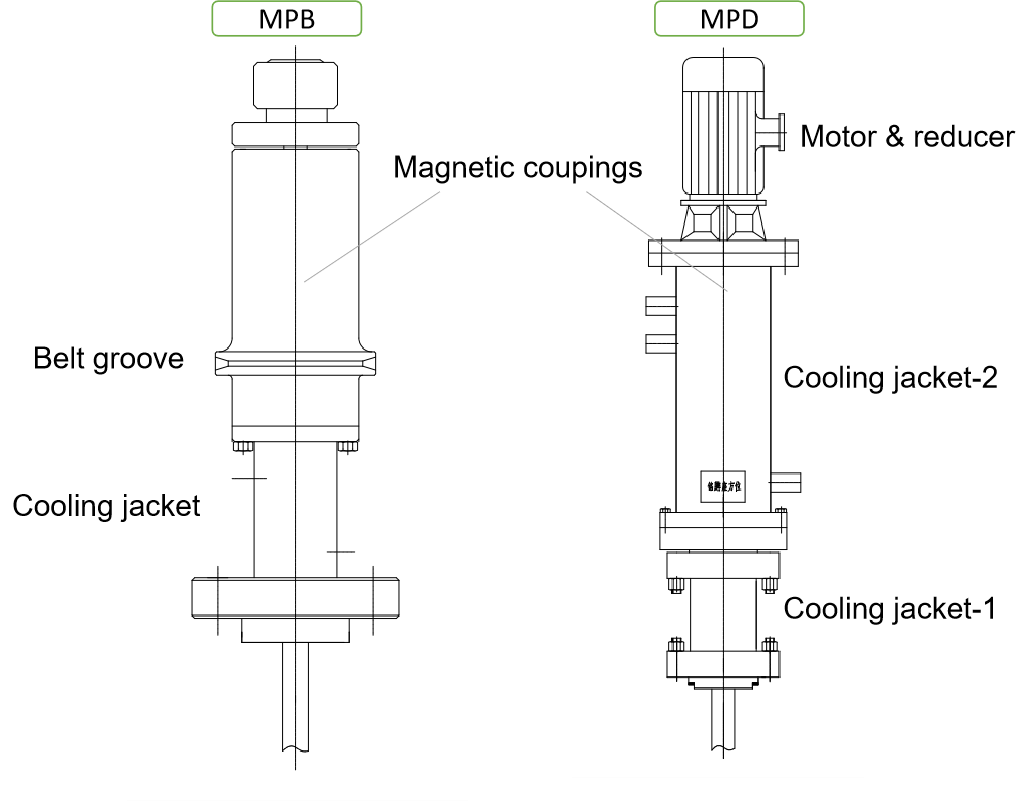

Structure Drawings

Model	LELBDMCD
Brand	LabEquipx
