Versoclave Lab Pressure Reactor LEVLPR

Features

• Pressure reactor - versoclave - interchangeable steel and Hastelloy reaction vessel Fast Action Closure, Reactor Lift
• Laboratory pressure reactor system - for pressure reactions in metal pressure vessels
• Reactor volume: 0.5 to 5.0 liter
• Pressure: -1 (FV) to +60 / 200 bar
• Temperature: -20 °C to +250 °C
• Material: stainless steel, Hastelloy®
• Other materials, pressures & temperatures are available
• This multipurpose pressure reactor system is designed for the use of interchangeable steel pressure vessels. Safety features guarantee safe reactions under pressure.

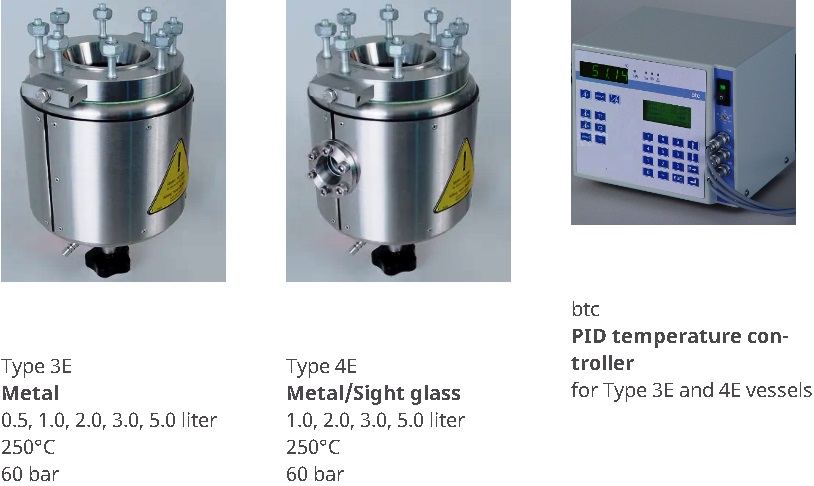

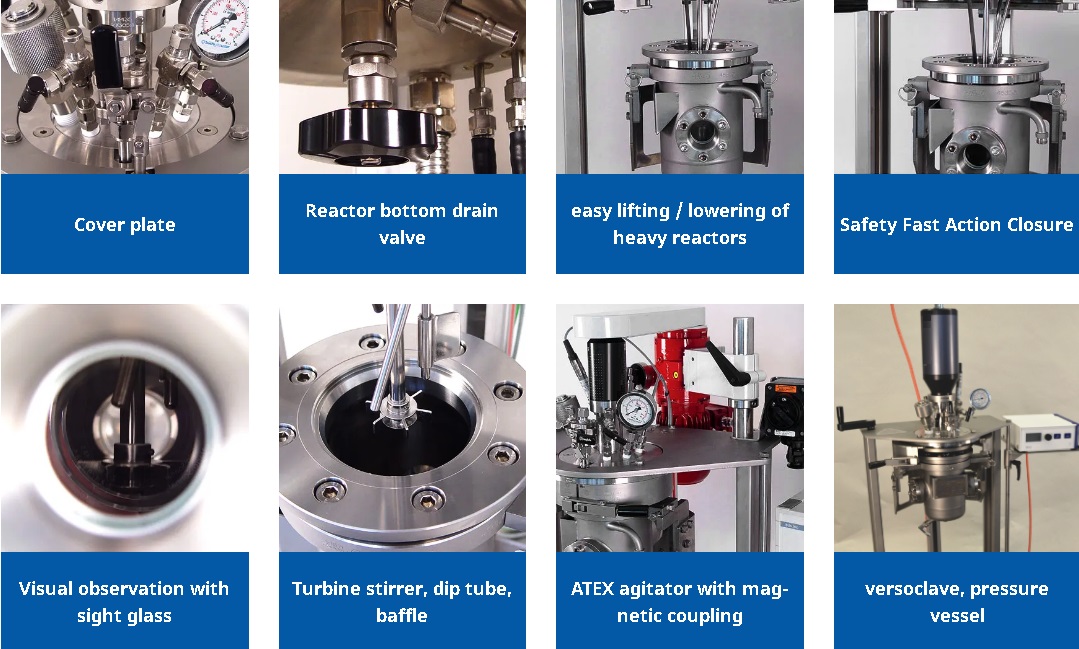

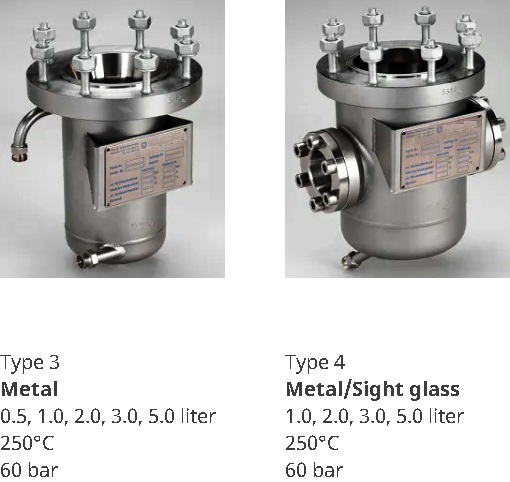

• The stainless steel or Hastelloy® reactors ensure high resistance against acids. Visual process control and monitoring is also possible under high pressure by using steel pressure vessels with sight glasses. Various low to high torque magnetic drives ensure efficient mixing and stirring low to high viscosity process media as well as excellent heat transfer.
• The modular setup of the versoclave system allows changing or upgrading for new tasks at any time.
• With fast action closure and reactor lift it becomes very easy to operate also heavy metal pressure vessels. A wide range of accessories for feeding of liquids, solids, gas and others like catalyst baskets are available – contact us to define the right setup for your specific need.
