    • Uniclave Lab Pressure Reactor LEULPR

    • Features

      • Uniclave - compact, modular glass / metal pressure reactor system
      • Uniclave- stirred lab autoclave interchangeable reaction vessel in glass and metal
      • Reactor volume: 0.5 to 1.0 liter
      • Pressure: -1 (FV) to +60 bar
      • Temperature: - 20 °C to +250 °C
      • Material: Borosilicate glass 3.3, stainless steel
      • This multipurpose pressure reactor system is designed for the use of interchangeable glass and steel pressure vessels. Safety features guarantee safe reactions under pressure.
      • The polycarbonate door of the uniclave housing also allows glass pressure reactors up to 12 bar to be used safely and with unrestricted visibility. The high-torque magnetic stirrer drive offers you optimal control of mixing tasks with the display of speed and torque.
      • The glass reactors ensure high resistance against acids, while allowing visual process control and monitoring.
      • The modular setup of the uniclave system allows changing of the vessel or upgrading of the configuration for new tasks at any time.
      • A wide range of accessories for feeding of liquids, solids, gas and others like catalyst baskets are available.

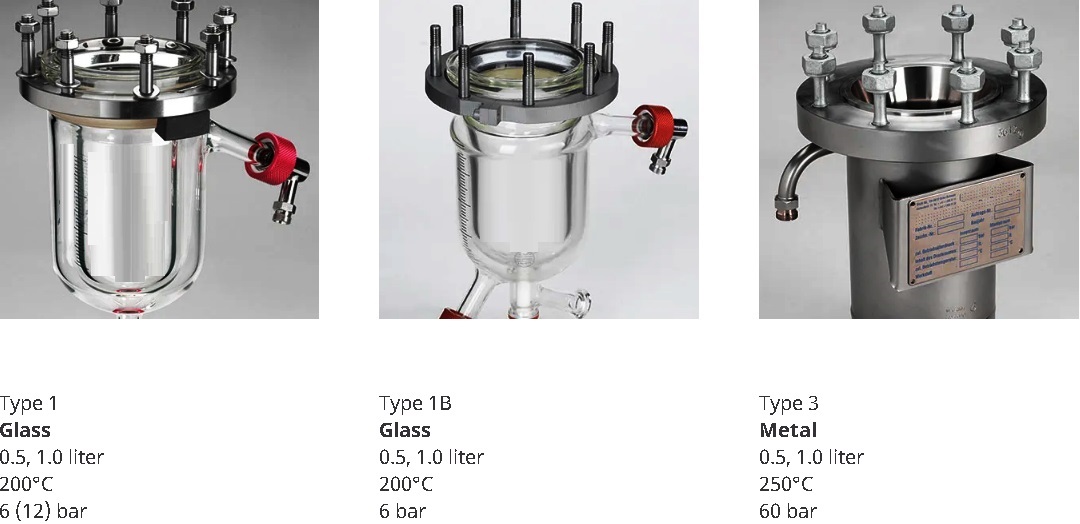

    • The following vessel types are optionally available for the uniclave:

      • Type 1: jacketed glass reactor: 0.5, 1.0 liter, 12 bar / 200 °C
      • Type 1B: jacketed glass reactor with bottom valve: 0.5, 1.0 liter, 6 bar / 200 °C
      • Type 3: jacketed steel reactor with bottom valve: 0.5, 1.0 liter, 60 bar / 250 °C

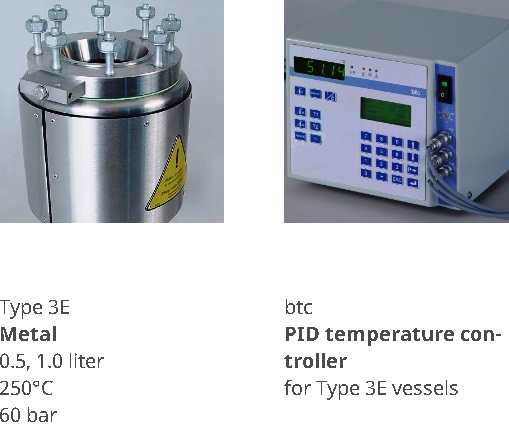

      • Type 3E: vessels with electric heating / water cooling, 60 bar / 250 °C

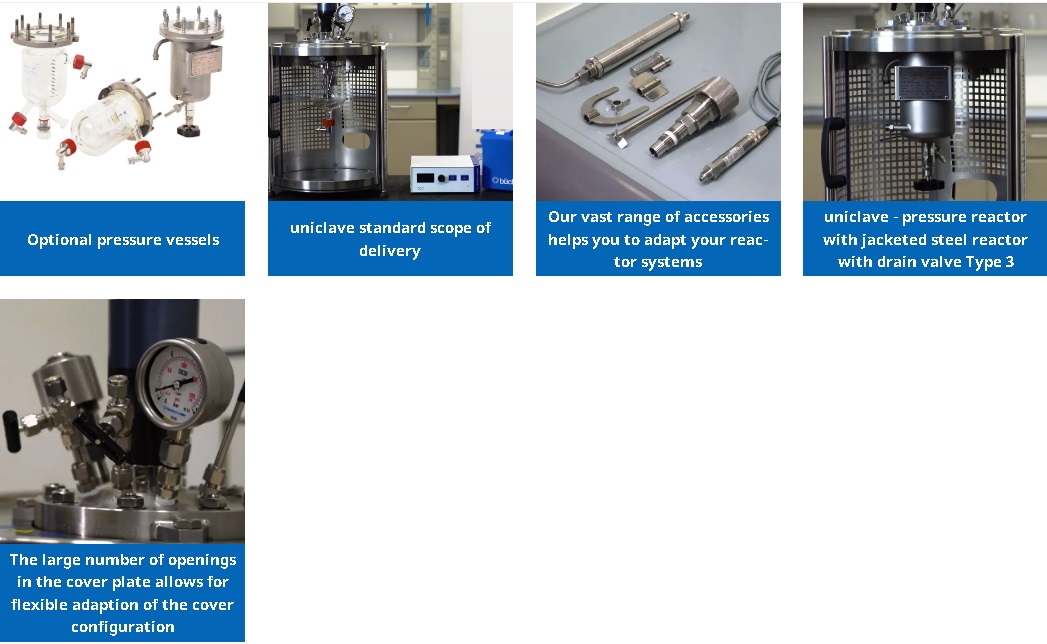

      Standard package

      • Safety housing with polycarbonate sliding door for safe operation of glass pressure vessels
      • Pressure vessel in glass, steel with suitable stirrer shaft, stirrer, baffle, Pt-100, bottom valve depending on vessel type
      • Cover plate with 7 openings and standard setup
      • Swagelok fittings with bursting disc, manometer and 2 valves
      • Stirrer drive «cyclone 075 dc» with integrated high torque magnetic coupling, incl. controller «bcc075»
      • Tools and spare parts

      Standard options

      • Electric heating / water cooling
      • Measure and control systems
      • Wide range of accessories

      Jacketed pressure vessels for heating with thermostat

      Pressure vessels with electric heating and water cooling

      Examples

      Typical applications

      • Hydrogenation reactor
      • Polymerization reactor
      • Synthesis reactor
      • Catalyst testing / evaluation
      • Catalytic reactor
      • Crystallization
      • Chemical research
      • Petrochemical research
      • Corrosion Measurement
      • Upstream research
      • Biomass research
      • Biopolymer research
      • Biorefinery research
      • Biofuels research
      • Zeolite synthesis
      • Nanoparticle synthesis
      • Corrosion testing autoclave
      • Uniclave Lab Pressure Reactor LEULPR
    • Uniclave Lab Pressure Reactor LEULPR
      ModelLEULPR
      BrandLabEquipx
